bulkhead connector

[brad 66]

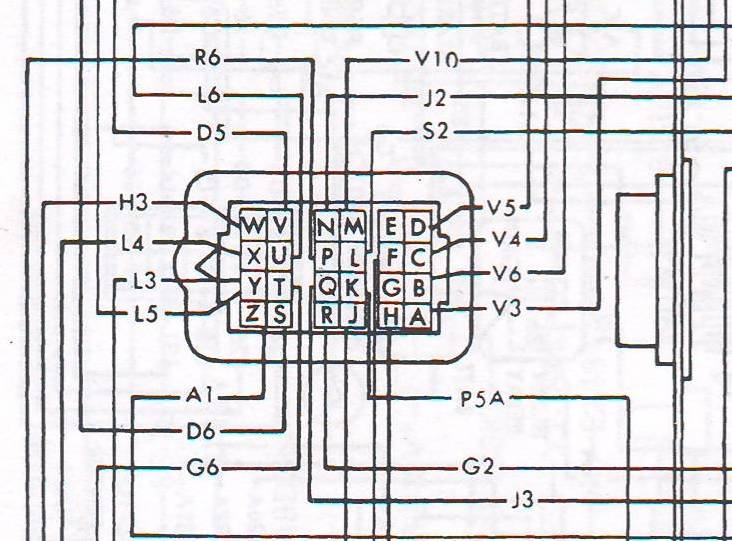

is there a diagram that labels each wire in the connector



[JimCoronette]

http://www.mymopar.com/index.php?pid=27



[Don Frelier]

Yes like Jim pointed out.
But you have to read closely there is also a separate diagram for the headlight controls.
http://www.mymopar.com/downloads/1966/66ChargerA.JPG two halves the other is a second http://www.mymopar.com/downloads/1966/66ChargerB.JPG.
I have one I purchased years ago I could probably scan and get you a clearer image.
Hope this helps.



[Speedbird]

You will need the key for this.
It's here.
I think the factory just reused the 66 prints for the 67 manual.
Can't say for sure.
Let us know.
https://www.forbbodiesonly.com/moparforum/threads/rotating-headlight-relay-modification.135356/



[brad 66]

thanks that helps a lot better than what is in the manual



[Maxrat]

I drew a picture of the three bulkhead connectors, labeled each connection and labeled each wire going to each connection as to its function. This makes it easy to take a quick glance and find the wire you're looking for.
