Column shift Z-Bar bushings

[Robliepse]

Hello Fellow B Body fans, this is my first post and hopefully someone can help. I just purchased my 3rd 1972 Roadrunner , well actually my 2nd RM cause the middle one was a clone, and I need to replace the bushings on the column shifter Z-Bar. I'm working on an almost all original 440 GTX and it still has the original Z-Bar. I've looked all over the internet and on the site here and I cannot find any information on where to find the bushing. I found what looks like a partial Chinese kit on E Bay but I want to fix it once, fix it right and move to the next issue.

Thanks for your input.

Rob



[72RoadrunnerGTX]

Only reproductions that I can find of late;
http://www.ebay.com/itm/like/231194468722?lpid=82



[Robliepse]

Thanks, i don't know if this is the ones I need, I need the ones that go from the lower steering column , then to the z-bar then back to the trans



[72RoadrunnerGTX]

Two original part numbers;
before 2/15/72 3467754
After 2/15/72 3467800
A pair of these bushings are also used with the floor shift linkage system. The link above is a reproduction of this bushing.
Appears 3467800 is still a good number, superseded to a current number anyway, check your local Chrysler Jeep dealer for stock;
http://www.ebay.com/itm/Mopar-3467800-GEARSHIFT-TORQUE-SHAFT-BUSHING-/170993786582



[Robliepse]

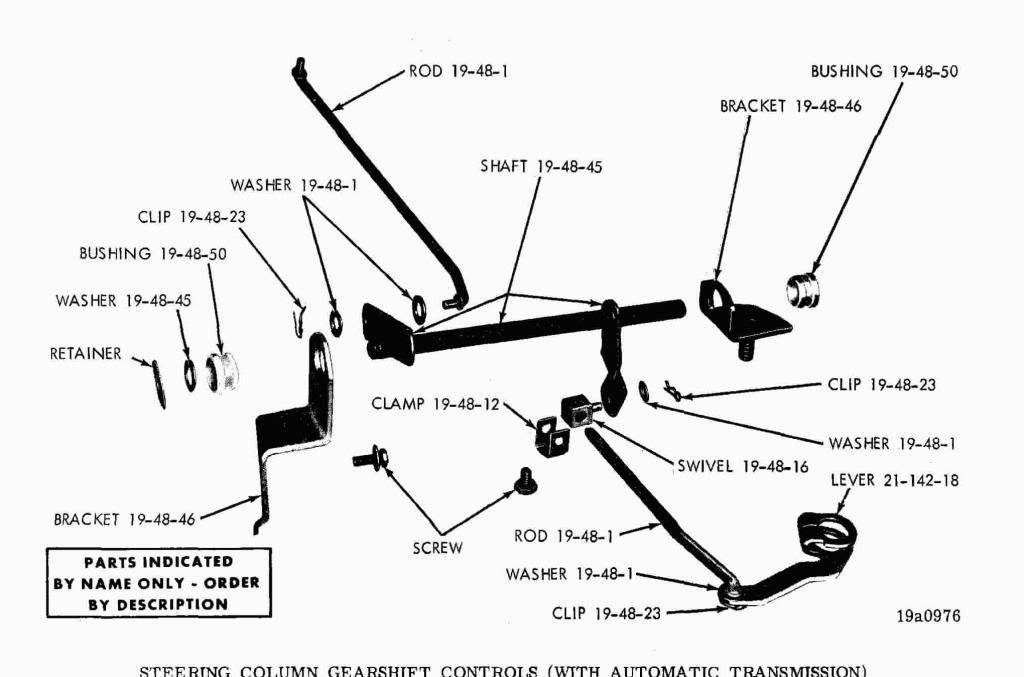

Thanks for the helpful info and I'm getting closer. I think new washers and clip will fix the loose connections at the Z-Bar. After further review my main issue is the busing between the steering column and the rod described above as 19-48-1. Mine is completely missing and the small diameter rod is floating loose in the 1/4" to 1/2" hole on the shift lever on the steering column. I found a reference to this part for a manual column shift on P 21-37 of in the 1972 Chassis Service manual but all it says is Plain washer, bushing and grommet without any details on the busing or grommet.

Rob



[Coronet 14]

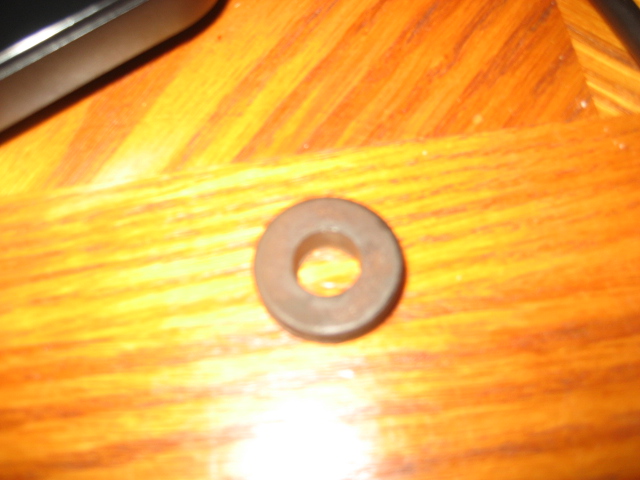

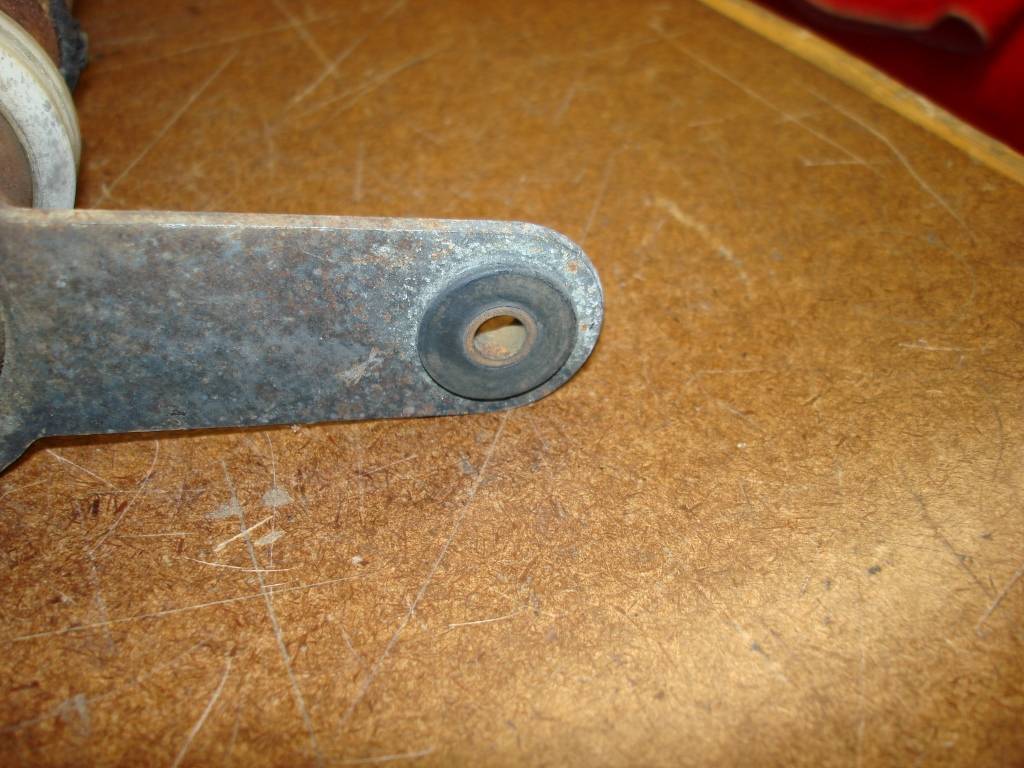

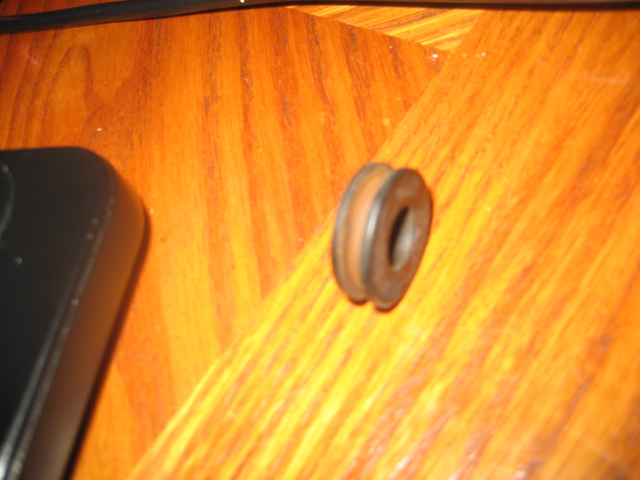

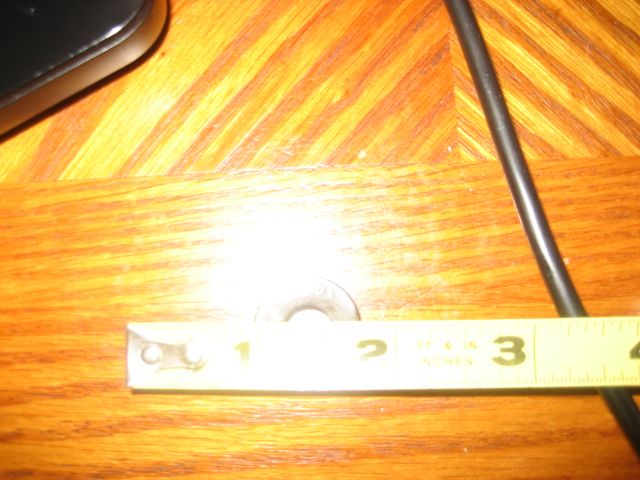

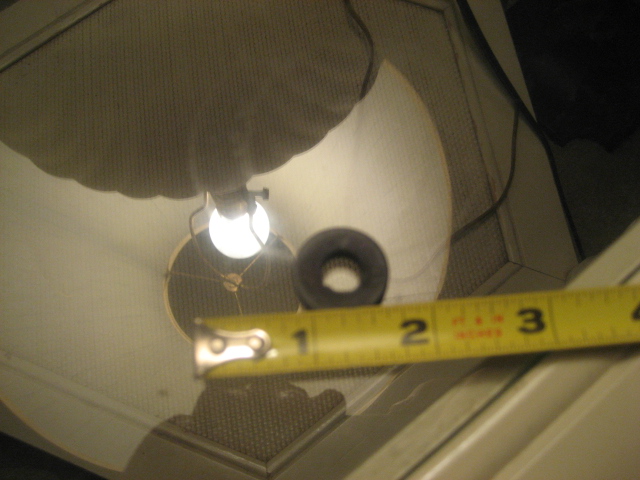

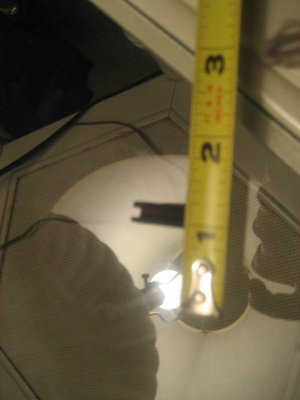

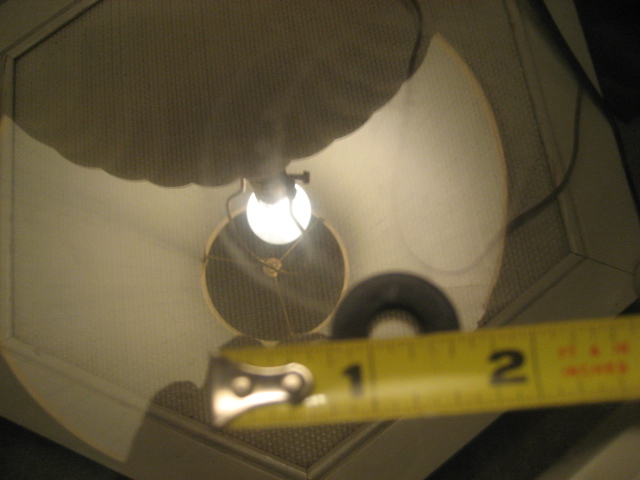

This is the one from my 72 Coronet



[72RoadrunnerGTX]

Check here under part number 1553305;
http://www.nosgm.com/query.asp?section=SUSPENSION&year=0&make=Mopar+E+Body
Brass bushing is 1553304;



[Robliepse]

Unbelievable

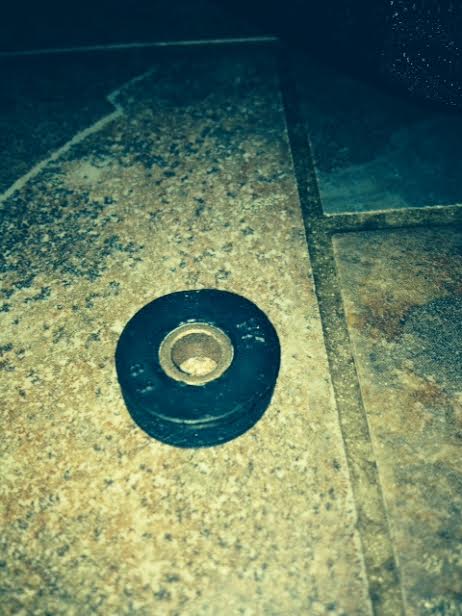

Thanks 72RoadrunnerGTX!!!!! thanks to your part number information I called my local dodge dealer and gave them the 2 part numbers. They didn't have the parts but told me the nationwide system said that a dealer in south GA had the grommet and a dealer in NC had the bushing and gave me both dealers phone numbers. After a couple of calls I bought both NOS parts directly from the dealers for less than $20 including shipping. 72RoadrunnerGTX Rocks! This website Rocks and Chrysler Dodge rocks for still having these parts. One of the part's label said it had been in inventory since 1995.
