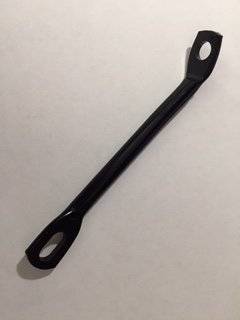

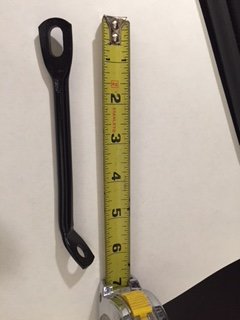

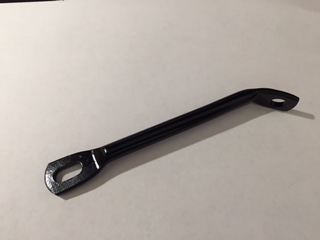

I was installing a new under dash wiring harness which went very well, with one small problem. I took out some bracing pieces to detail them and I can't remember where this one goes, can't find it in the 1969 Service Manual. The car is a 1969 Roadrunner, anyone got a picture of where this brace goes?



[conv67bdere]

Think that it goes from the heater box to the firewall . . . or the heater box to the dash - to support the heater box . . . I'll check my pics

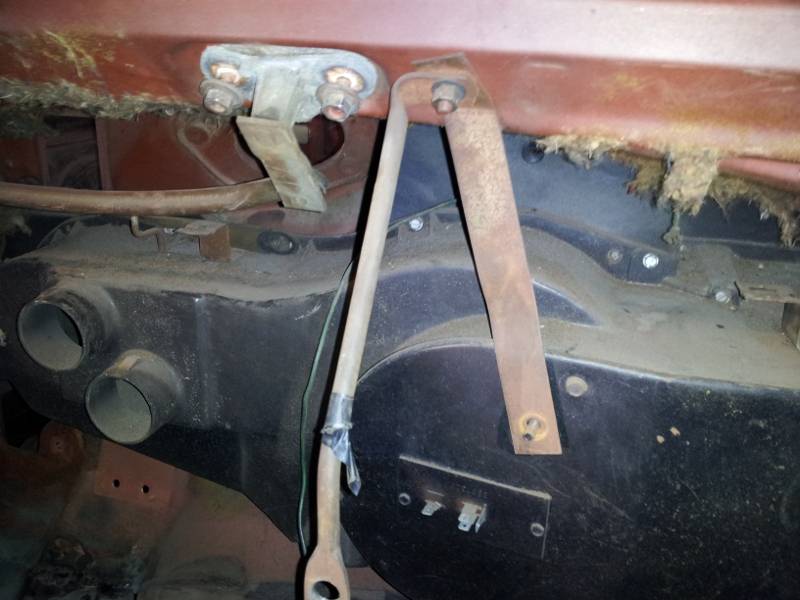

Wrong . . . sorry . . . here's a pic ( this is a Belvedere - hope it is similar in all Mopars )

The flat stock is what I recalled - that bracket looks like it goes from the firewall to the bottom of the dash for added support . . . Hope this helps . . .



[texas69bee]

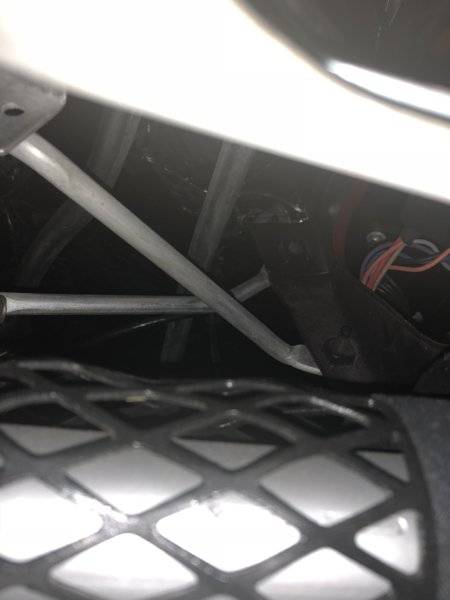

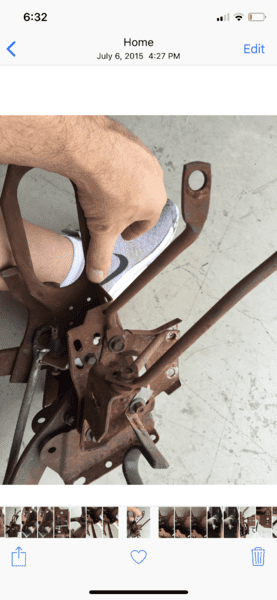

Pedal assembly to dash. Just above steering column



[darc1722]

View attachment 641970 View attachment 641971
Pedal assembly to dash. Just above steering column

Perfect!!! Thanks again!!!!



[darc1722]

View attachment 641970 View attachment 641971
Pedal assembly to dash. Just above steering column

Thanks again!!!!



[texas69bee]

No problem
