dual quad quiz.

[hacksaw]

in the early 60's mopar had a tall deck BB with dual quads and was painted gold..... what was it??



[Dave6T4]

Might have been 1960-61. Chrysler called some of their engines "Golden Lion".



[hacksaw]

cool beans. intake and both carbs came with the 1965 413 i got today.... but don't remember in line 4's on one.



[Fran Blacker]

cool beans. intake and both carbs came with the 1965 413 i got today.... but don't remember in line 4's on one.

Pictures?Letter Series had those on them adjustable rockers.



[Dave6T4]

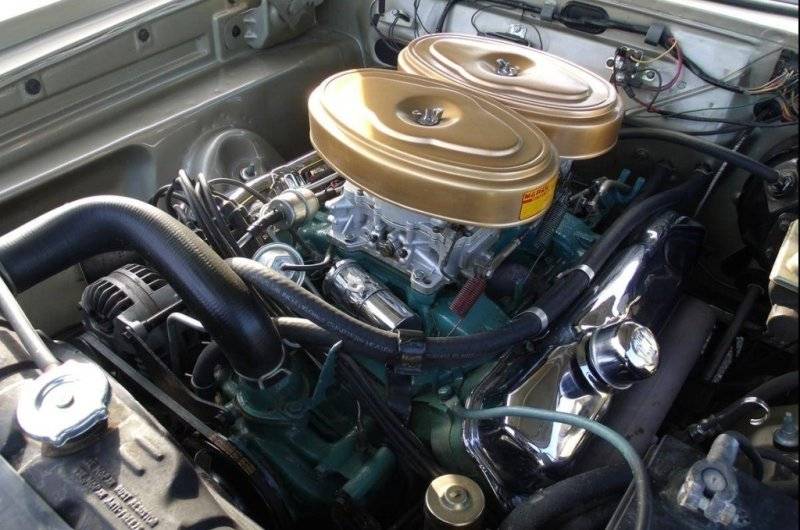

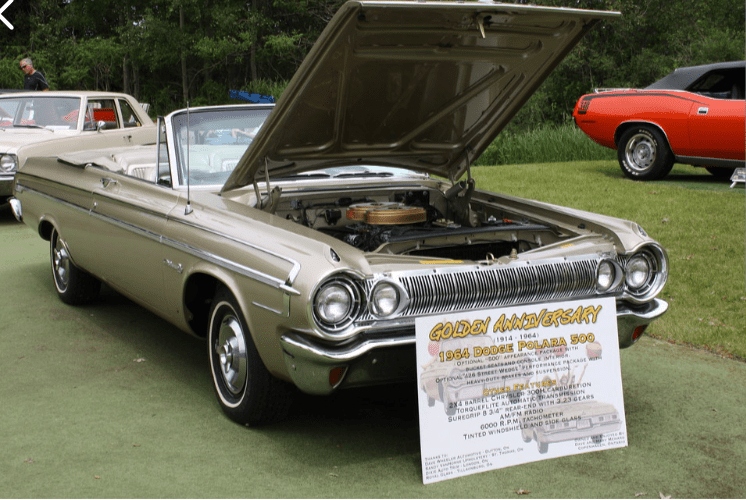

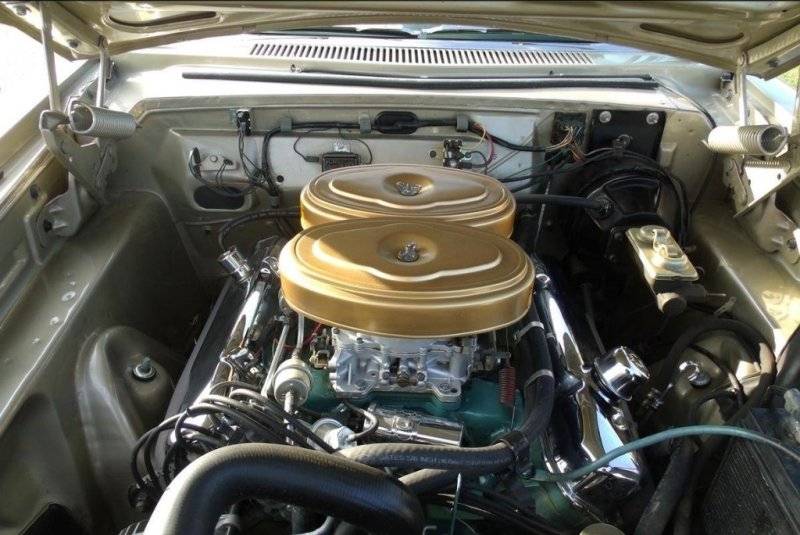

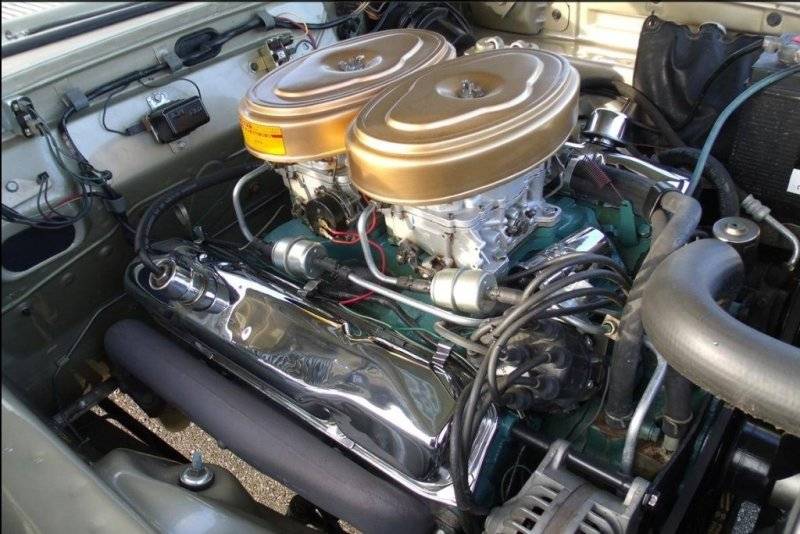

Here is the set-up I had on my 1964 426 Street Wedge. It came off 1962 Chrysler 300H. To make it work in a B-body, you have to adapt the carb linkage to pull back from above throttle shaft, rather than push forward from below, as Chrysler used.



[hacksaw]

Here is the set-up I had on my 1964 426 Street Wedge. It came off 1962 Chrysler 300H. To make it work in a B-body, you have to adapt the carb linkage to pull back from above throttle shaft, rather than push forward from below, as Chrysler used.

View attachment 1688119

View attachment 1688120

View attachment 1688121

View attachment 1688122

ok .. the football ones .... thanks



[hacksaw]

Pictures?Letter Series had those on them adjustable rockers.

sure.... i got to chill for a bit. 12 hrs of driving my 1 ton beat me up a bit.... good news tho. both carbs have the tags on them.



[Budnicks]

1958 350cid (edited not tall-as a member so eloquently corrected me again)
Low-deck wedge



[Budnicks]

61 383 RB tall-deck 2x4bbl



[Budnicks]

63 (?) 383 (*413, not a 383) RB tall-deck Sonic-ram
(edited; it's actually a 390hp 413cid 6.8ltr Chrysler)



[Budnicks]

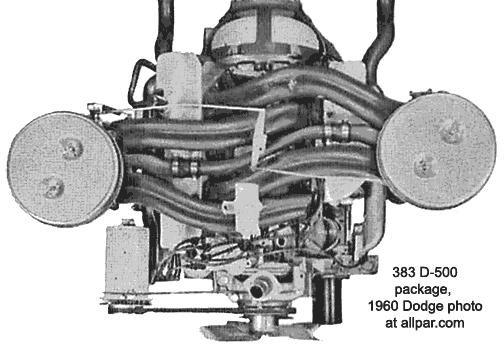

383 RB tall-deck sonic-ram



[Budnicks]

71 Chrysler Marine 383 B Low-deck 2x4bbl not gold thou



[Budnicks]

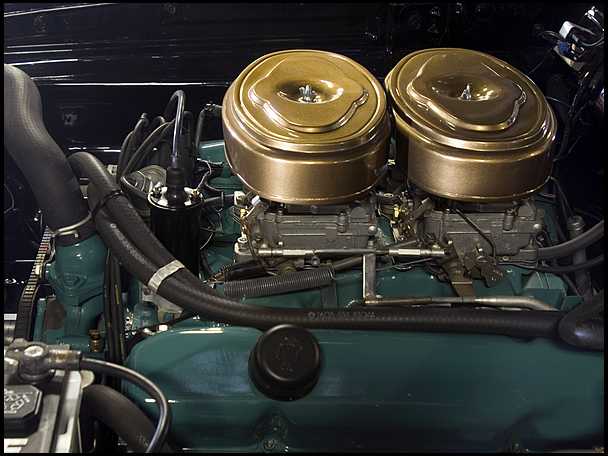

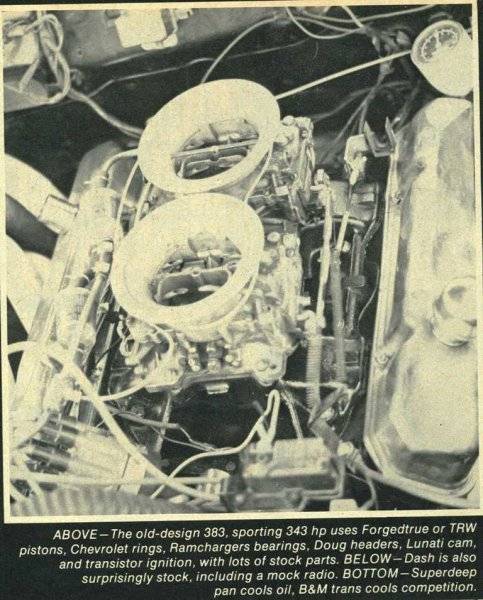

early RB 383
drag car record holder (I think may be the Turquoise color)

another



[Budnicks]

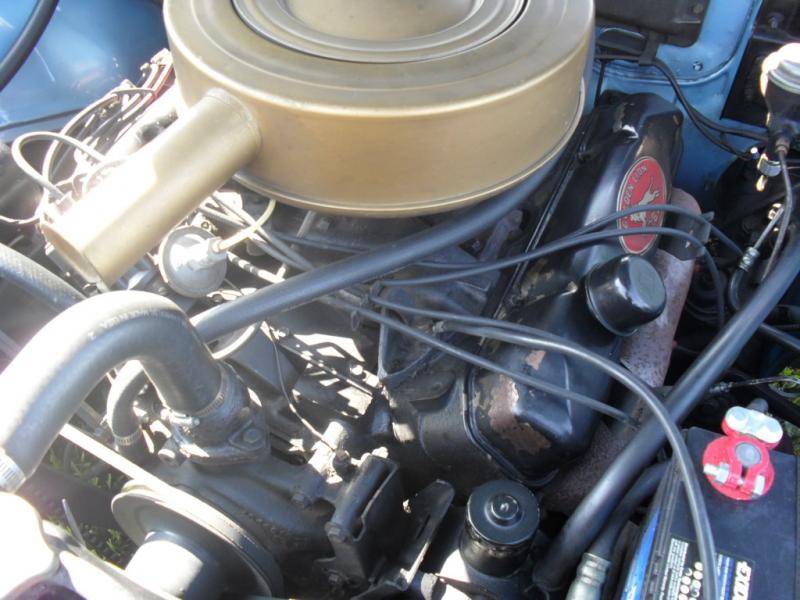

383 Golden Lion RB



[Dave6T4]

361 (1st low deck BB) super red ram (?)

View attachment 1688131

Engine cross section is mis-labelled. Looks to be A-series 318 by oil filter placement and oil pan surface at crankshaft centreline.



[Budnicks]

Engine cross section is mis-labelled. Looks to be A-series 318 by oil filter placement and oil pan surface at crankshaft centreline.

yeah your probably correct
I'm not up on the early stuff,
I had that photo saved from searches a long time ago

didn't pay attention to the oil pan/filter location at all



[Dave6T4]

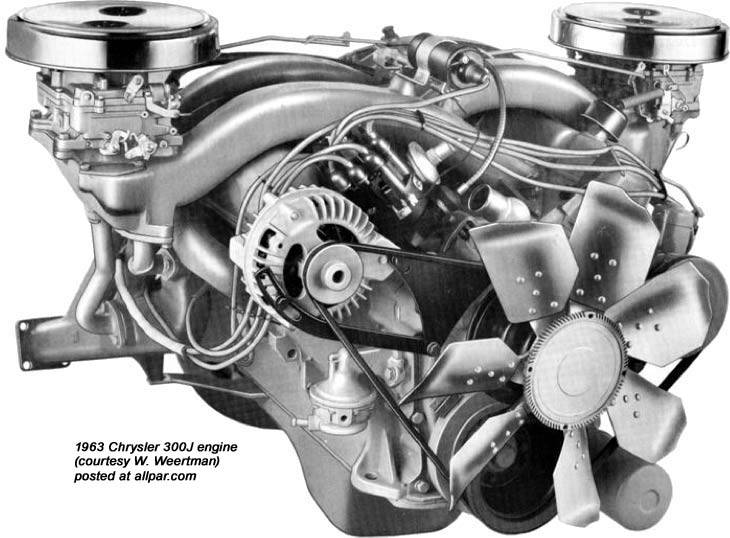

63 (?) 383 RB tall-deck Sonic-ram
View attachment 1688129

This would be a 413. Tall deck 383 used only 1959-1960 in some Chryslers and DeSotos. Never as High Performance motor.



[Dave6T4]

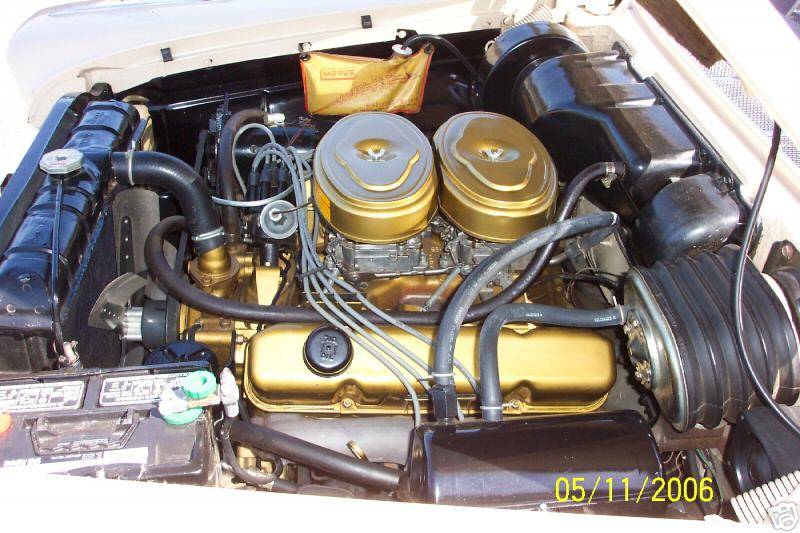

1958 350cid tall-deck wedge

View attachment 1688126

350 was a short deck B-block, like 361, 383, 400. Chevy boys can't believe that Chrysler had a 350 before they did. With a shorter stroke; 3.375" vs. 3.48".



[Budnicks]

This would be a 413. Tall deck 383 used only 1959-1960 in some Chryslers and DeSotos. Never as High Performance motor.

What can I say it was directly from Allpar.com

need to go & correct them



[Budnicks]

350 was a short deck B-block, like 361, 383, 400.

well alrighty then

didn't notice the typo
