Embarrassing 727 issue

['67Satellite]

Some may remember a few months ago i started my trusty 440 and it was making an aweful noise. I pulled the trans apart to make sure it wasnt the issue. Found nothing wrong, and now cant seem to get it back together right.
I pulled the pump, the valve body and the tail. When i bolted everything back together, niether input or output shaft will spin in any gear. Ill put up pictures in a bit.

Anybody have any pointers? Thanks gang.



[68GTX440]

Some may remember a few months ago i started my trusty 440 and it was making an aweful noise. I pulled the trans apart to make sure it wasnt the issue. Found nothing wrong, and now cant seem to get it back together right.
I pulled the pump, the valve body and the tail. When i bolted everything back together, niether input or output shaft will spin in any gear. Ill put up pictures in a bit.

Anybody have any pointers? Thanks gang.

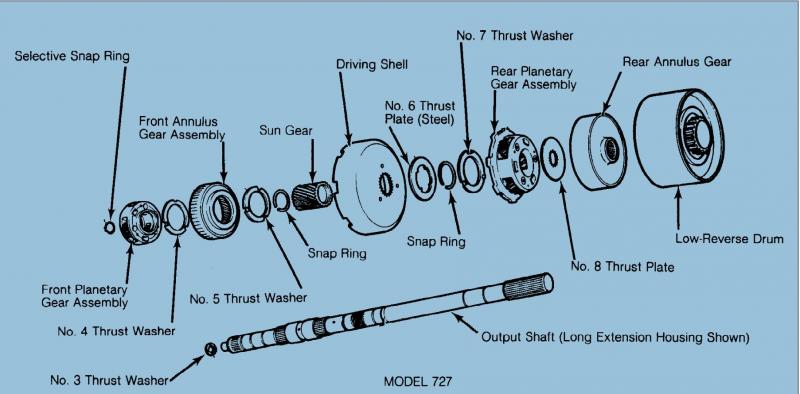

You may have a washer in the wrong place.







Did you remove the bearing completely? May put back on backwards?



[Hemi Rebel]

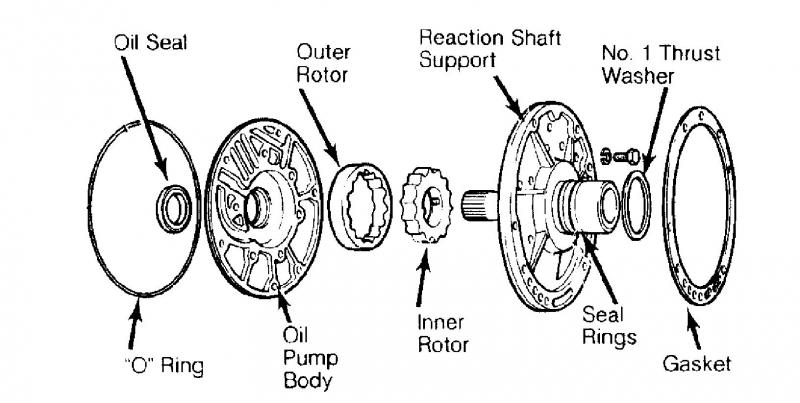

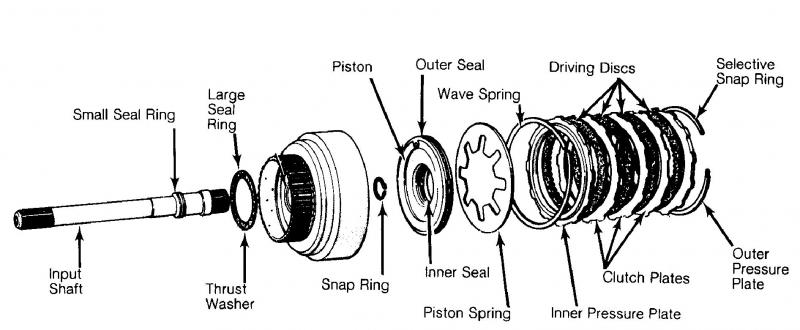

Pull the pump and make sure the forward clutch and direct clutch are seated all the way. If they aren't, when you bolt the pump down it smashes all together



[68GTX440]

Yes I forgot to add your hubs may not be in the clutches all the way and cause this.



[emore]

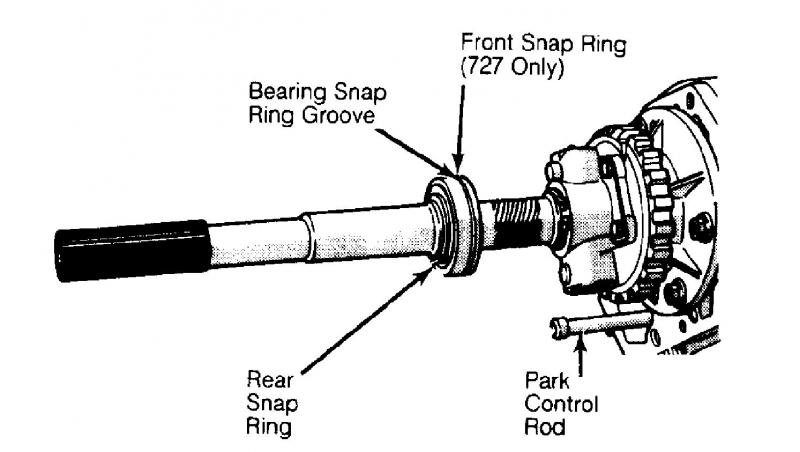

Also make sure when tailshaft is installed, that the bearing is fully seated and its snap-ring is all the way in the groove.



['67Satellite]

Pulled the pump back off again and installed it for the last time. I must have been careless the first time and squished some of the hubs/clutches together. Seem to be fine now, the tailshaft and output section are all in order as well. Hopefully i can get it back behind the 440 before too long.

Thanks a lot guys.
