Engine wiring harness

[Bee383]

I have a 69 super bee and my fusible link on the engine harness fried (my fault - long story)got a new link and new 8 pin connector.all other wires are fine.in trying to get the pins out of the connector I have had to replace some of them as I have broken a few.does anyone have a picture of this connector with proper wire placement?btw-it's the middle of the three connectors.i think I may have swapped two of them around.thanks for any help.david



[440roadrunner]

You need a shop manual my friend, and you can download one fer free over at FABO

The thread:

http://www.forabodiesonly.com/mopar/showthread.php?t=132309&highlight=manual,+download

Some of the links near the top went bad, were fixed further down the thread

The linky-----"Dart/ Charger" (and Coronet) manual

http://www.abodyjoe.com/pictures/Mis...e manual.pdf

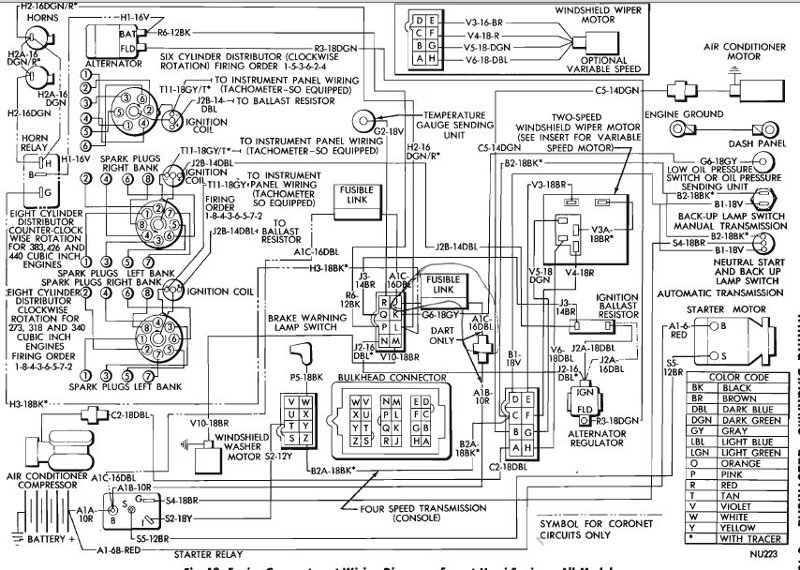

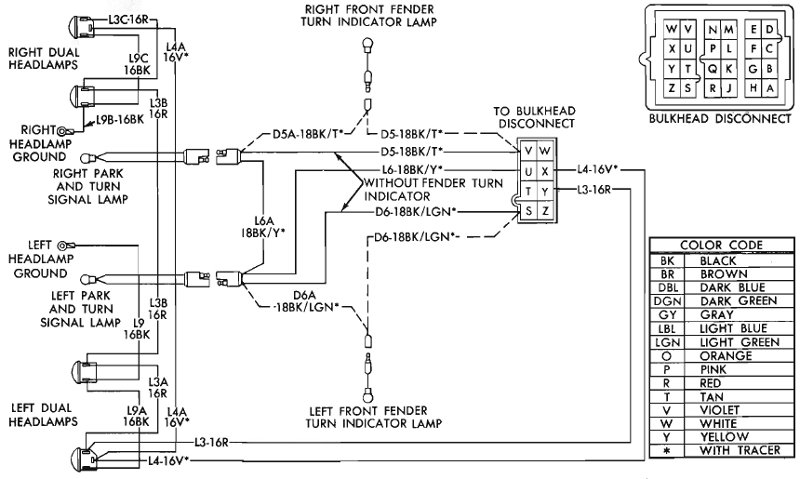

Wiring diagrams start on page 8-96 you need 8-100 and 8-101



[Bee383]

Wiring harness

Thank you for the help roadrunner.i think this will help me figure this mess I've got myself into!



[440roadrunner]

You're welcome. If you get hung up post back
