High beam light in the instrument cluster not working.

[paladin06]

I put all new bulbs in my instrument cluster. My high beams work but I do not get the high beam light in the cluster. Any ideas? I don't see anything about a HB circuit in my shop manual.



[kiwigtx]

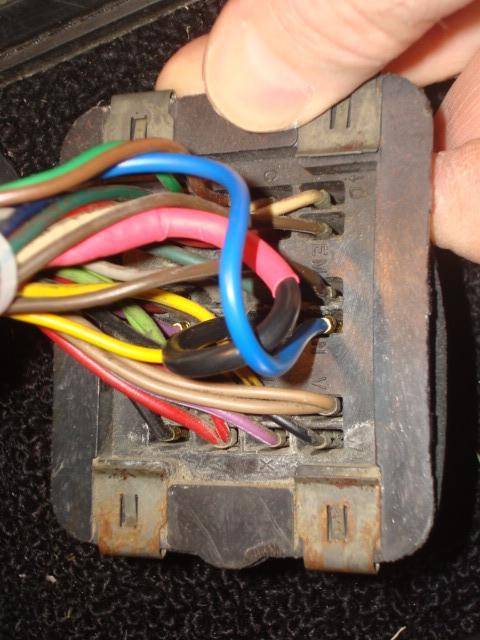

Having just checked some photo's of my dash, you may want to check the actual lampholder to see that both contacts for the supply and ground of the lamp are in good order. The supply to the lamp comes direct from bulkhead connector - joined there to the cable going to your foot switch. Look at Terminal "Y" - 3rd from the left/top row - two x reds.

I would suspect a faulty lampholder behind the dash first up.



[paladin06]

Thanks.. I'll check both..

Having just checked some photo's of my dash, you may want to check the actual lampholder to see that both contacts for the supply and ground of the lamp are in good order. The supply to the lamp comes direct from bulkhead connector - joined there to the cable going to your foot switch. Look at Terminal "Y" - 3rd from the left/top row - two x reds.

I would suspect a faulty lampholder behind the dash first up.



[paladin06]

Well, it was the bulb holder. Pulled it out, rotated 180, reinstalled, BINGO!!

Thanks
