Info on 1970 Road Runner Instrument Harness Connectors and Devices

[Dragon Slayer]

Looking for information on some unused connectors and where certain relays/buzzers would be located on a 70 Roadrunner Coupe.

1. I can see the 3 position connector for the Key/headlight on buzzer, but there is also a 2 position connector with 2 Red and 2 Yellow wires that probably should be the "Headlight warning Buzzer" (shows a jumper with diode on the wiring diagram). What does this look like and is it available? Are both needed for the buzzer circuit to function? Didn't find any on a Google/Ebay search.

2. Where would the "Time Delay" relay be located and what would the harness connector look like for it (for the ignition key light delay)?

3. Where would "Headlight Delay" be located?

Where these all standard on a 70 RR or was a specific option required?

Thanks, G



[PlumcrazyRR]

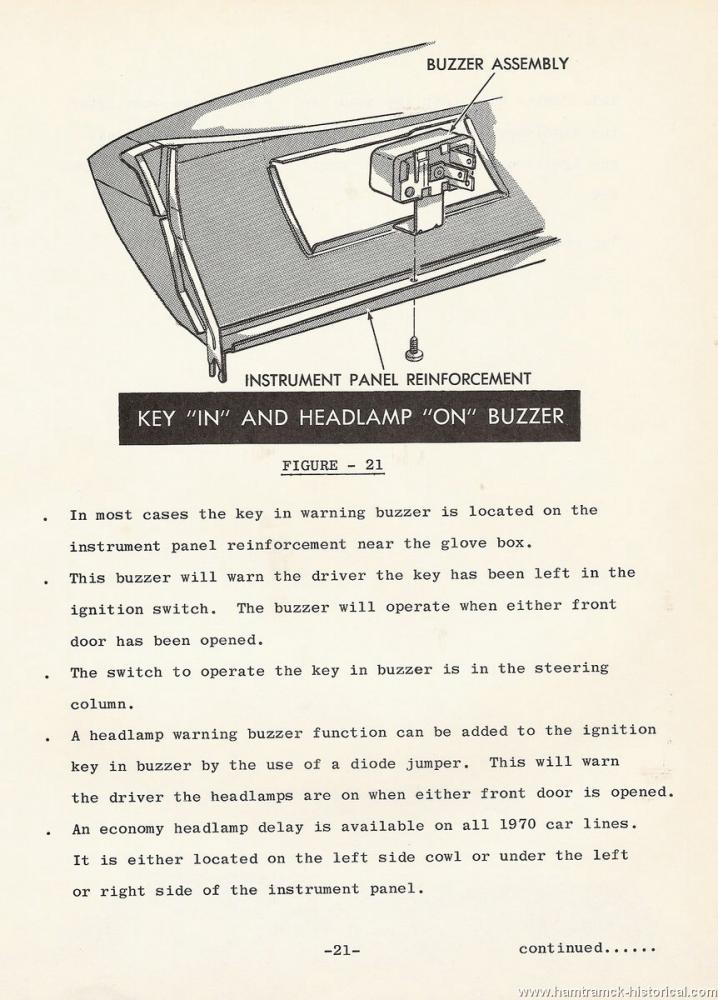

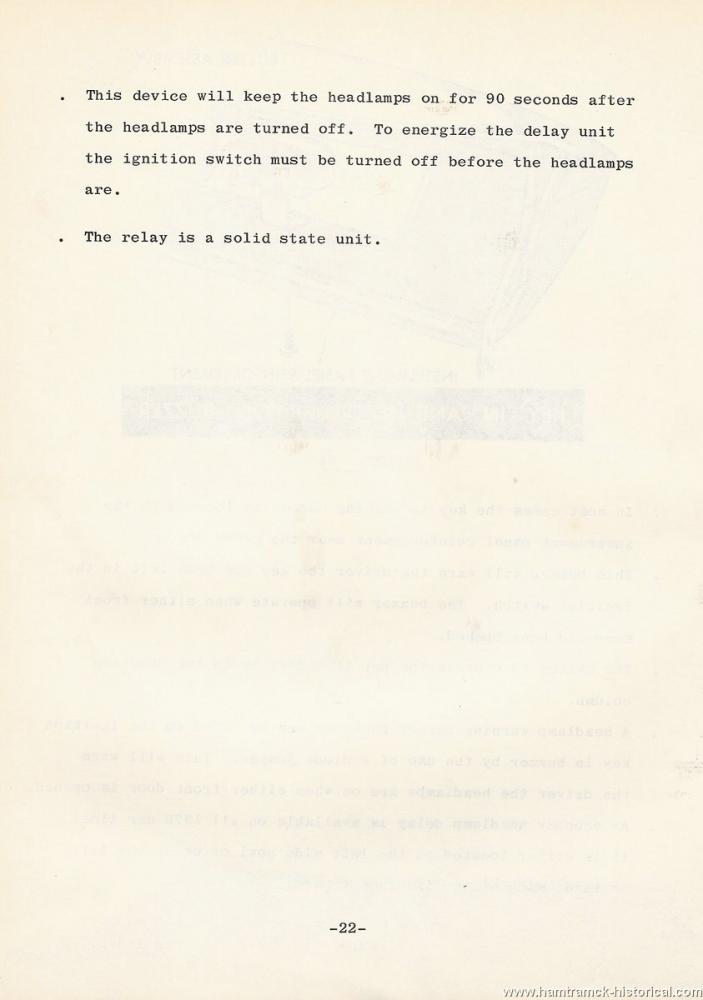

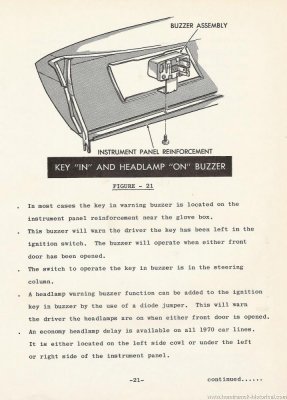

I had these two pics saved on my computer for some reason. Can't remember if it was because of research of my own or helping someone out, but it looks like it may be applicable and help a little.



[Dragon Slayer]

Thank you. Any idea what the jumper looks like? I was tracing the service manual wiring, and the delay would shut off the headlights, but it would not shut off the parking lights the way the service manual has it wired. It only cuts power to headlights. The switch would keep power to the parking light wires. Kind of weird. G
