K-member notch pic request

[HorryMorry]

Hey guys I'm looking for a pic of the notch that is required to install a Miloden oil pan http://www.milodon.com/oil-pans/street-oil-pans-chrys.asp in a 1964 dodge 440 with a 440 block. I just want to make sure I notch it correctly, based on the info from engine-swaps.com and the miloden sites, before I send everything to paint/body. As always any help is appreciated!



[TheGodfather]

K-Member Notch

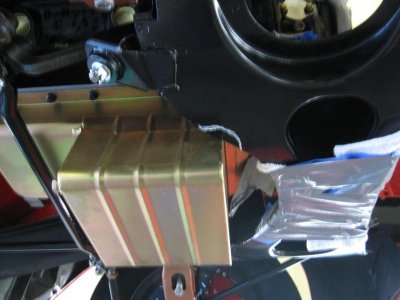

I couldn't find any close ups of the notch...This will give you an idea of about where it's located. Hope it helps....If I find a better picture I'll send it to you.



[TheGodfather]

K-Member Notch

Hey guys I'm looking for a pic of the notch that is required to install a Miloden oil pan http://www.milodon.com/oil-pans/street-oil-pans-chrys.asp in a 1964 dodge 440 with a 440 block. I just want to make sure I notch it correctly, based on the info from engine-swaps.com and the miloden sites, before I send everything to paint/body. As always any help is appreciated!

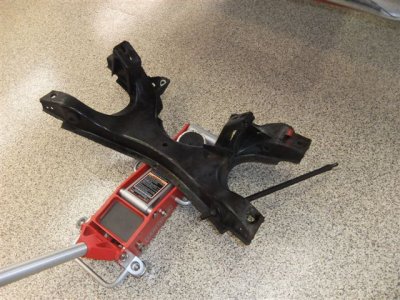

Here's another picture before the notch was cut in.



[HorryMorry]

Thanks Godfather, so the notch only goes on passenger side and it looks like you grind it down almost to the meat of the k-member only on the flange?



[HitIt]

Godfather posted pretty much all you need to know, although this bit of info helped me:

OILPANS: There are a few 4 quart pans that fit, i.e. the “971” pan as well as the original ‘62-65 B-Body B/RB pan.

If you want an extra capacity pan we recommend the following:

Milodon 7 qt. low profile #30930 with 1/2” pick up # 18335
Mopar Performance 8 qt. # P5007816 with 1/2” pick up #P5007818

Both pans require a notch in the k-member lip — see photo
to right.

For the Milodon pan, measure from the idler arm
bracket inward — make a mark at 2 3/4” and 5 3/4.“ Grind out
a notch approximately 5/8” deep as shown.

For the Mopar Performance pan, make your marks at 4” and 7” from the
idler arm bracket and grind notch approximately 1/2” deep.

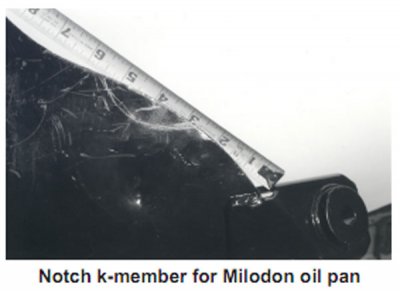

Notch k-member for Milodon oil pan

http://www.engine-swaps.com/Pages/Instructions/Early_B_Hemi.pdf



[QTR MILE]

Great info as I needed that info as well.



[HorryMorry]

Godfather posted pretty much all you need to know

Understood, I just wanted to be really sure of what I was doing before I started hacking away on my K-Member.

although this bit of info helped me:

OILPANS: There are a few 4 quart pans that fit, i.e. the “971” pan as well as the original ‘62-65 B-Body B/RB pan.

If you want an extra capacity pan we recommend the following:

Milodon 7 qt. low profile #30930 with 1/2” pick up # 18335
Mopar Performance 8 qt. # P5007816 with 1/2” pick up #P5007818

Both pans require a notch in the k-member lip — see photo
to right.

For the Milodon pan, measure from the idler arm
bracket inward — make a mark at 2 3/4” and 5 3/4.“ Grind out
a notch approximately 5/8” deep as shown.

For the Mopar Performance pan, make your marks at 4” and 7” from the
idler arm bracket and grind notch approximately 1/2” deep.
Notch k-member for Milodon oil pan

http://www.engine-swaps.com/Pages/In...rly_B_Hemi.pdf

Thanks for the info! I appreciate all the help as always FBBO!!



[TheGodfather]

K-Member Notch

Thanks Godfather, so the notch only goes on passenger side and it looks like you grind it down almost to the meat of the k-member only on the flange?

You're very welcome!! The notch is usually done only on the passenger side and Yes you do cut it back about 1" deep x 2" wide or so to the steel support. Some guys weld the exposed seam to to make sure the K-Frame integrity is maintained but I'm not sure that's necessary.
