Let's play identify the headlight relay ??

6pktgo

FBBO Gold Member
FBBO Gold Member
Local time
7:22 PM
Joined
Jan 30, 2010
Messages
1,939
Reaction score
609
Location
South Central Ontario

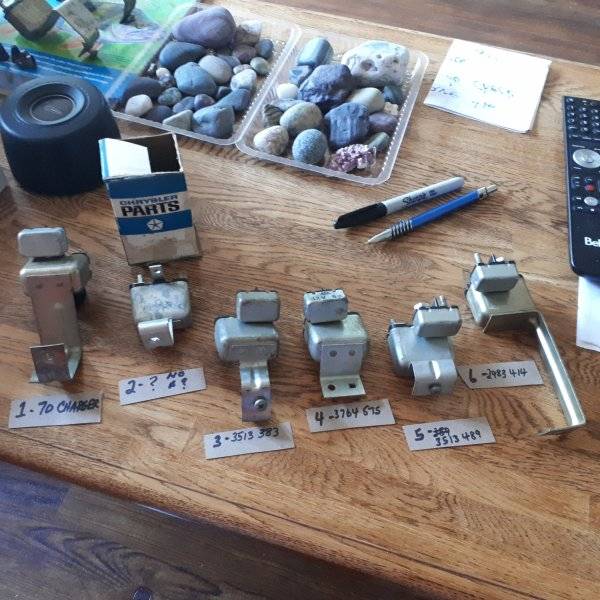

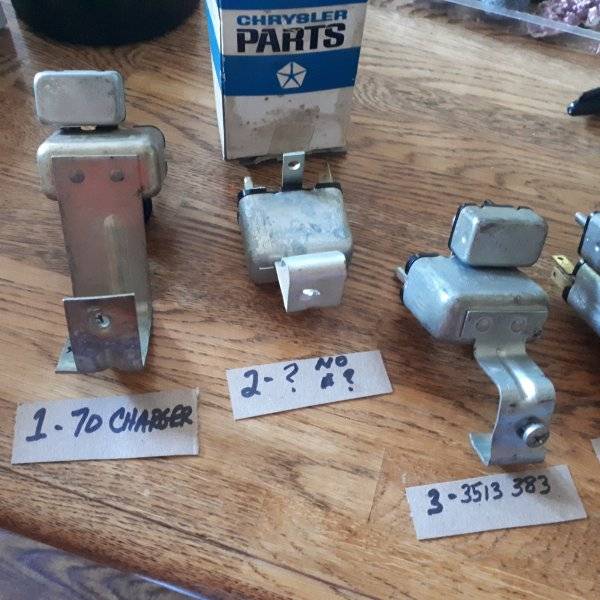

I have gathered these over the last 30 + years , # 1 is 70 Charger 2983 605, & go !!!










Last edited:

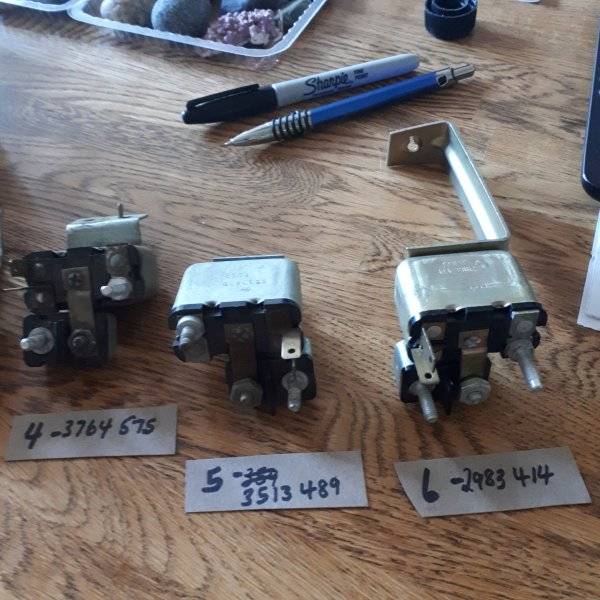

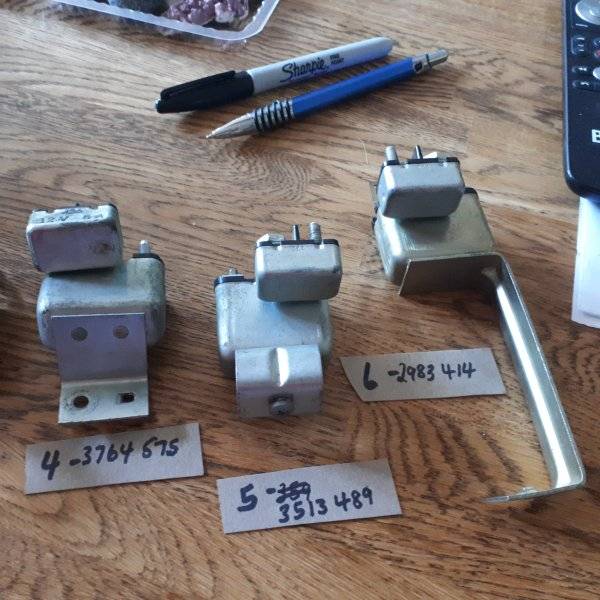

4-3764575 74-78 C-Body headlamp door relay.
5-3513489 71-72 Charger headlamp door relay.
6-2983414 69-70 Imperial. 69 Chrysler 300 headlamp door relay.

I'd like to play, but my head hurts too much, because of my '67 Belvedere

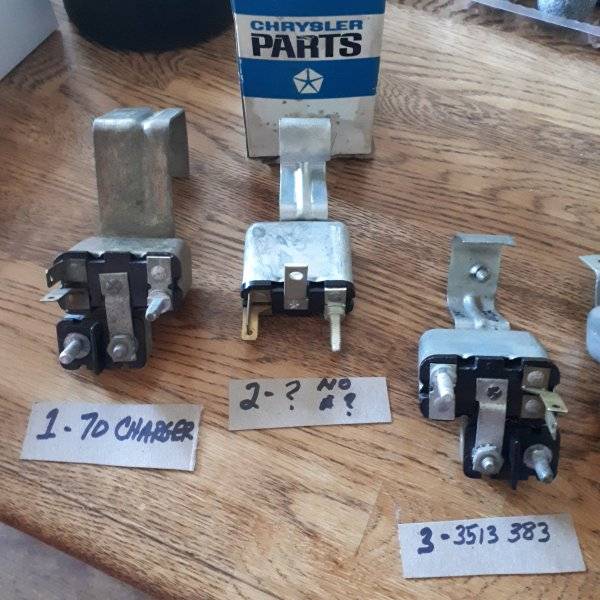

Thanks for the replies, Anyone want to take a shot at #2 ? It has no numbers, I bought it at least 25 years ago because it was nos.

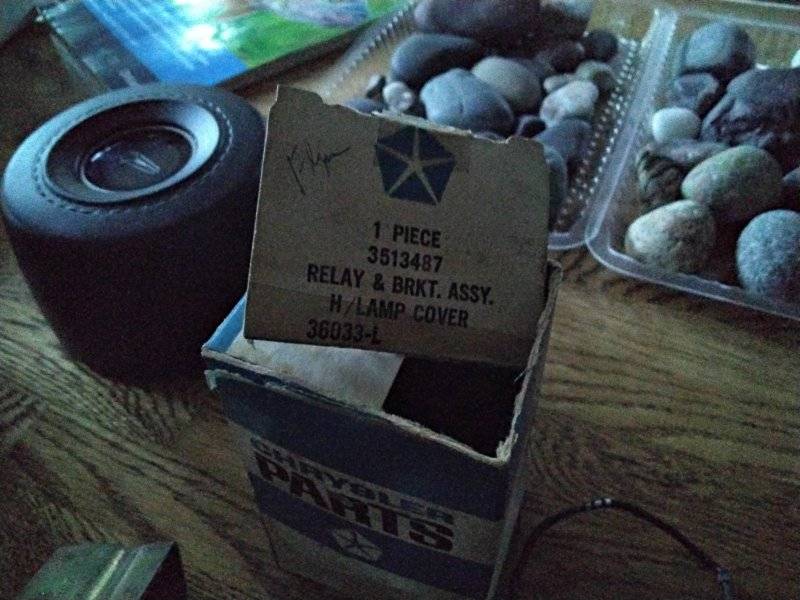

This is the tag that was on the box, 3513 487, but again no stamping ?? I thought someone e would know by the bracket.




Last edited:
2-3513487 71 Chrysler and Imperial headlamp door relay.
