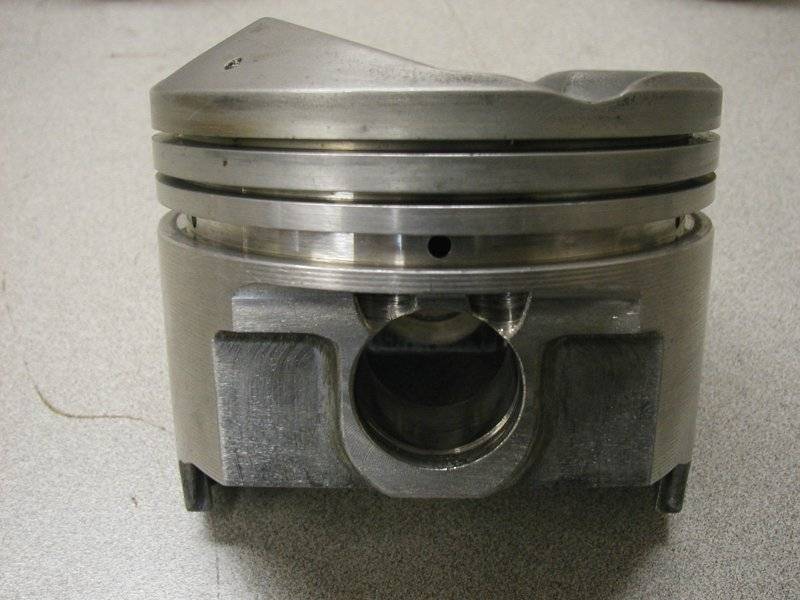

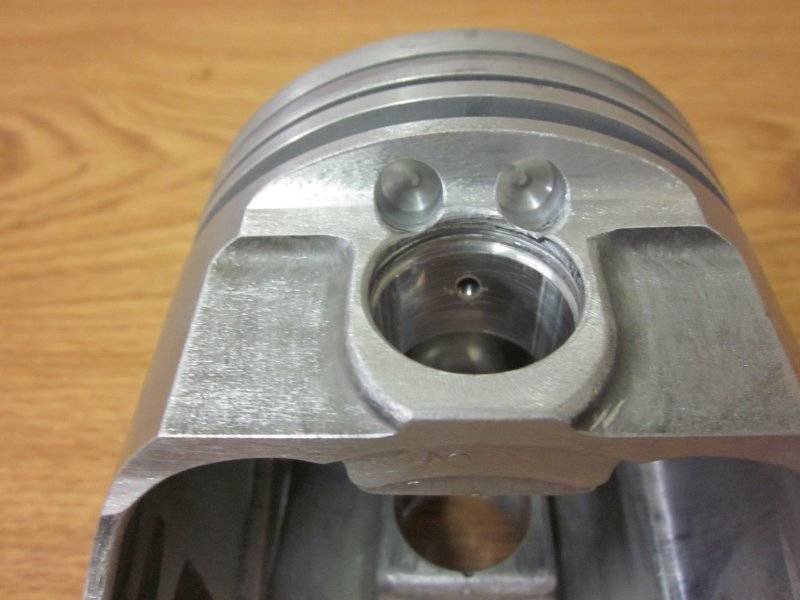

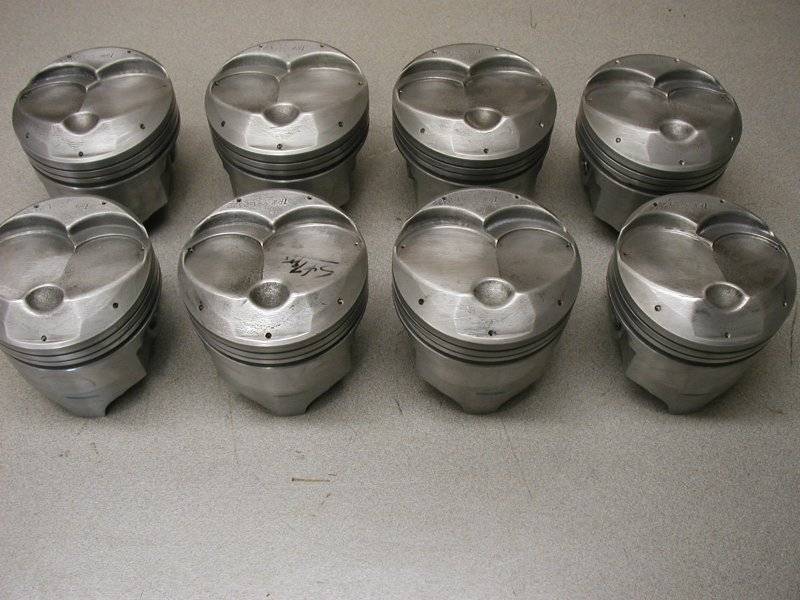

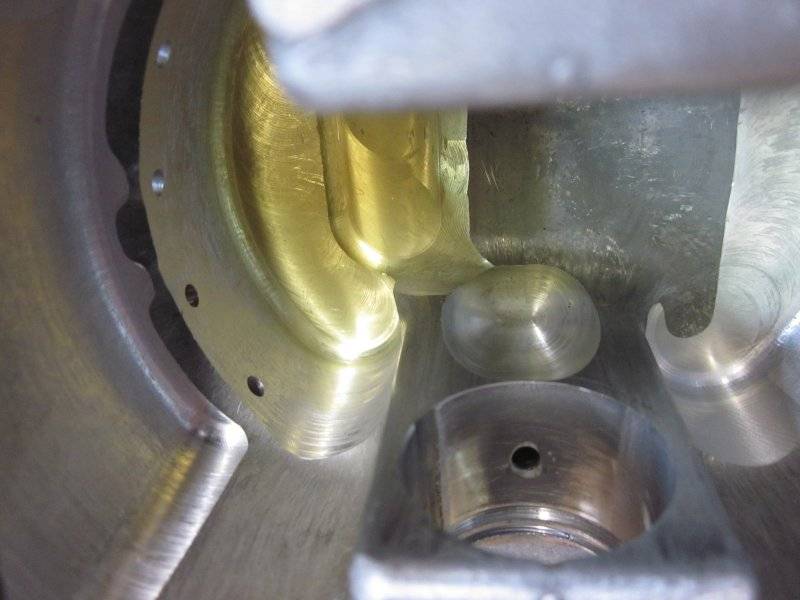

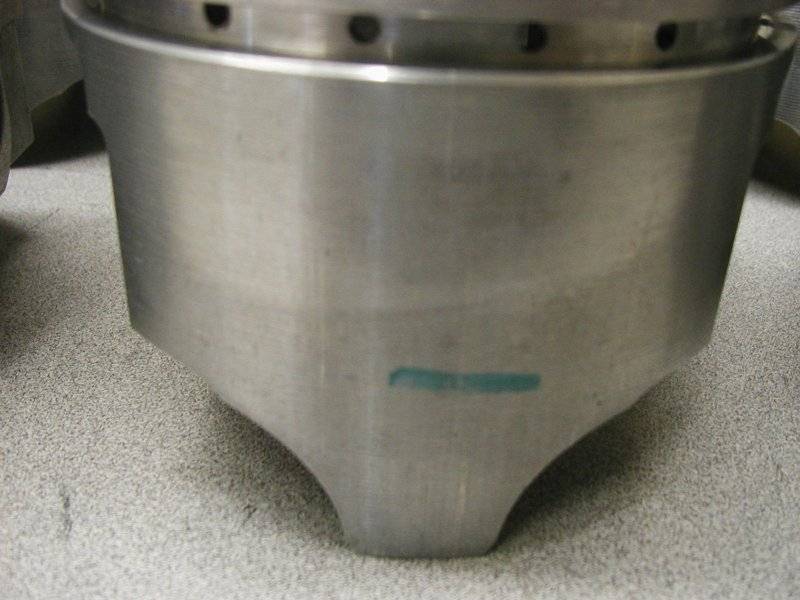

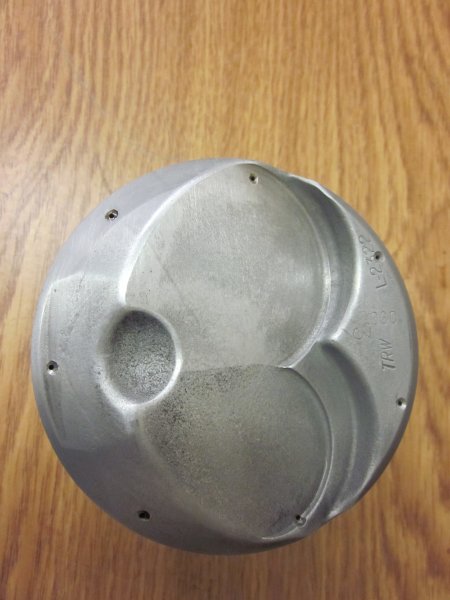

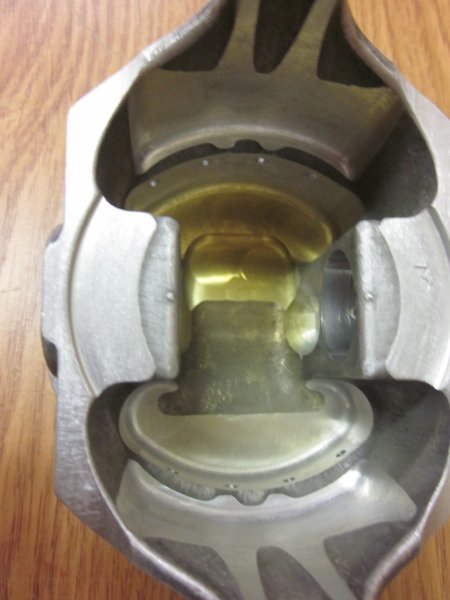

Used TRW L2322+.030 forged pistons for 340 engines, lightened and gas ported by Patterson Racing. Internal skirt and dome milling, lightening holes above wrist pin (6) and pin holes bored and re-grooved for .990 BB Chevy wrist pins and double spirolox. Would require your rods to be honed approx. .006" from factory .984" pin holes. Pistons measure 4.062-4.063 @ measurement point, 1/16 x 1/16 x 3/16 ring grooves. The bad......ring grooves are showing some wear, top grooves wore .001-3" figuring factory @.064" groove. Don't have the correct wrist pins for these, but have a new set of .990 pins that would have to be shortened, I will include. Pistons are 547 grams. If someone thinks they can make use of these.... $75 + shipping for the set with pins and spirolox. The lightening, gas porting and wrist pin boring and re-grooving was in the $700 range back in the day. Hate to scrap them, maybe good race part art.
