Looking for install instructions for the electric headlight door conversion

[funknut]

I just placed an order from Herb's Parts for the Charger Specialties headlight door upgrade. They are 4-6 weeks out, no big deal. I asked if they could send the instructions, but it sounds like they are in a bit of transition from Charger Specialties getting bought out, and didn't have any available.

I'm trying to get a head start on the front end wiring and if someone who has the kit could post up the installation instructions that would be a big help. Thanks!



[68Moparmaniac]

I just placed an order from Herb's Parts for the Charger Specialties headlight door upgrade. They are 4-6 weeks out, no big deal. I asked if they could send the instructions, but it sounds like they are in a bit of transition from Charger Specialties getting bought out, and didn't have any available.

I'm trying to get a head start on the front end wiring and if someone who has the kit could post up the installation instructions that would be a big help. Thanks!

Ill dig mine out and try to post



[pnora]

Every thing is in the kit. I mounted my controller under the battery box. As far as what you need to supply to feed the box is a ground wire, fused 12 volt constant and a signal wire off the headlight switch. I tapped into the power wire to the dimmer switch.

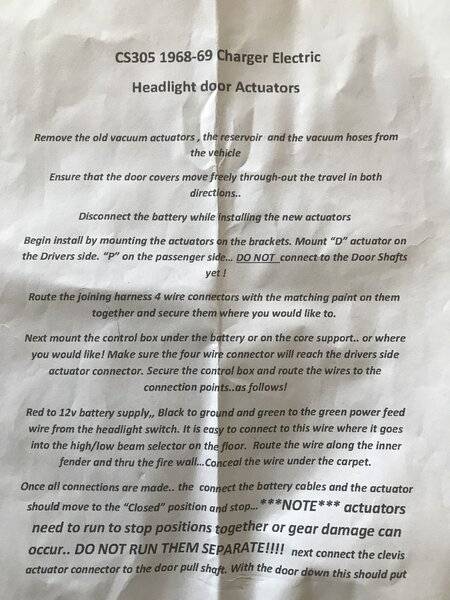

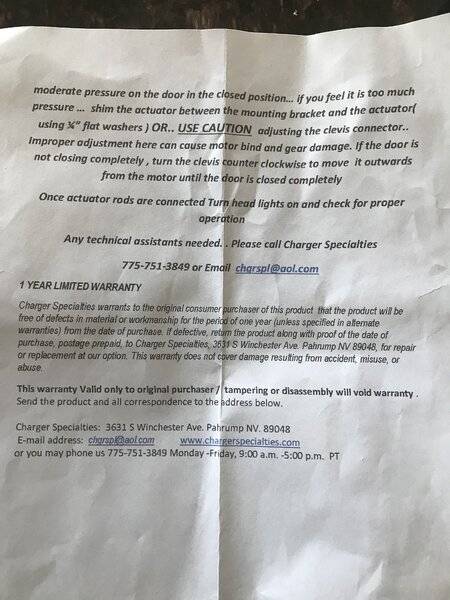

[68Moparmaniac]



[hugh68charger]

"1968-1969 Dodge Charger Electric Headlight Conversion". try youtube Scotts Speed Shop posted an install a couple of months ago under this title



[funknut]

Thanks much!
