Need help identifying what size rear end.

[ITS A 72 RR]

On a 72 440 4spd 4bbl.
Fender tag info.
N23 N41 N85 R11 END
EV2 U 26 C12 J45 M21
EV2 C2X9 TX9 504 282053
E86 D21 RM23 U2R 316877

On rear end
1st tag
46-13
3:54

2nd tag
USE LIMITED
SLIP DIFF
LUBE ONLY

I think after reading some old post that it's probably a 9 3/4 Dana 60. But would like to know for sure. Thanks



[5.7 hemi]

The 3.54 is a dead giveaway that you have a Dana. Post a pick and we will be able to confirm/deny.



[ITS A 72 RR]

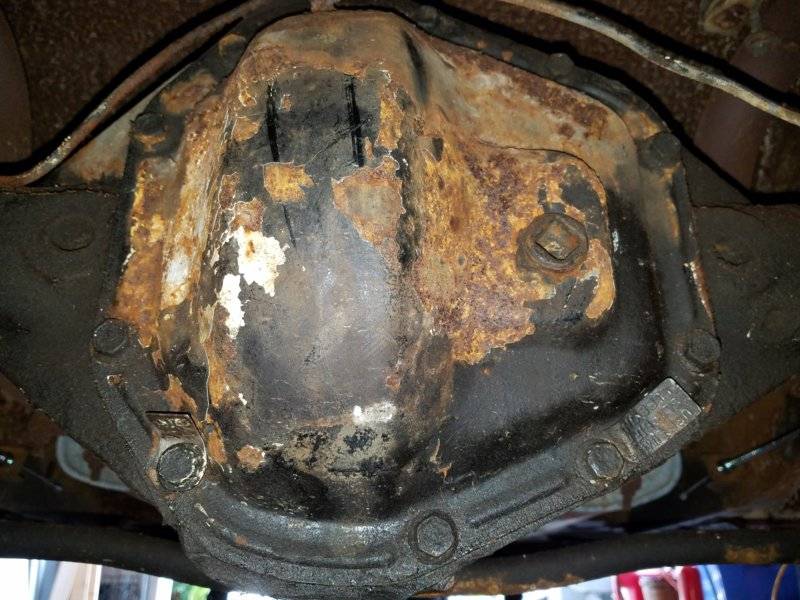

It's a little dirty. Been sitting for 24yrs.



[bearman]

yep looks like a dana to me



[66Satellite47]

Dana 60. Great part. Indestructible.



[ITS A 72 RR]

Thanks for the quick replies



[moparnation74]

What is even nicer....that cover has never been taken off.....Document what you uncover and careful cleaning.....

Does the diff tag with 3.54 have any remnants of black paint on it?



[ITS A 72 RR]

Yes under all the dirt and oil there is black paint. Nothing wrong with the rear end I just needed to know what it was so I can order the correct brake line kit. Which brings me to another question . The moron tow truck driver that brought my car from VA to FL thought by cutting the e brake cable that it would free up a stuck wheel. My problem is where can I find any info on re-routing the new e brake cable.



[mopar 3 B]

Back cable or front?
Send the tow company the bill. He will like that.



[mopar 3 B]

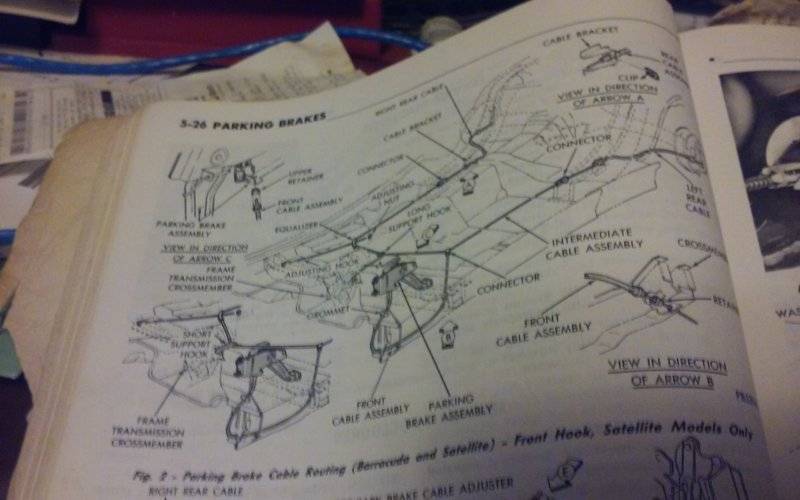

Brake cable routing



[Ironbuilt]

If it looks like this...it's PERFECT.
