Need some info asap...

[493charger]

I'm at work and was going to stay over and make the tools I need for a rebuild this wknd. I need to know a couple of dimensions if you please...

I have a 7290 yoke and need to know the c-c bolt spacing, width and height. I believe the height it about 1.6" but some say 1.5". I'm not sure how far apart they are though...



Also, I need to know the c-c distance of the carrier side adjuster holes, from one side to the opposite side...



[493charger]

If anyone needs this info, these are the measurements, to the best of my ability, with calipers...

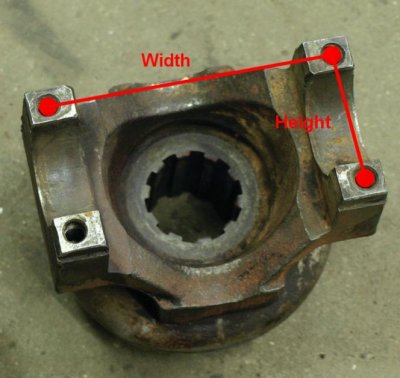

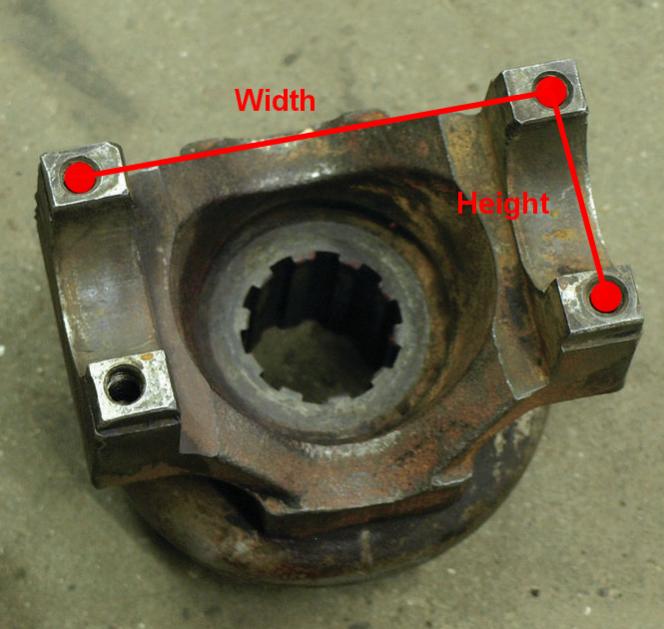

Yoke Bolts
W = 3.3125"
H = 1.55"

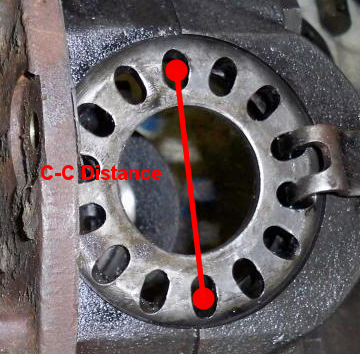

Carrier Adjuster Holes
C-C = 2.625"



[493charger]

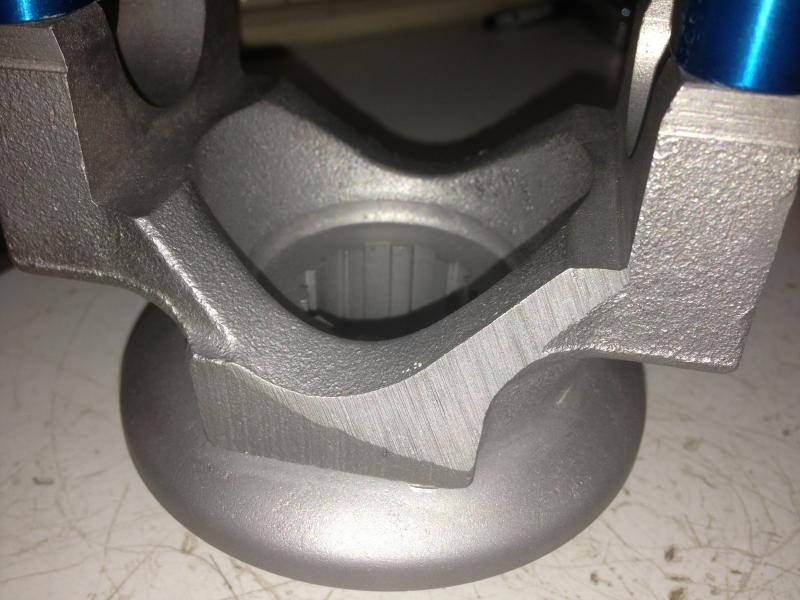

Any idea why my original yoke would look like this?



It's the original that has been on the car, untouched, since new... I sand blasted it and was going to clean it up to use once I rebuild the diff. I have another one, but I'm just confused...



[Cranky]

That's where the excess was ground off after it was forged....I like to smooth up the edges a little if I'm going to abuse it.
