Non AC heater box, high low door operation?

JR_Charger

Well-Known Member
Local time
11:57 PM
Joined
Sep 30, 2020
Messages
6,278
Reaction score
11,012
Location
____

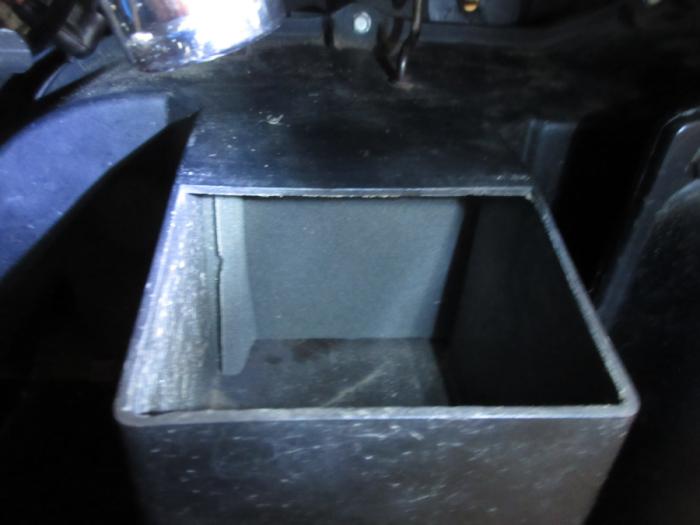

I'm trying to reinstall the heater box on the 72 Dodge Charger, and can't figure out the operation of the high/low door. It looks like this would be low -

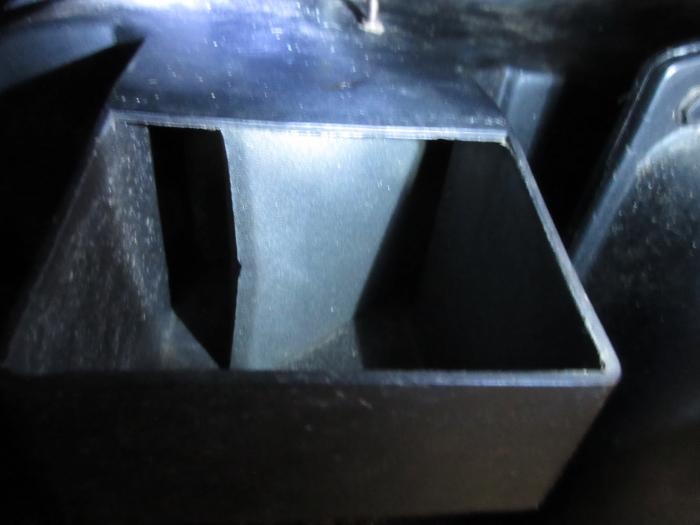

and this would be high -



However the high/low lever on the heater control has more sweep than these two positions require, and appears to operate in the opposite direction. I.E., the top pic would be high and the bottom pic would be low. I'm sure I'm missing something completely obvious here.
