Pictures of a 1969 Coronet R/T dash?

[1969CoronetR/T]

I had my Coronet at the body shop as it was stalling constantly even thought the battery was good. There were a myraid of problems that were corrected to make it stay running, but it needed minor wiring under the dash to pass inspection (i never had it inspected). The restored claims I have a 1968 Road Runner dash in the lower part where the controls are located. They are square switches and the instrumnet cluster is non rallye. Does anyone have pictures of a 1969 Coronet R/T dash or a 1968 Road Runner dash (square speedometer)?
Thanks,
Mark



[olebrowndodge]

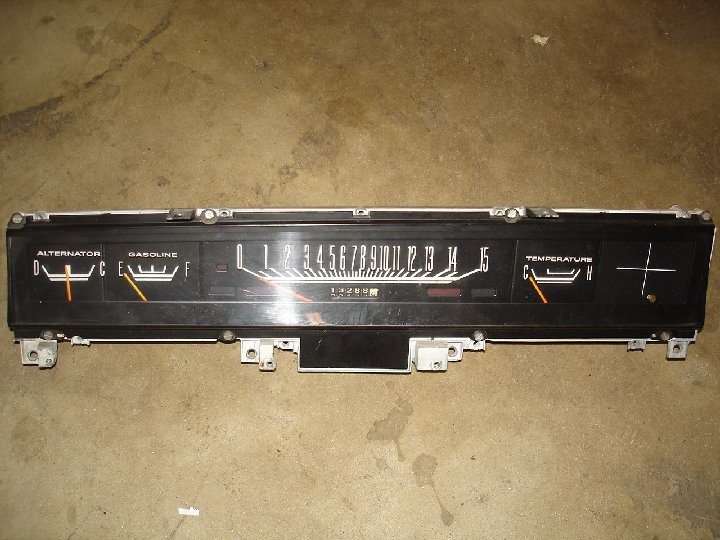

heres one that reads 150 from 1 to 15 ,,,the other which i dont have a picture of reads 10 to 150 has the same shape just different numbers, not sure of what this came out of but was going to use in 68 coronet,,,dont have a picture of the whole dash



[1969CoronetR/T]

Mine looks the same. I was looking for the bottom left section with the controls as that was the part in question. The car was used to drag race so it is not numbers matching, but I would like to get it correct if needed. Interestingly, it has a 440 wedge from a New Yorker in it....



[generaljmwlee]

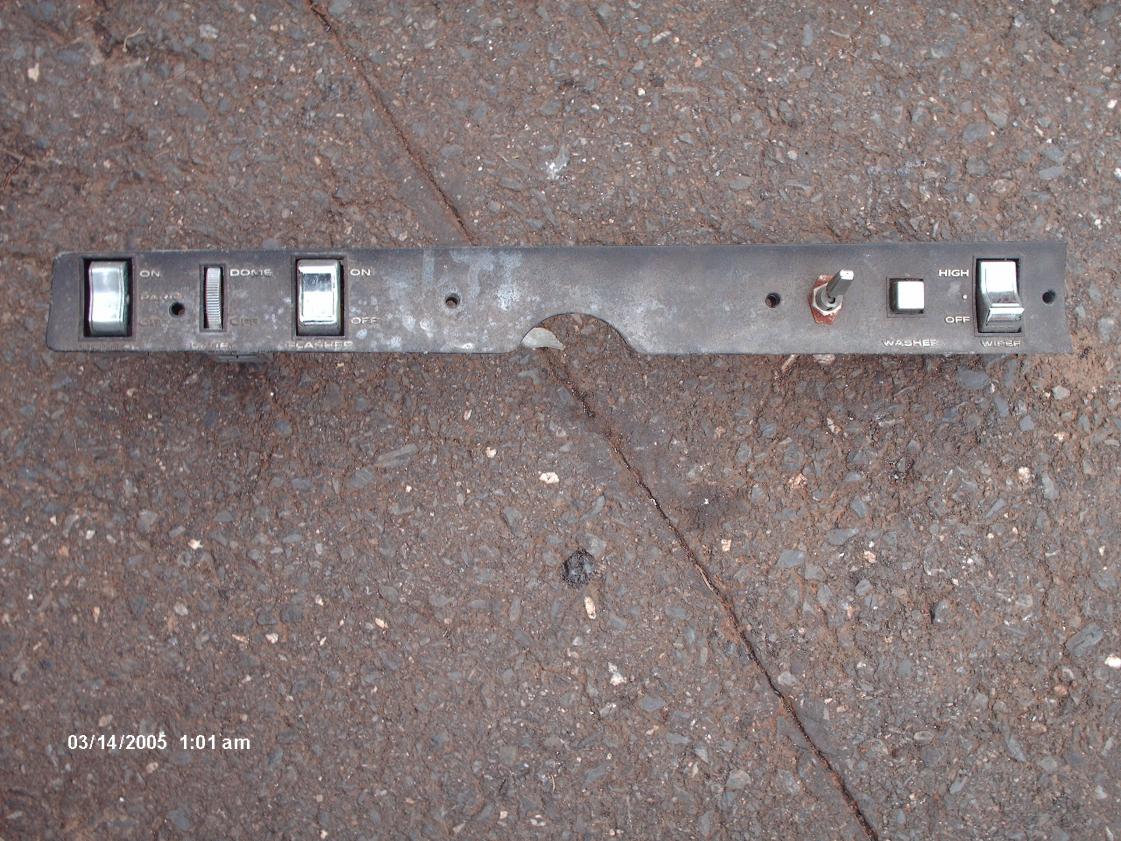

is this what you were talking about?

here it is



[1969CoronetR/T]

Thanks....mine is similar but the buttons are square with no toggle. I neeed to take a photo of it later today,



[rrunner]

Thanks....mine is similar but the buttons are square with no toggle. I neeed to take a photo of it later today,

Toggle is a add on. Here's the difference between 68 and 69 switch panels. 68's are cast smooth and painted with a textured satin black paind and use pan head screws to secure it to the dash. 69's are cast with a testure and painted satin black and use a beveled screw head to secure it to the dash. The fastest way to spot a 69 panel is it has the dot between the wiper off and high where a 68 has nothing. The unit pictured above is a 69.

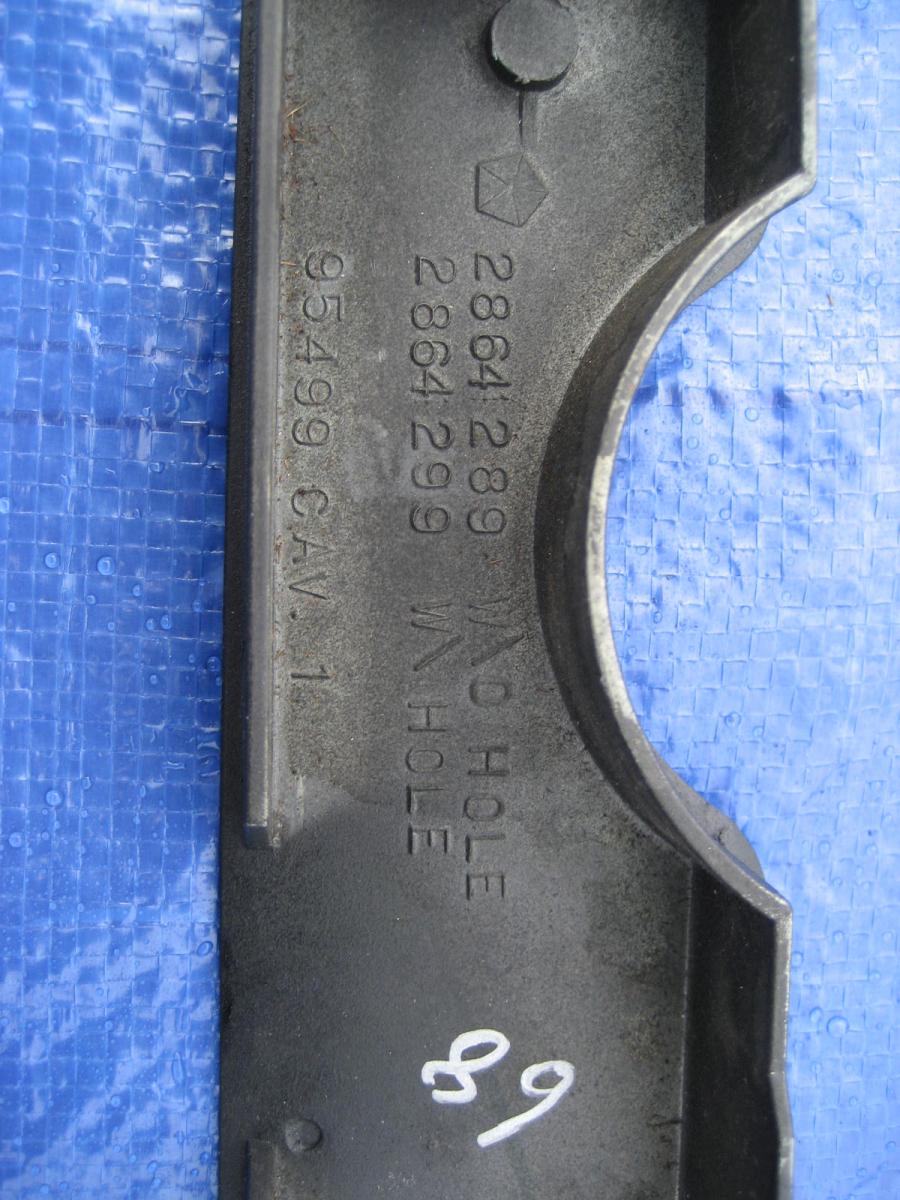

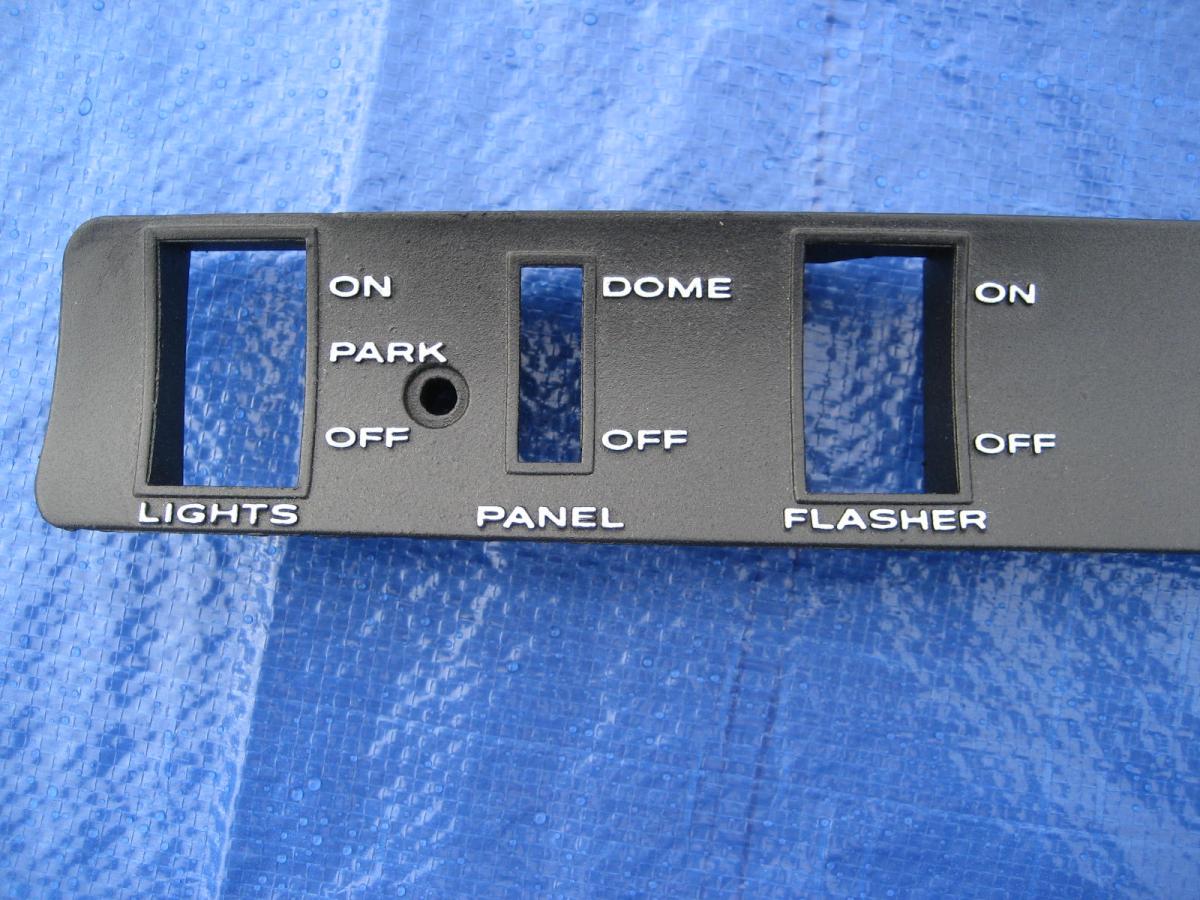

Here are some pic's of a 68 panel I redid, you can see the screw holes, no dot between the off and high on the wiper switch area and the part #. This one is w/o hole, w/ hole would have a cut out between the steering column notch and the washer button hole and would be for rear defrost, rear speaker or both defrost and rear speaker. There is also no Road Runner or Coronet panels, just 68 and 69 Mopar b body std. dash panels. Hope this all helps.



[1969CoronetR/T]

Thanks......now I have to check for the dot and I need to post a picture of my dash to be certain.
