Power window relay

[Roger63]

Apparently there are no reasonably priced p/w relays available for a 71 charger. Does anyone know how and which modern relay to wire in?



[1970GTX]

I was in the same boat as you. Couldn't believe the prices people wanted for the right relay. Our local parts guy sold me a Borg Warner R240 for 10$ bucks. I haven't tried it in the car as my old one was ok. ( loose connection) The 3 prong connector fits perfectly. for 10 bucks it's worth a try



[A383Wing]

I can make a 40a Bosch relay work if I knew which of the 3 pins on the OE relay went where in the car....I have the 3 wire connector so this would be a plug-n-play part...send me PM if interested

Bryan



[451Mopar]

Apparently there are no reasonably priced p/w relays available for a 71 charger. Does anyone know how and which modern relay to wire in?

There is nothing special about the relay, it just disables power to the window switches when the ignition is off. I added a switch to mine so I can "lock out" the power windows when the kids are in the car.

I also installed relays to drive the window motors and take the current load off the switches.

http://board.moparts.org/ubbthreads/showflat.php?Cat=0&Number=4775992&an=0&page=0#Post4775992



[A383Wing]

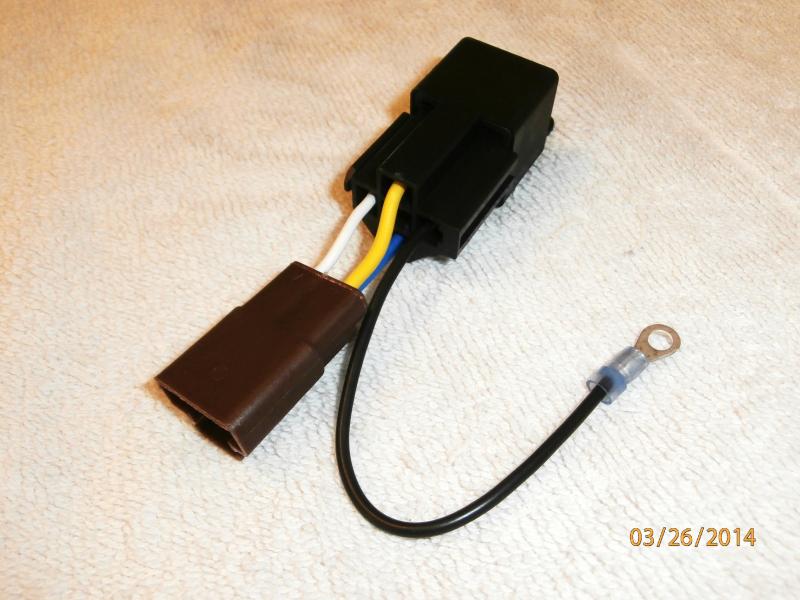

I have an upgraded plug-n-play relay here, Bosch style. This is a 40a relay, plugs into car harness, and attach one ground wire. See pic below

$30 with free mailing



[451Mopar]

I have an upgraded plug-n-play relay here, Bosch style. This is a 40a relay, plugs into car harness, and attach one ground wire. See pic below

$30 with free mailing

That's a nice setup, and good price.



[A383Wing]

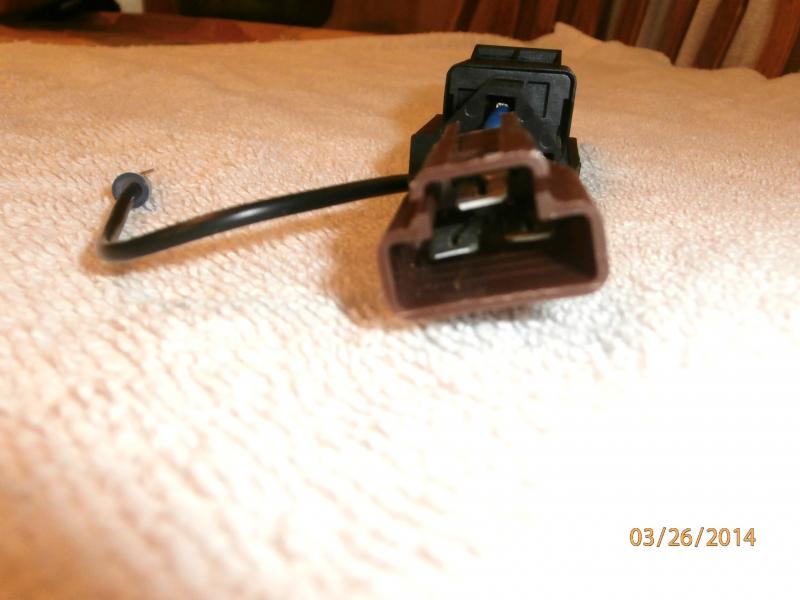

the relay above is for the 3 pin OE relay that uses the case for ground..I can make the same set-up for the 4 pin style that has separate ground spade on it



[451Mopar]

the relay above is for the 3 pin OE relay that uses the case for ground..I can make the same set-up for the 4 pin style that has separate ground spade on it

I don't need one, My original relay works fine. I was just commenting that the Relay harness is nice, and it's a good price because you usually have the but the connector shells and terminals in bulk, and it comes with the relay. What grade of wire are you using?

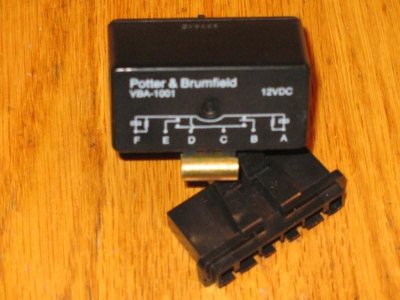

I bought several of the Potter & Brumsfield VBA-1001 relays to operate each window motor and take the high current off the switches. It also grounds the motors through the relay, not the switches, which I needed because my drivers switch has a bad ground pin, and all the motors/switch use that that ground in the stock wiring setup. I also bought the Packard type "T" connectors so I can wire the relays as a plug in deal. It just plugs in between the switch connector and the motor connector, then just need to connect the relay ground and tap into the yellow main +12v power going to the switch. It makes for a cleaner install than wiring two separate relays for each window.



[A383Wing]

I don't need one, My original relay works fine. I was just commenting that the Relay harness is nice, and it's a good price because you usually have the but the connector shells and terminals in bulk, and it comes with the relay. What grade of wire are you using?

I do buy all of the components in bulk, relay, main relay harness, the plastic 3-wire connector, and the terminals are all separate. I build & market the 3 relay set for the rotating headlight motors in the 66 & 67 Chargers that are located behind the glove box....I have been selling these since 2008.

I want to start selling this one above that I posted for power window Mopars from the late 60's to early 70's

The wire that comes with the relay harness is 14ga & 16ga.



[451Mopar]

I do buy all of the components in bulk, relay, main relay harness, the plastic 3-wire connector, and the terminals are all separate. I build & market the 3 relay set for the rotating headlight motors in the 66 & 67 Chargers that are located behind the glove box....I have been selling these since 2008.

I want to start selling this one above that I posted for power window Mopars from the late 60's to early 70's

The wire that comes with the relay harness is 14ga & 16ga.

Cool. I was asking what type of wire, not the gauge. Is it standard GTP Polyvinylchloride (PVC) wire, or the higher temp GXL, SXL, TXL Cross-Linked Polyethylene wire?
I was thinking of using the Marine grade Tinned GTPW wire.



[A383Wing]

Oops...sorry...my bad

I think it's regular PVC wire..it's a plastic style outer coating around stranded wire...it's not that real expensive hi-temp stuff



[A383Wing]

New upgraded relays are now available, see link below

http://www.forbbodiesonly.com/mopar...6-Mopar-Power-Window-Relay-(Upgraded-Version)
