SOLD Prestolite dual point distributor for 440 six pack w/vacumn advance

[Gygeneral]

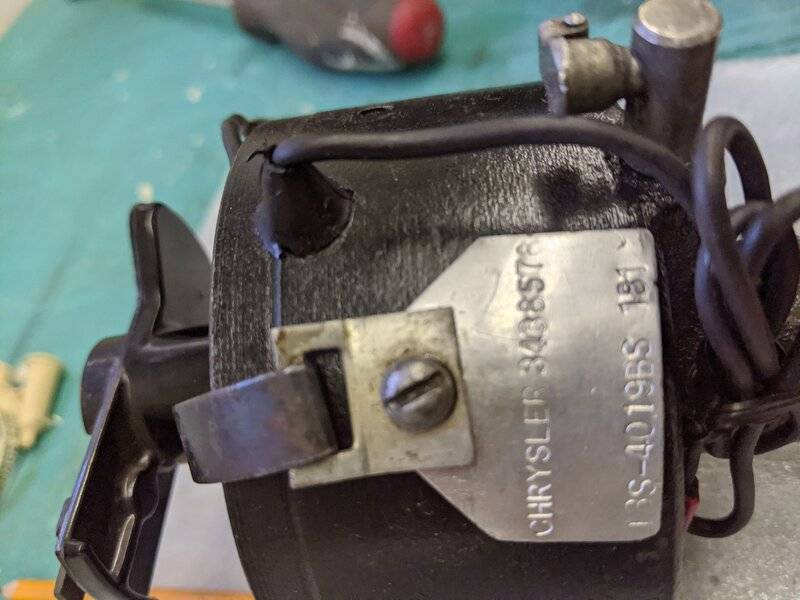

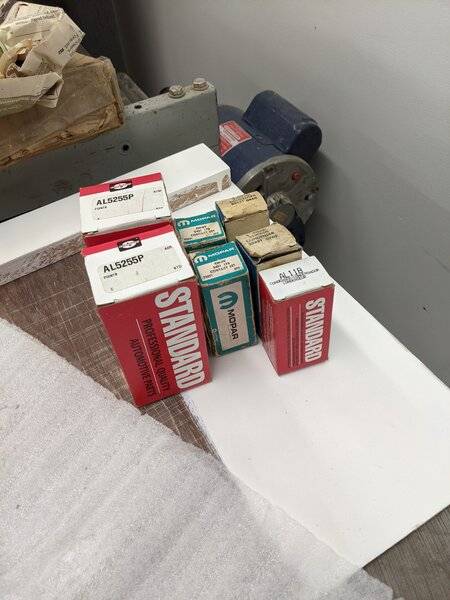

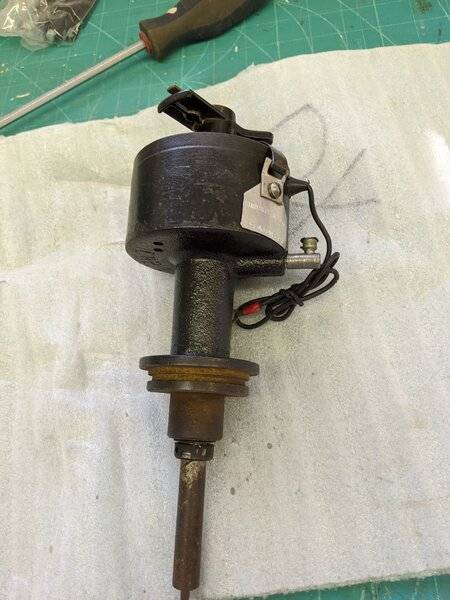

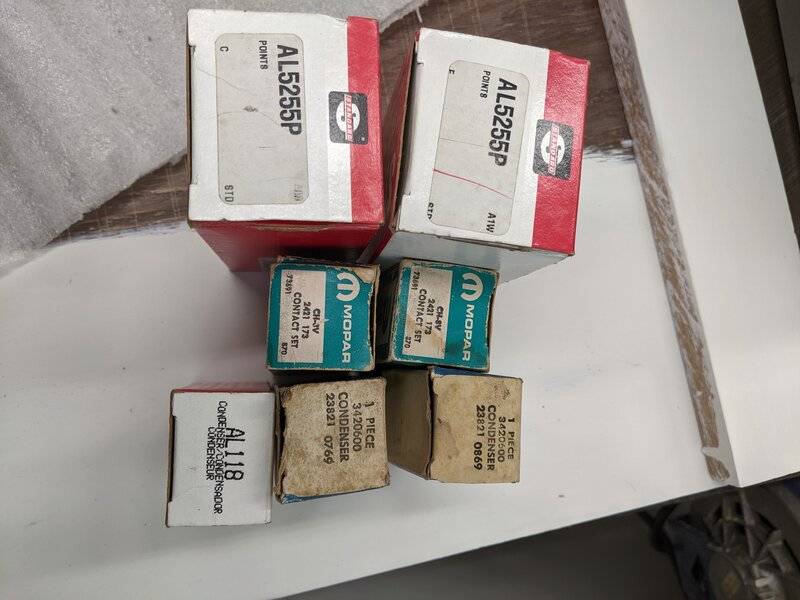

I have for sale what I think is a 71 six pack dual point distributor 3435578 with the vacumn advance 3438539. There may be other applications that I'm not aware of. PM me here for more info or pics. Asking $750USD. Buyer pays shipping. I don't want to seperate these items. Also included are the NOS points and condensers as pictured.



[R413]

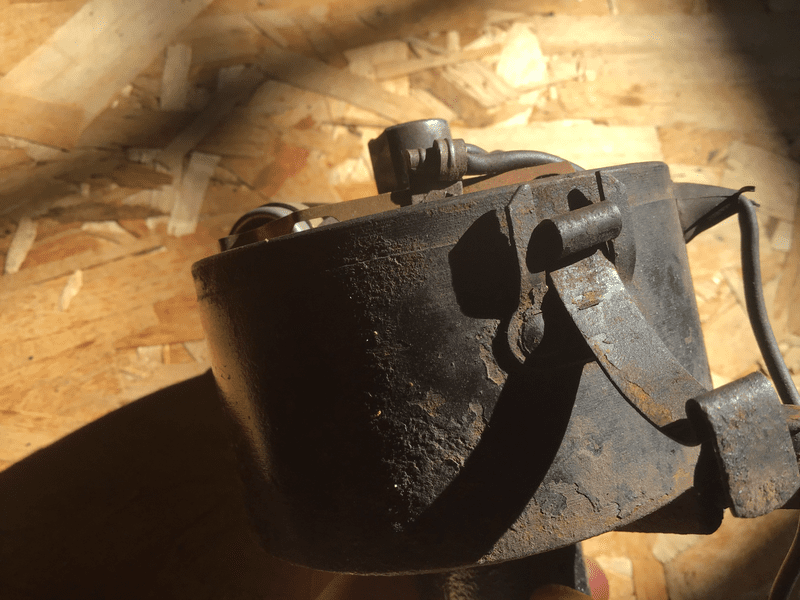

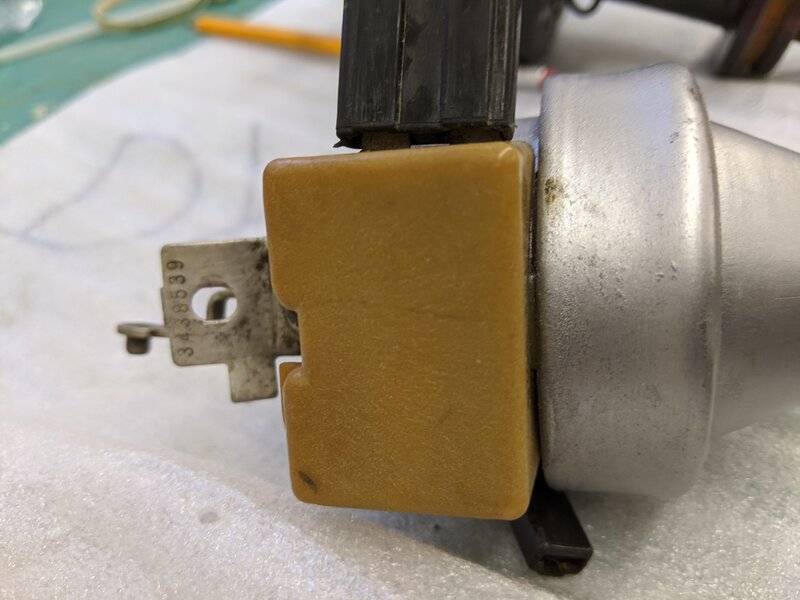

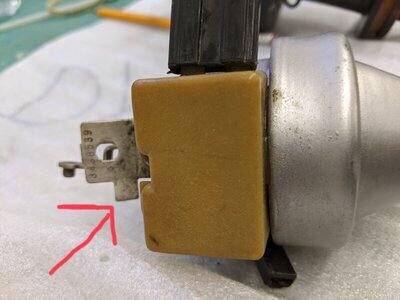

That vacuum advance is for single point distributors only. See the tab on the flange? (Arrow pointing to it) That locates the cap. A dual point cap doesn’t have that notch. A dual point cap is located by the base of the clip. Last photo.



[HALIFAXHOPS]

I agree, they have one for the 440-6 really expensive. Has a arm that goes onto a pin. You have a better picture from the top showing the advance plate?



[Gygeneral]

I will post a picture from the top, that is the same advance that I had on my six pack, these were backups in case. I wish I still had it to have a look, anyhow I'll get that pic.



[Gygeneral]

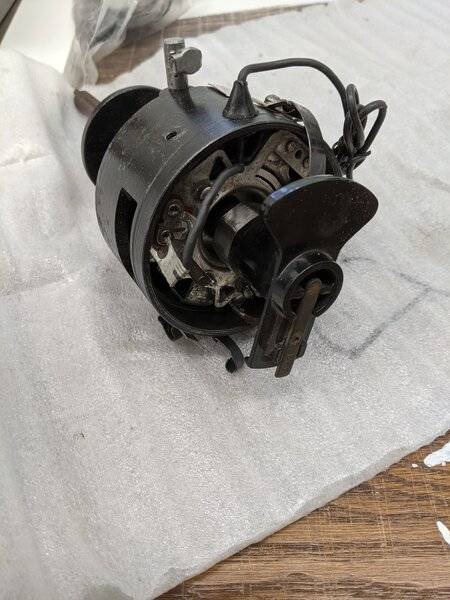

There you go



[R413]

Here are some photos

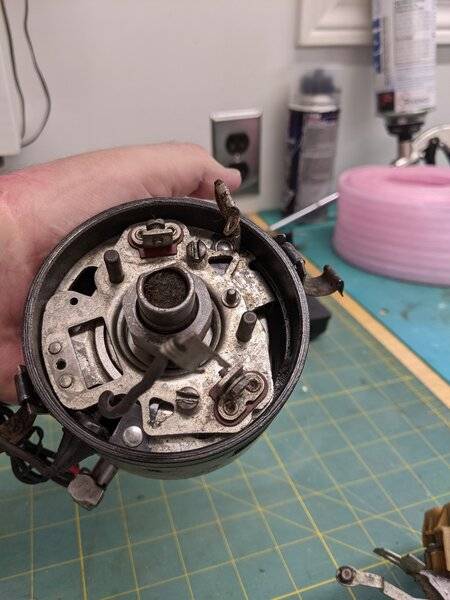

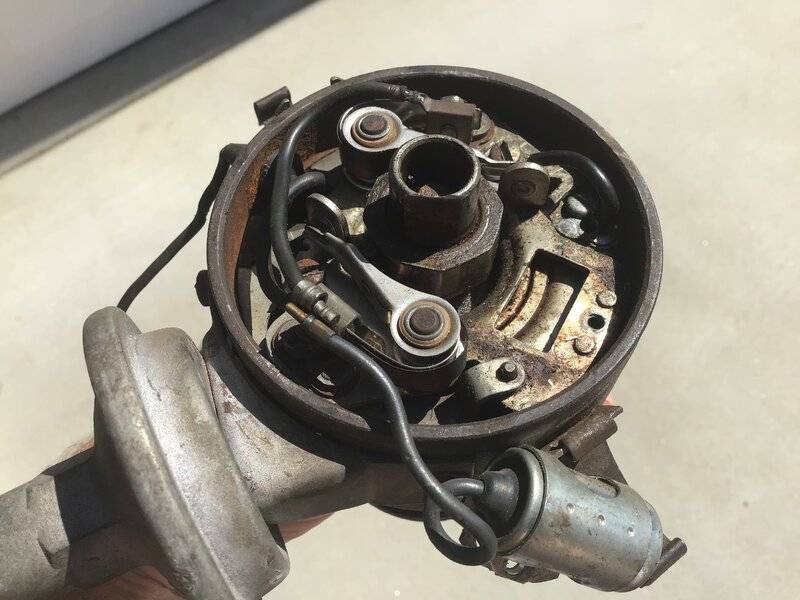

1) see the pin that the vac advance mounts to

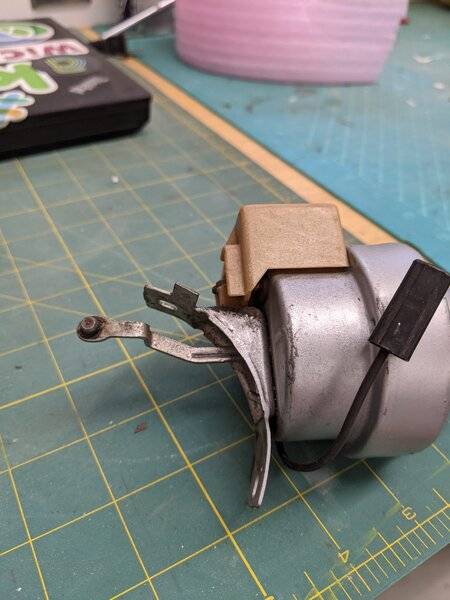

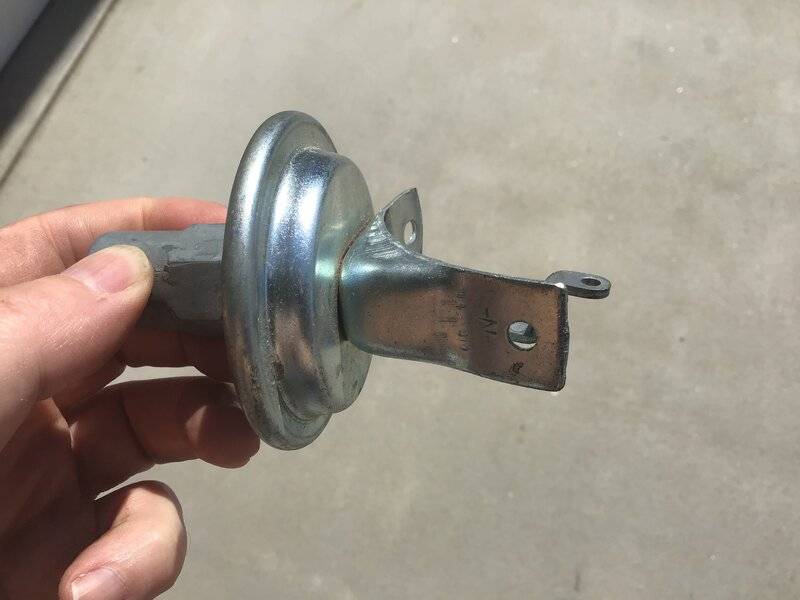

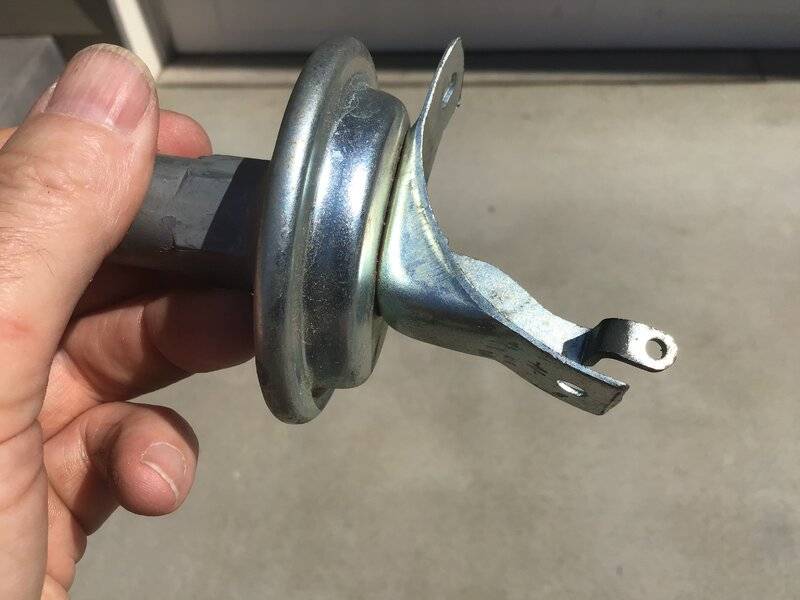

2 & 3) dual pt vac advance no tab on the flange, hole in arm for a pin to go through on the breaker
plate.

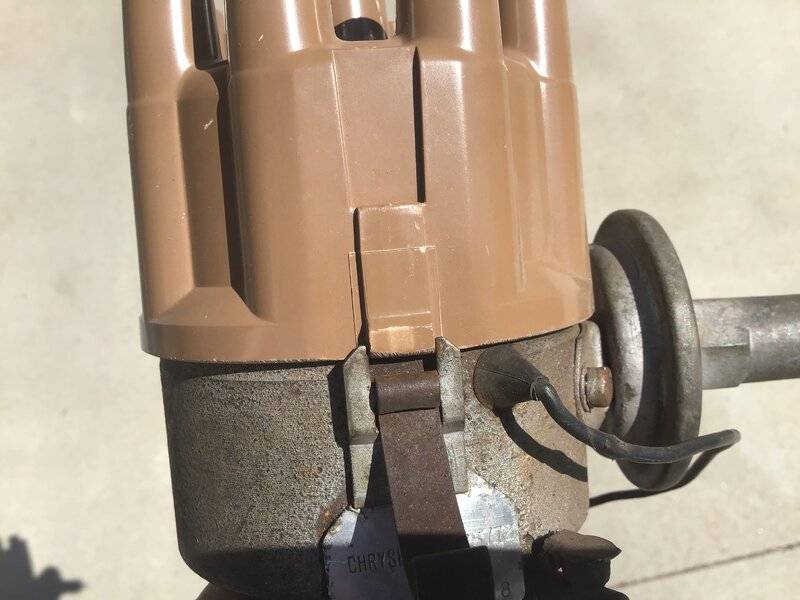

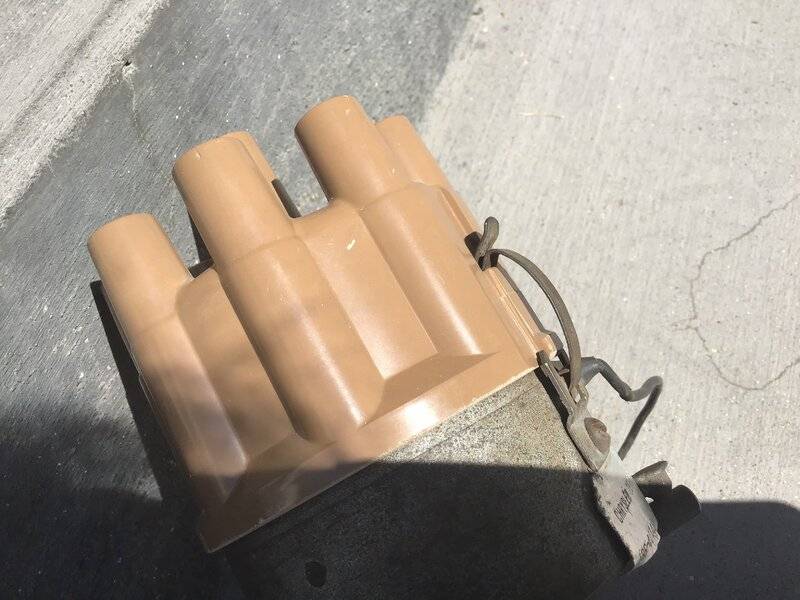

4 & 5). How the dual point cap mounts to distributor



[Gygeneral]

Yep I see that now, my vacumn advance has a pin on the arm whereas the distributor also has a pin. So the vacumn advance I have seems to be for another application. Any idea what, I could not find that number in my 70 parts book.
.



[HALIFAXHOPS]

Most B/RB engines in the B bodies with the HP engines think 69-72. Stupid system IMO. The unit is listed as a assembly the metal and plastic part so you wont find the number stamped on it in any book. The one you need has a weird arm that does a 90 degree bend at the end, one year only, hard to find and around $400 if you can find it. Only one year also 1971. Hope it helps.



[Gygeneral]

Yes that helps, when I get home I will adjust my ad to clarify, maybe split up the two pieces.



[R413]

The 1970 383 2 bbl had that advance also. IDK about non HP 440’s.



[Gygeneral]

I have reposted the distributor, I have removed the vacumn advance and points and adjusted the price accordingly. I will relist the advance and points in seperate ads.
