question on 67 hemi brake boosters

[dan juhasz]

On a 67 GTX factory hemi with power brakes. Is there anything special about the bendix booster or is it just the brackets and linkage that mounts it that is unique for a hemi application?



[R413]

3/8” mounting studs instead if 5/16”



[Fran Blacker]

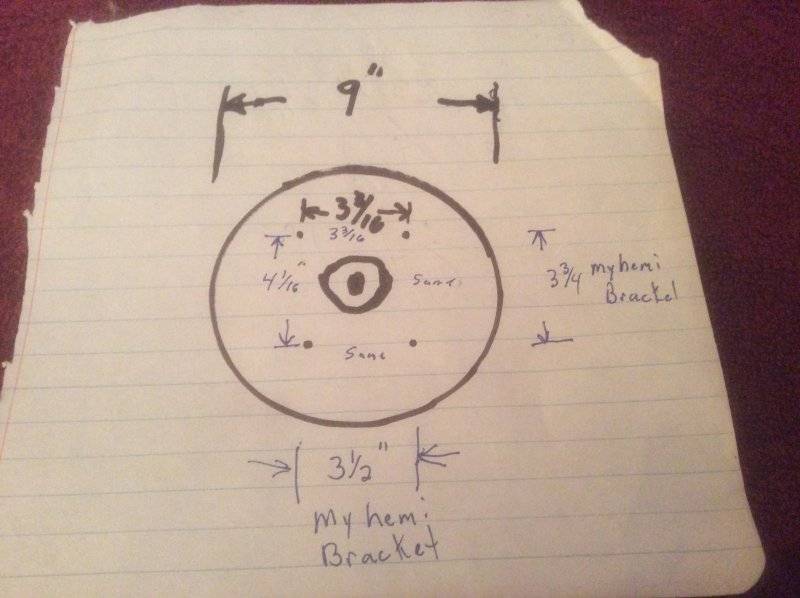

Bolt pattern. Hope you can read it. Bendix booster.



[dan juhasz]

Bolt pattern. Hope you can read it. Bendix booster.View attachment 1474651

so the dimensions shown is the circle (booster) are the hemi booster measurements? The other dimensions are the offset bracket to the firewall plate?



[Fran Blacker]

The drawing is like looking at back of booster. The left to right are wider 3.5" Hemi. Non Hemi is 3 3/16". Top to bottom same on both boosters.



[Jerry Hall]

The drawing is like looking at back of booster. The left to right are wider 3.5" Hemi. Non Hemi is 3 3/16". Top to bottom same on both boosters.

Thanks, I thought the mounting dimensions were different on the Hemi booster. Thanks for the exact specs.



[gtx6970]

mounting studs are 3/8" , non hemi is 5/16"

Also, the arm that come out the back side has a different shape than non hemi versions
