Rally dash wiring diagram

[woodall j]

Need wiring diagram for the rally dash on a 1970 roadrunner



[Seventy]

There is a very helpful post on here where another member took photos of labels he made for all of the connectors...
It was a lot of help when I labelled mine..

If you want an actual diagram try moparts.com

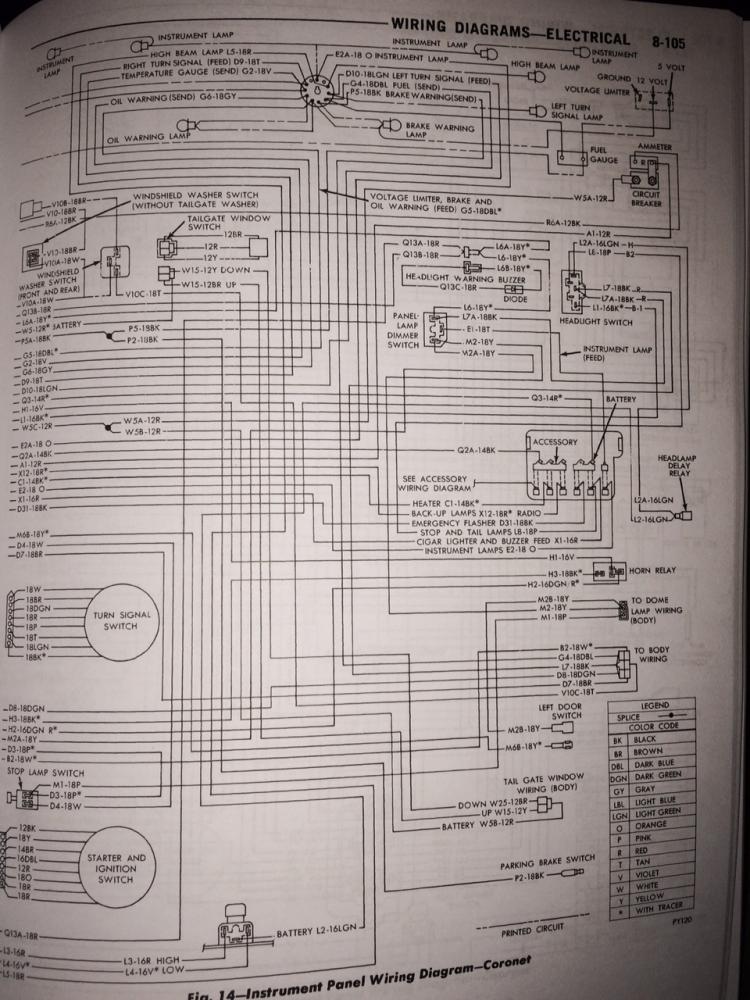

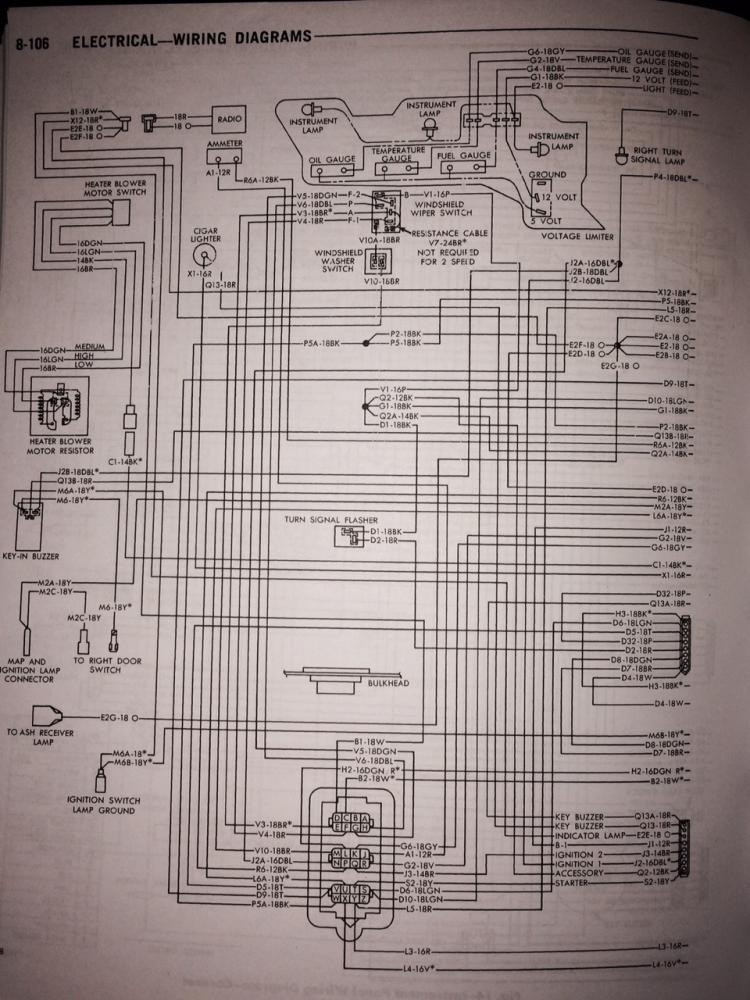

heres non rallye



- - - Updated - - -

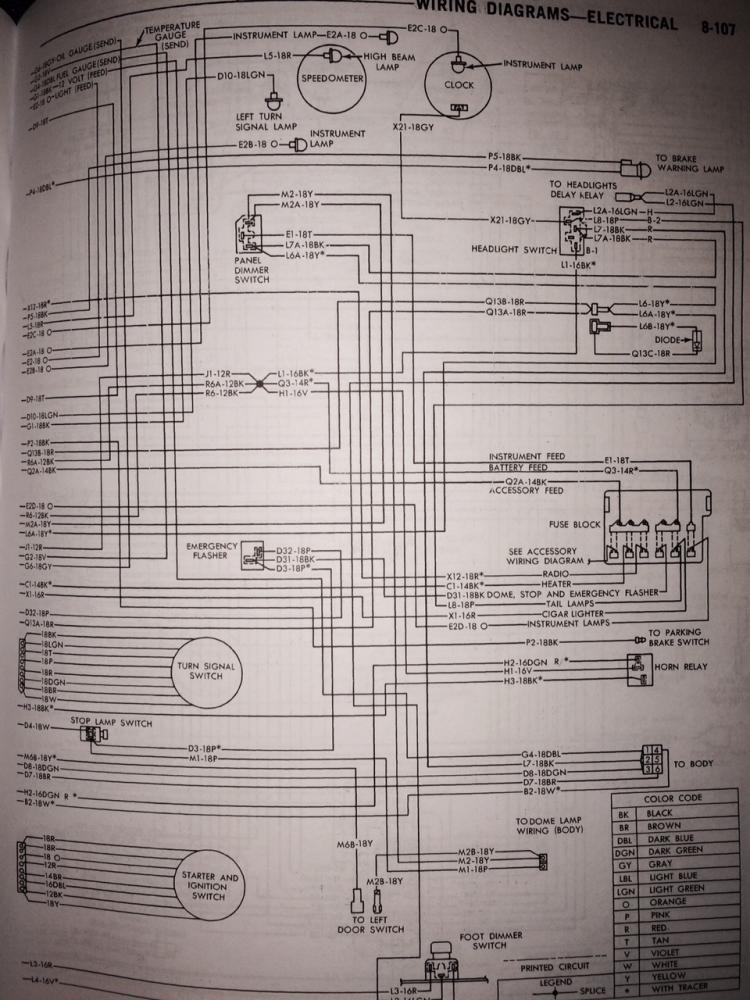

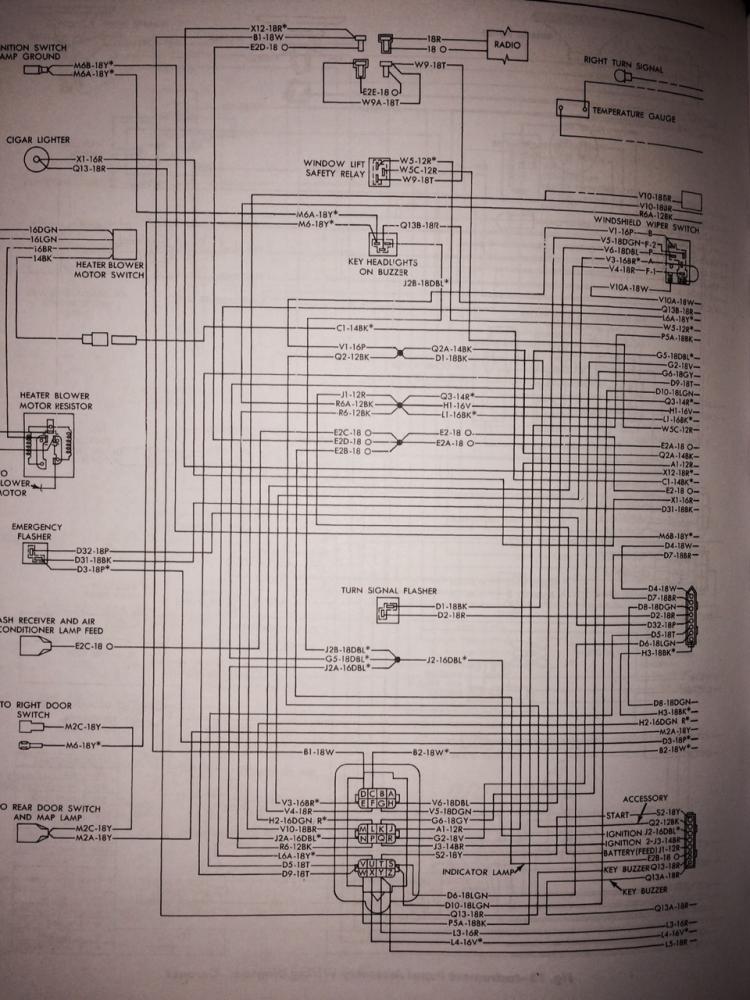

Heres rallye








Them are out of my 70 coronet charger book, should be the same harness.. Let me know if you need a closeup of a certain part or me to read something off of it



[texas69bee]

http://www.mymopar.com/index.php?pid=24



[440roadrunner]

Don't download the wiring diagram. Download the factory shop manual at the above link



[woodall j]

Thanks to everyone that helped
