Rear ends

[64polara4dr]

I have a question that I'm not 100% sure of. Is a rear end from a 59 Ply. the same width as a 64 Dodge B-body? I did some measuring and they seem to be the same width. Just wanted to Confirm this with you guys.
Thank!



[6t4polara]

http://www.mymopar.com/Mopar8_75RearEndGuide.htm



[1967coronet440]

Got any pictures? Measure length flange to flange, measure spring perches as well



[moparsquid]

my question is why do you want the old style axels id go with a newer one



[63SPF]

Put an a body 8.75. , it fits with little work !



[skicker]

Not sure what your trying to do here but the narrowest rear I've found is from a 63. You can order Newer style axles from Cass at Dr. Diff and use 65 up backing plates with whatever backing plate-drum combo you want...

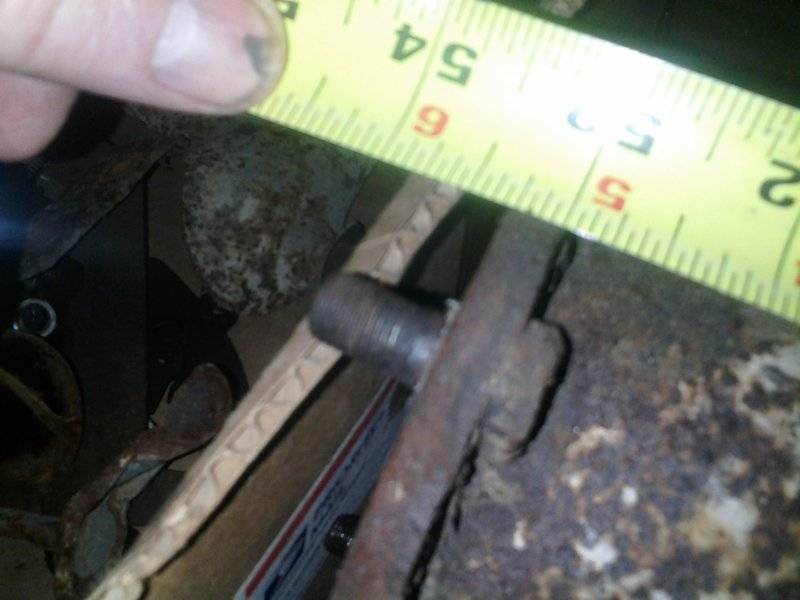

First pic is a 63 Polara rear at 53 5/16" flange to flange

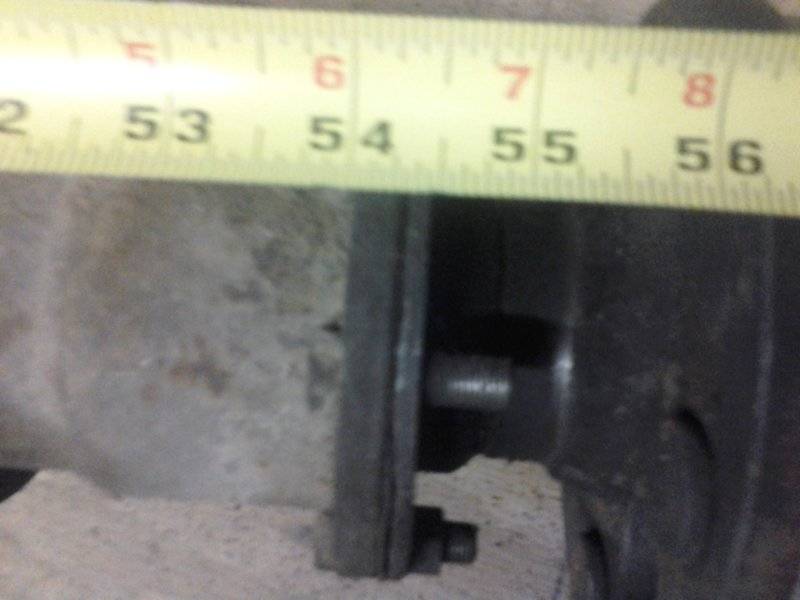

Second is a 65 Belvedere rear at 54 5/16" flange to flange.
Its only a 1/2" on each side...
Do whatever you want but there are good ways to get around using the old style axles these days...



[Kernel Sanders]

check the bolt pattern of the tube ends where the backing plate bolts to as there is a transition year to the better known 8.75/Dana ends we now all know and love. I'm not sure if it was 58 or 59 this change occurred on the 8.75 housing ends.



[bigaadams]

finding information on the net is tough...they are known as the Forward Look...but in reality, they the Forgotten Look..just not a popular series for retro.
