Vacuum line routing for 1971 Charger Headlamp Washers

[Convertcuda]

Would anyone have any info on how the vacuum lines where routed on a 71 charger headlight washer system. Any information on how the vacuum part of the washer system works? Thanks for help!



[mbc0724]

Would anyone have any info on how the vacuum lines where routed on a 71 charger headlight washer system. Any information on how the vacuum part of the washer system works? Thanks for help!

Would anyone have any info on how the vacuum lines where routed on a 71 charger headlight washer system. Any information on how the vacuum part of the washer system works? Thanks for help!

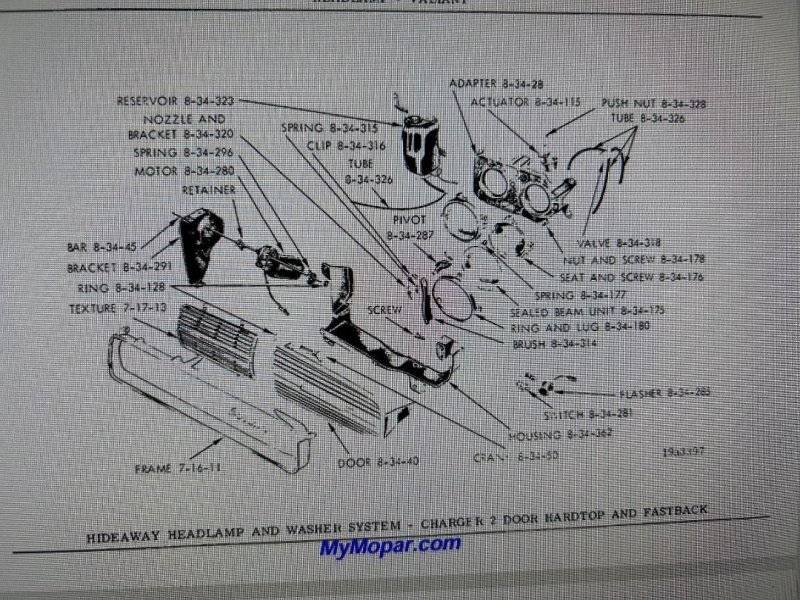

This is from the parts book. A photo of the routing system on an actual car would probably be better.



[Convertcuda]

This is from the parts book. A photo of the routing system on an actual car would probably be better.

View attachment 1713298

Thanks,I bought this car in boxes trying to figure out how vacuum routing goes and how the wiper brush gets turned on. Hoping more will chime in.



[mbc0724]

Thanks,I bought this car in boxes trying to figure out how vacuum routing goes and how the wiper brush gets turned on. Hoping more will chime in.

Send me a private message and I will reply to your message with some pictures



[1 Wild R/T]



[JG71B]

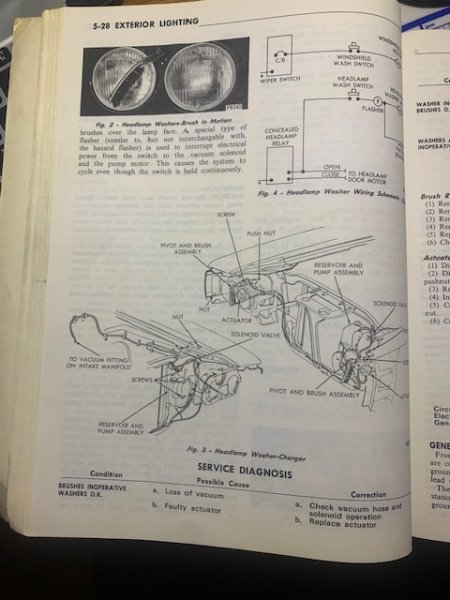

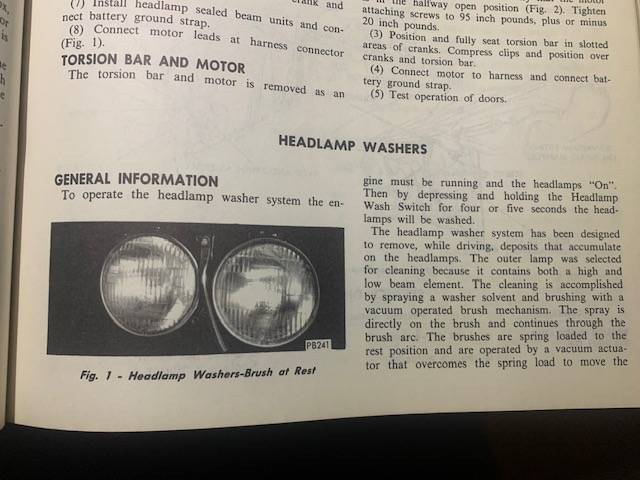

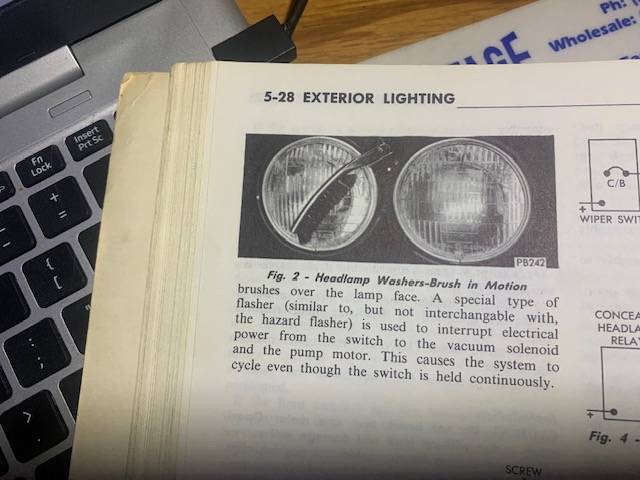

View attachment 1713339View attachment 1713340View attachment 1713341

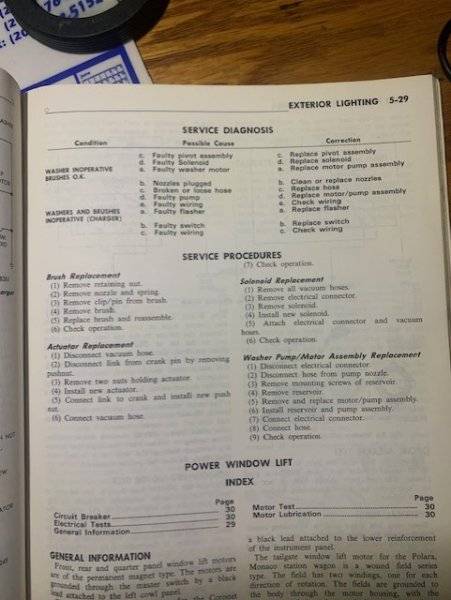

View attachment 1713342

These manuals are gold! I have original body, chassis and interchange manuals for the 71 and wife's 73. Worth the money



[Convertcuda]

View attachment 1713339View attachment 1713340View attachment 1713341
View attachment 1713342

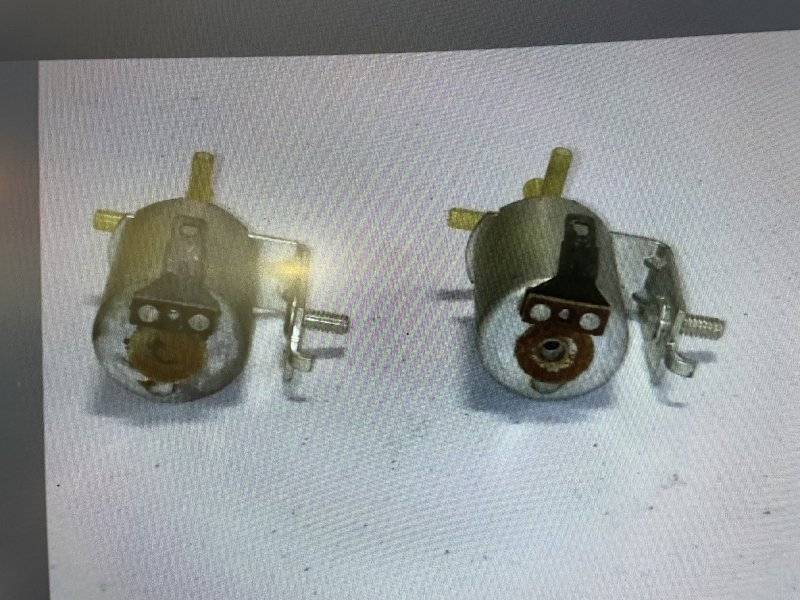

Thanks - hoping I can see a pic of the solenoid on actual car. I see it in the pic but hard to make it out on the core support.



[1 Wild R/T]

Thanks - hoping I can see a pic of the solenoid on actual car. I see it in the pic but hard to make it out on the core support.

I've never seen the actual system, I just happened to get this body service manual years ago & remembered seeing the headlight wipers in the manual... I dug it out & snapped photos of that info... I'm betting it was a pretty rare option...



[Convertcuda]

I've never seen the actual system, I just happened to get this body service manual years ago & remembered seeing the headlight wipers in the manual... I dug it out & snapped photos of that info... I'm betting it was a pretty rare option...

Yep thanks for the effort and gives me a idea where it might go. The actual car with this option would super awesome. My came with it but all in boxes



[Convertcuda]

Yep thanks for the effort and gives me a idea where it might go. The actual car with this option would super awesome. My came with it but all in boxes



[Turboflite]

The P refers to the placement of the solenoid and the 2 holes in front of hood bumper seams to correspond to solenoid bracket. The tubing also looks like it all end up in the area.
But I have never seen it either.
