What goes behind the lens of a Rallye cluster

[69hemibeep]

So you don't see the white housing around the gauges? 69-70



[SgtSuperbird]

I'm not sure what you are seeing:



[SgtSuperbird]

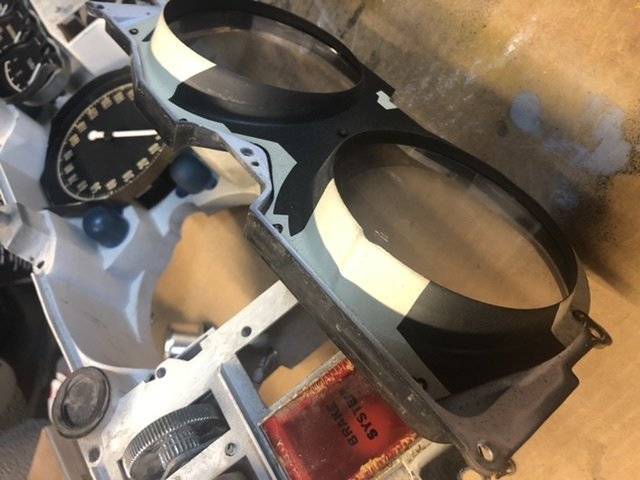

Oops...the last picture was a "before" picture. It should be:



[69hemibeep]

I can see the white housing around the gauges. The cluster I picked up was missing the lense so I got an after market one. when I put the bezel on the blue light sockets and white housing are still visible. I can post a Pic if it would help. I'm guessing there is a shield that goes behind the lens that blocks the housing out of sight.



[Lionized]

I can see the white housing around the gauges. The cluster I picked up was missing the lense so I got an after market one. when I put the bezel on the blue light sockets and white housing are still visible. I can post a Pic if it would help. I'm guessing there is a shield that goes behind the lens that blocks the housing out of sight.

Your lens should have "blackout" printed on it. If it doesn't, it's not an accurate reproduction because the factory lens has this.



[davek]

I can see the white housing around the gauges. The cluster I picked up was missing the lense so I got an after market one. when I put the bezel on the blue light sockets and white housing are still visible. I can post a Pic if it would help. I'm guessing there is a shield that goes behind the lens that blocks the housing out of sight.

post a pic please



[69hemibeep]

Computer problems I'll get them posted



[69hemibeep]

A member on my moparts thread posted a picture of a metal piece that is fitted to the back of the lens that I need.
