Where does this go?

[texas69bee]

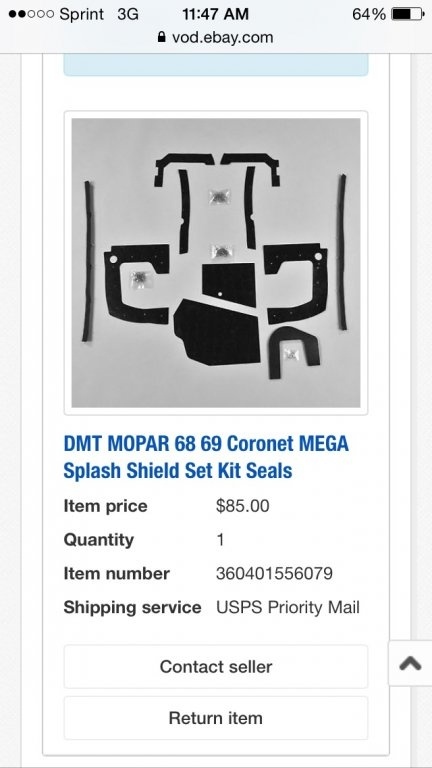

Where does this gasket go? I don't remember seeing anything like this when I took it apart. It's the one in the pick that looks like a big letter C with the hole in the corner. Pics are appreciated!!!



[69Runner]

At the back of the front wheelhouse, from the inner fender, upwards across the fender then down the inside of the fender.



[texas69bee]

Behind the splash shields?



[69Runner]

Behind the front wheel, towards the firewall. I took a picture looking back and up from the front wheel. This one has come loose, so you can see which way the hole orients. Give me a sec for the pic.



[69Runner]

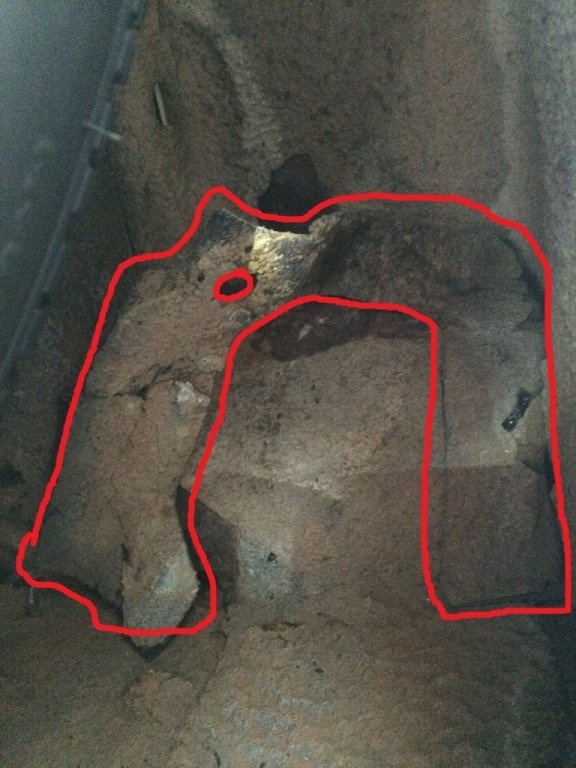

Wheels turned left, looking up and back into the driver side wheelhouse. This one is hanging down a bit at the top left corner, and covered in undercoating. But you can see the shape and orientation.



[Big D A12]

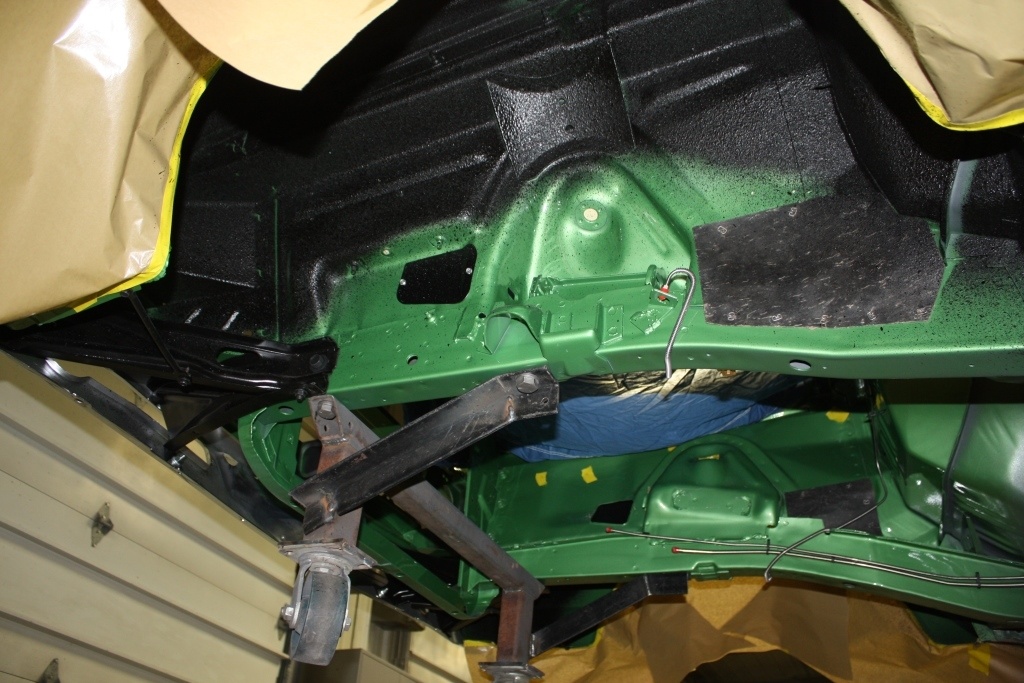

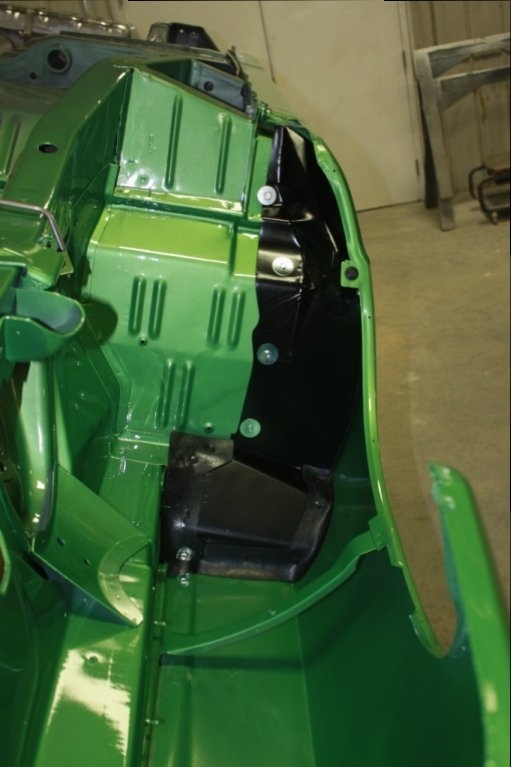

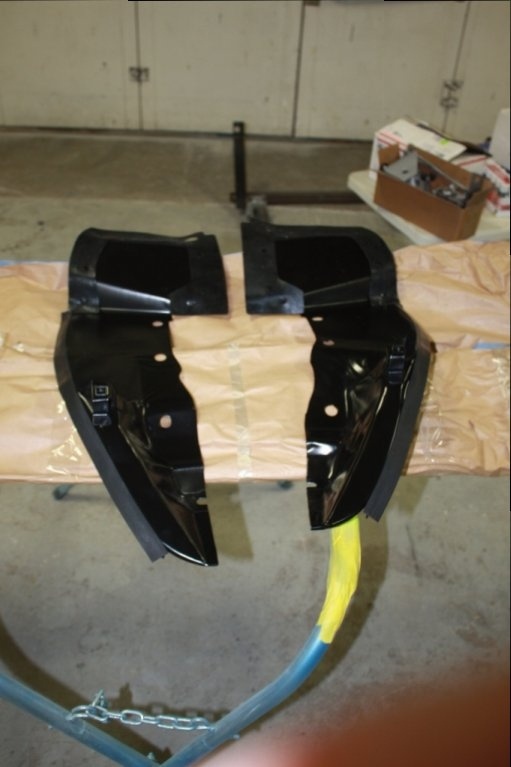

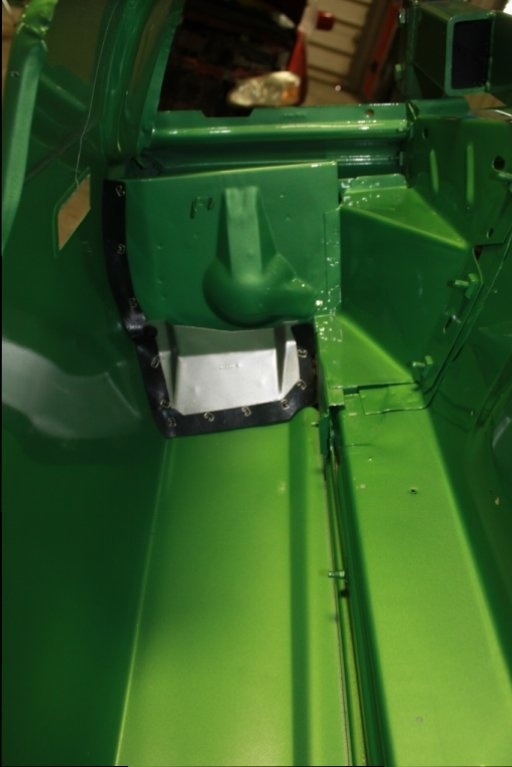

Here are a couple of shots of mine before I covered them with under coating. The last piece not shown in the pictures below is for the splash sheild on automatic cars.

Hope this helps.

D



[texas69bee]

Thanks guys, that helps a lot. The car is getting closer to being done and looking forward to posting pics.
