Will a10 inch wide wheel fit 1969

[pro-streeter]

Has anyone been able to fit a 10 inch wide wheel with no modifications including rolling or cutting the fender lip?
If so what offset worked and how much tire would fit. I have a 69 road runner
Thanks for any information.



[GetX'd]

No way could I fit those under my 68 GTX - the 69 is basically the same car. I say that then I had a friend back in the day that fit 10” cragars under his 68. It’s all in the backspace. Sorry but I don’t know what it was.



[Kern Dog]

Yes.

Here is what I often do. I take the wheel and tire that is already on the car and measure the clearance it has to the leaf spring and to the wheelwell lip. Now if you have a 7 inch wheel and have 2 inches of clearance to the leaf springs and 4 inches to the edge of the wheelwell, add it all up and see what sort of wheel you can fit. I try to keep at least an inch from everything just to allow for chassis flex.



[1 Wild R/T]

I have 315/45-17's on 17x11" rims for the back of my Coronet. They have about 3/4" clearance to the outer wheel lip & the same to the spring....



[Kern Dog]

Most aftermarket aluminum rims run about an inch wider than their advertised spec.....Since they measure the distance inside the bead to the inside of the other bead.
3/4" is tight!



[1 Wild R/T]

Most aftermarket aluminum rims run about an inch wider than their advertised spec.....Since they measure the distance inside the bead to the inside of the other bead.
3/4" is tight!

I've run as close as 1/4" to the spring.... And never had it rub... The outer lip I've had issues with when you get down to 1/2".. Never a problem with 3/4"...



[Mopar Hunter]



[91r/t]

I have a 68 Roadrunner and I can't imagine trying to stuff a 10" wide rim on it without rubbing when hitting bumps. At stock ride height, that wheel well up inside the top has got to run when hitting bumps. Mine has a 255/70 tire and an 8" rm on the rear and it rubs over any decent bump. I understand it may fit on the ground, but when you stuff that much tire in there on the low Plymouth quarter panel, its gotta be damn close. I myself wouldn't go bigger than 275/60/15 and even then I'd be watching that tire. The Plymouth wheel well is definitely a bit different then the Dodge with that low wheel well lip.



[gkent]

10" wide rim - NO PROBLEM. BUT, You can't run anything taller than a 28" tire. I'll measure mine later today and post.



[YY1]

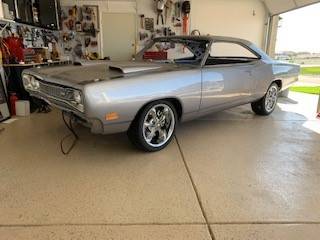

I had 10" Cragars with a lot of dish on my 70 Bee.

No issues.

...of course I ran the air shocks up quite a bit.

IIRC it just barely scrubbed in hard cornering if the shocks were down.



[toolmanmike]

Sure they'll fit. Dang, mine might have been 8's



[gkent]

Bee is a lot different than a RR !!!



[440SportSatellite]

Sure it will. I ran 295/50-15's on a 15x10 with 5.5" BS for a few years on my '69 Sport Satellite. The passenger side would rub just a little bit in the top of the wheel well when I went over a big bump. Nothing that I couldn't live with. Probably put 5000 miles on the car with those wheels and tires.



[gkent]

Here’s what’s on mine. Looks to be about 6” backspace



[Mocajava]

9" in Front and 10.8" X18"in back..Ridler Rims and plenty of room



[pro-streeter]

Thank you this has been very helpful



[SSmoothie]

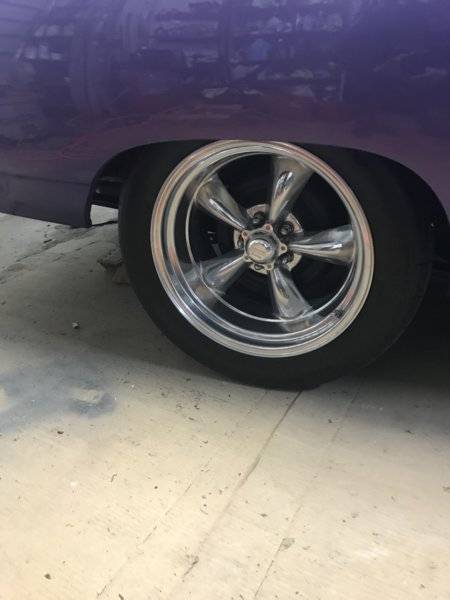

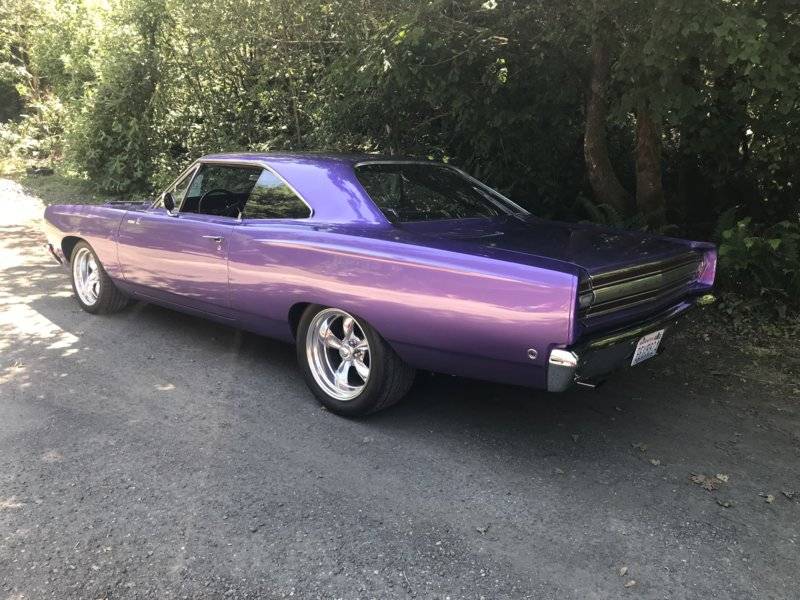

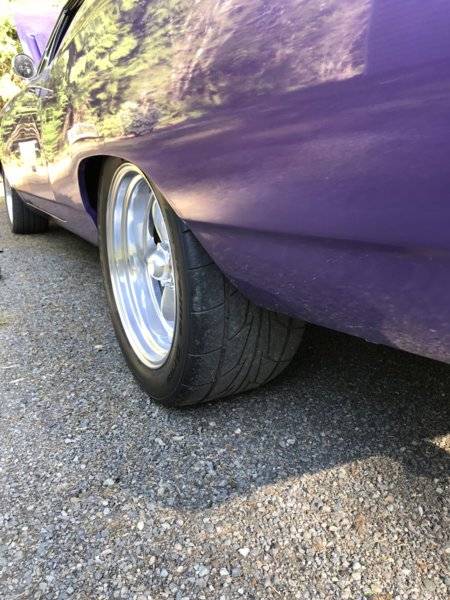

Yes, 305/40/18 10 inch, no sure of off set about 5 inches I think. No rubbing.



[whayden2003]

Yes, 305/40/18 10 inch, no sure of off set about 5 inches I think. No rubbing.

View attachment 850778 View attachment 850779 View attachment 850781

That's a nice combo right there.



[TJ74]

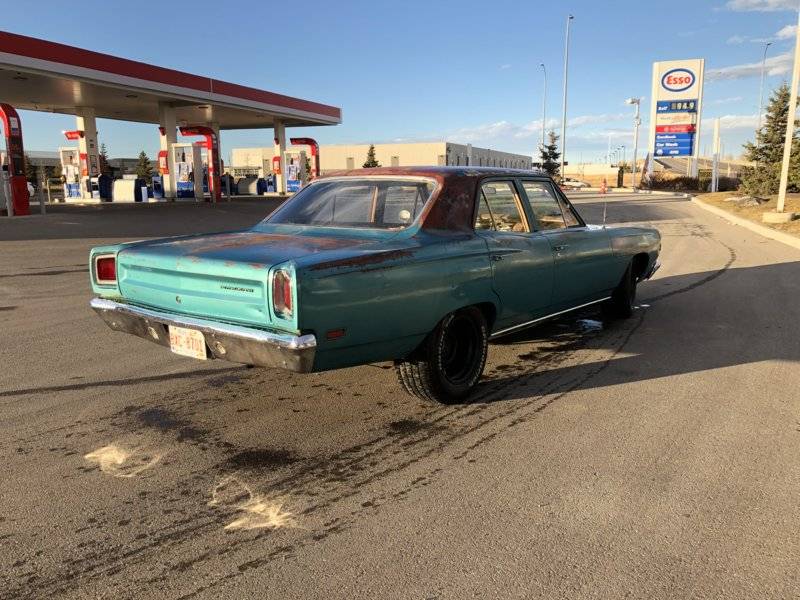

I have 10x15 on the rear with 275 on it no problem at all



[pro-streeter]

I have 10x15 on the rear with 275 on it no problem at all View attachment 869950

Thanks for the post. Do you happen to know your offset? Is it 5 inches possibly? Where did you purchase your wheels from?
Thanks again
