WTB headlight door relay upgraded version

[Roger63]

Does anyone know where to get an upgraded headlight motor relay



[Xp29h]

Is this what you're looking for?

http://www.chargerspecialties.com

Look at very bottom..



[Roger63]

Nope but thanks. Its the relay for headlight door motor on a 71 charger



[mrsnicks]

Are you talking about a Bosch 5 prong relay?



[Nacho-RT74]

Nice diagram!!!

:grin:



[mrsnicks]

All credit for the diagram goes to Nacho.. I can't remember which b-body website I got it, but I definitely got it from Nacho.



[Nacho-RT74]

Is this what you're looking for?

http://www.chargerspecialties.com

Look at very bottom..

Sometime ago they had available a repro relay for hidden headlights motor, but it seems not anymore.

But classic industries does ( altough out of stock by now ):
http://www.classicindustries.com/product/mopar/parts/mb371.html

I think you can remove the housing/bracket and insert it on your original one.

- - - Updated - - -

All credit for the diagram goes to Nacho.. I can't remember which b-body website I got it, but I definitely got it from Nacho.

LOL, no need for that!!!

but it's nice what is done can help to lot of ppl.

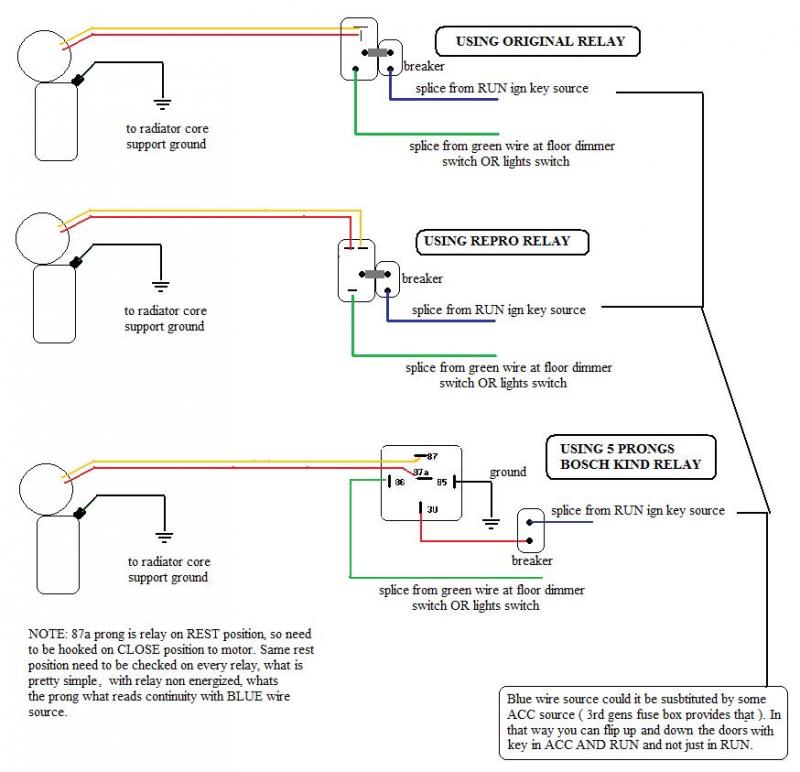

Diagram ilustrates how to wire the repro relay and also a regular 5 pins Bosch relay to make work the hidden headlights system



[Roger63]

Thanks all this has been one of those annoying things that I needed to address



[A383Wing]

Nacho posted the diagram on DC.com...all credit goes to him...make your relay from a Bosch 5 pin style...best upgrade available.

I make 66-67 Charger headlight motor relays from the Bosch units as well, plus I also have upgraded power window relays here also



[Roger63]

Yes thanks I already got your p/w upgrade works perfectly



[pbiggs]

Nacho posted the diagram on DC.com...all credit goes to him...make your relay from a Bosch 5 pin style...best upgrade available.

I make 66-67 Charger headlight motor relays from the Bosch units as well, plus I also have upgraded power window relays here also

Hi..what is the cost of the Bosch relay set you make?
Thanks, Pat
