Still in the process of re-wiring my car... switched to a one wire Alt/internally regulated proform 110amps... when I got to the point where I could start the car, as soon as I put it in ACC the ign wire running to the alt starts to melt. I can not figure out why... I’ve checked grounds. Maybe I have it wired wrong (probably) ??? The alt has 2 studs and 1 field terminal... 1 stud goes to a 12v power terminal, the other stud is used for a ground and the field wire (brown) runs to my fuse block and lands at the terminal with the ACC from the ignition switch. I am not using a regulator or ballast bc I’m running a Pertronix 512 ignition box. Any help would be appreciated... I’ve searched for “like” issues but haven’t found anything close to my situation... thanks in advance



[Frankb]

What year and car? One wire alts have one wire only. This would be a wire running straight to the battery. Need a little more information



[dyolf82]

73 charger... Ron Francis wiring harness but that may be my issue. I wired it up as shown on the print so basically as a 3 wire alt. I think removing the brown wire running to my fuse block might remedy the situation. I didn’t realize they counted the batt wire as the one wire, I thought it meant 1 field wire.



[Frankb]

Remove the field wire. Run an 8 gauge wire from bat terminal on alt directly to the battery. Starter relay would be OK also. Never used a Francis harness but it should not make a difference. You must also remove voltage regulator from the circuit. One wire alts are internally regulated and do not require an external voltage regulator.
Frank



[dyolf82]

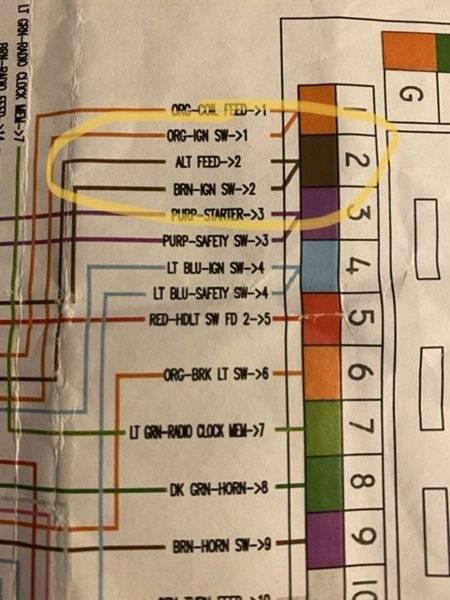

Yea I think the problem is I hooked up a wire to the field and ran it to the number 2 terminal as shown in the picture... I’ll try that, thanks... hopefully it’s that simple
