1963 belvedere sun visor

[stage3]

any body have any pics of the mounting holes on there '63 Plymouth sun visors and the actual mounts themselves? I installed the headliner today,without looking at the mounts...I "assumed"(I hate that word)that the sun visors I bought 2 years ago were correct..

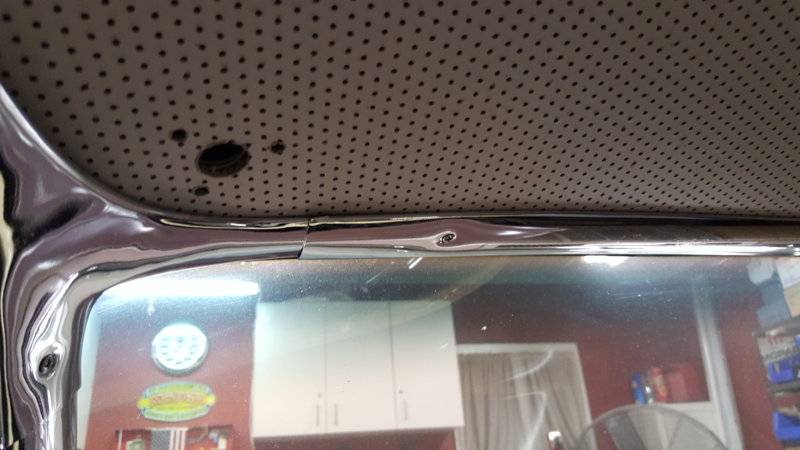

my visors have a 3 bolt mount,,but I can find 4 holes thru the headliner with a probe?....thanks..



[miller]

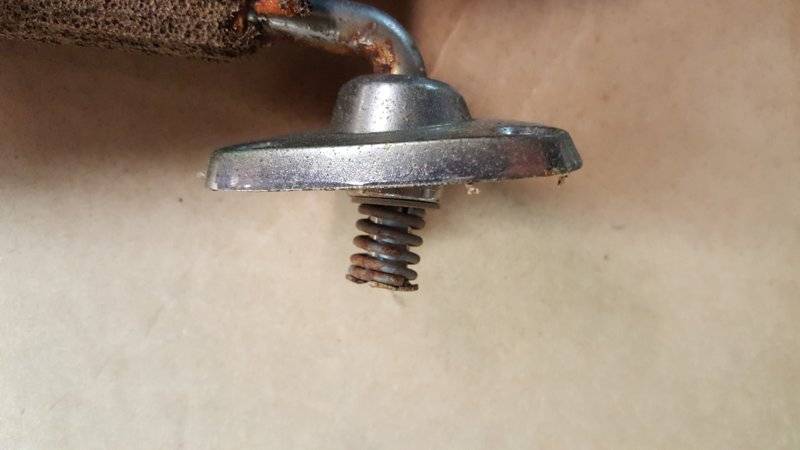

Are you sure the fourth hole isn't the one for the swivel spring arm? Would be in the center of the three screw mount holes.



[stage3]

Are you sure the fourth hole isn't the one for the swivel spring arm? Would be in the center of the three screw mount holes.

the large hole was easy...even a google search did not turn up a pic of either the mount or an actual '63 visor..and my shop manual does not show it..I would leave it off except now theres a hole cut for the spring swivel....



[khryslerkid]

The '62 should be the same, but don't hold me to it.
Here's the '62 ...

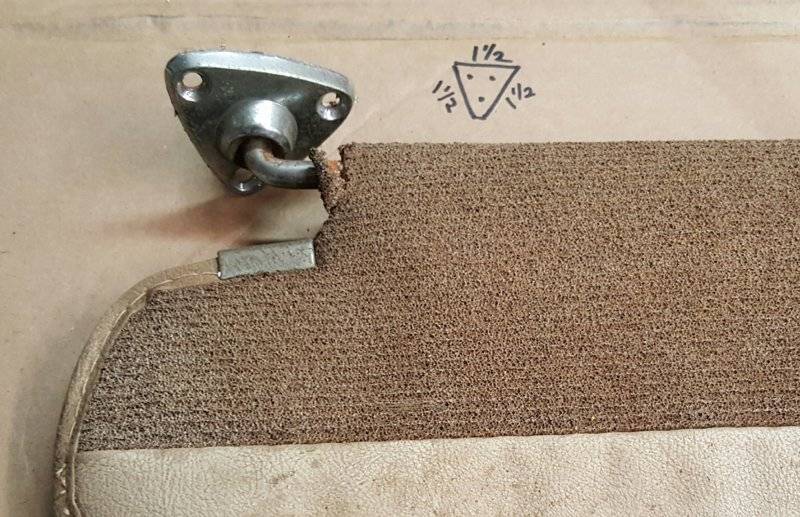

In the pic it shows 1-1/2" but it's closer to 1-3/8" center to center of each hole.

Hope this helps. BTW, I'm looking for a good set.



[khryslerkid]

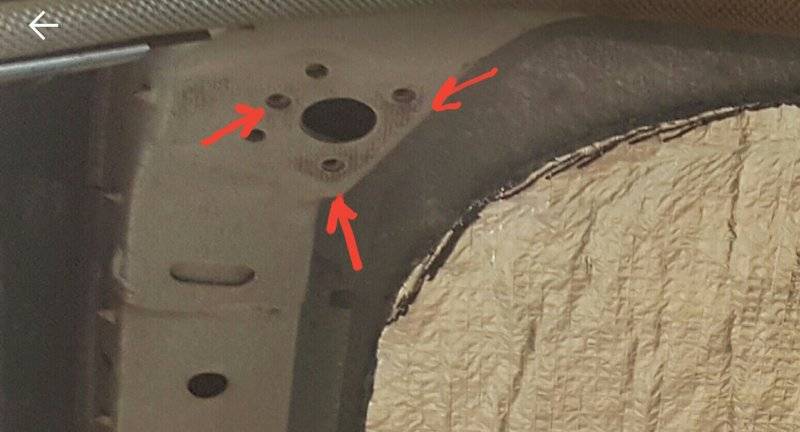

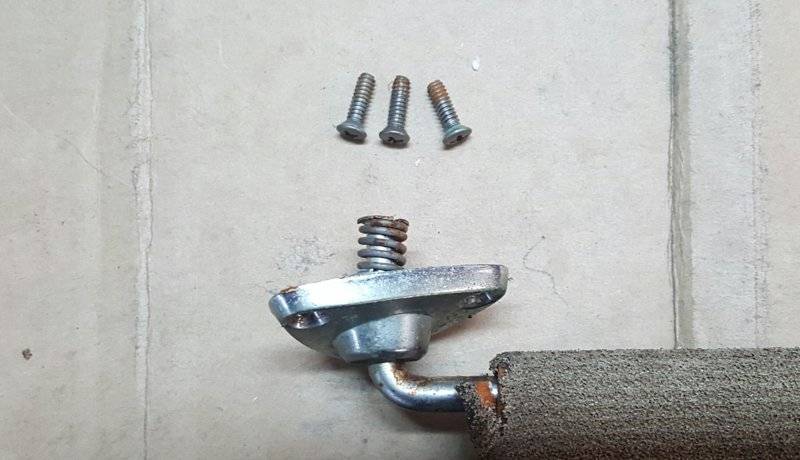

Found your extra hole. The three holes used are tapped for machine screws. (10-24 x 1/2") There are others there too that aren't tapped.



[stage3]

The '62 should be the same, but don't hold me to it.
Here's the '62 ...

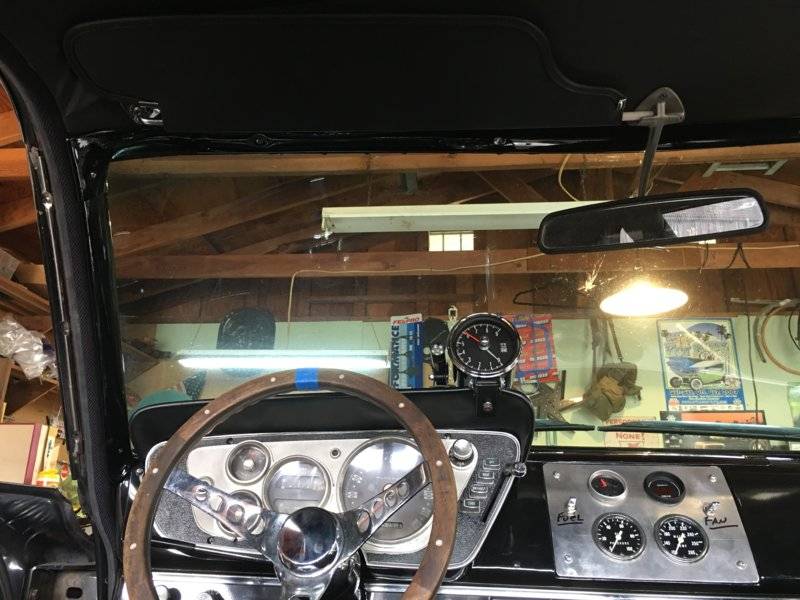

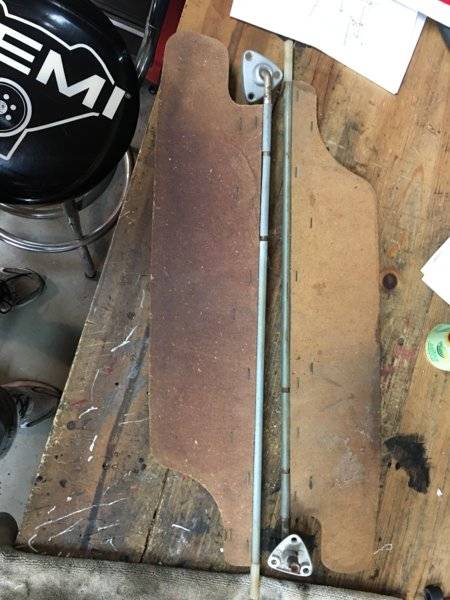

u the man!!thanks a lot..your pics made it work...if u were close I would buy u a hamburger...I may have 2 original units pictured that I wont use..there complete frames,no cloth..don't know wheter that helps or not..I bought new repro's already covered and installed new chrome mounts and new nylon mirror stubs..



[khryslerkid]

u the man!!thanks a lot..your pics made it work...if u were close I would buy u a hamburger...I may have 2 original units pictured that I wont use..there complete frames,no cloth..don't know wheter that helps or not..I bought new repro's already covered and installed new chrome mounts and new nylon mirror stubs..View attachment 608849 View attachment 608850

Glad I could be of service.

I have my original ones. I might just have them recovered with vinyl material I have leftover from the seats. I see REM makes them. They advertise $134 but I don't know if that's each or by the pair. Anyway, glad you got it
