1964 belt routing

[64Bob]

I have a 1964 Plymouth with a 361 engine, Air Conditioning and Power Steering. The routing of the belts on the car are not like the diagrams in the manual. Can someone tell me if the diagrams in the manual are correct? I will make a diagram of the belt routing on the car and hopefully I'll figure out how to post it. Is there anyone near Chicago that would let me take pictures of their cars engine?



[qkcuda]

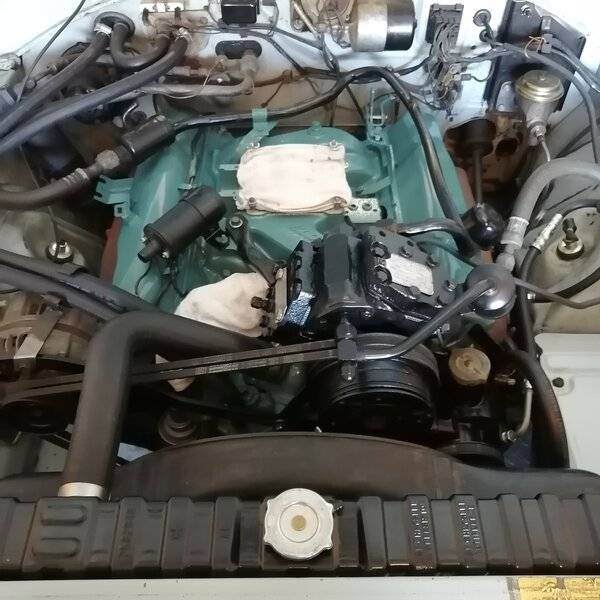

Here is my 66 361 with air. It's not the greatest picture. What you are missing is the water pump belt which runs on an idler pulley just under the alternator .



[64Bob]

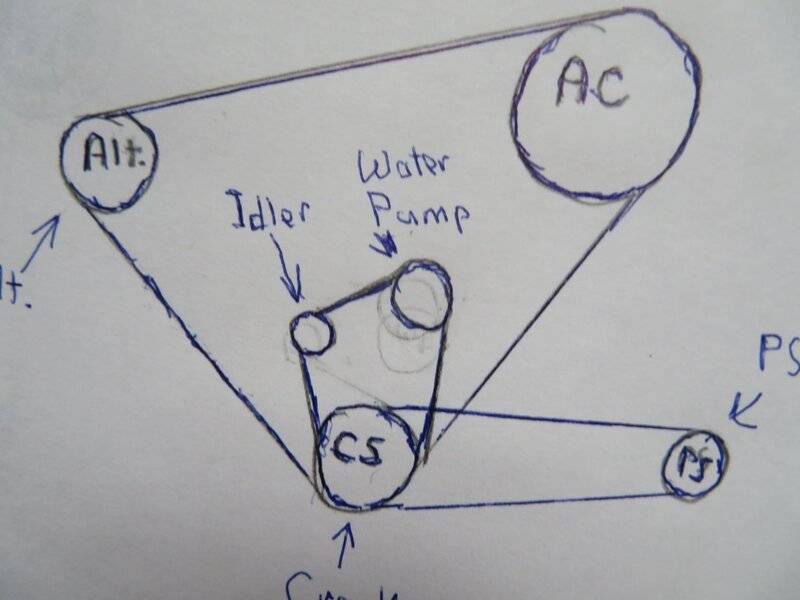

Hopefully this works. Here is a diagram of the belt routing on my car.

Alternator and AC are 2 groove pulleys.



[64Bob]

Here is a photo of the AC compressor, does it look correct for a 1964.
