1967 charger console wires

[charger10]

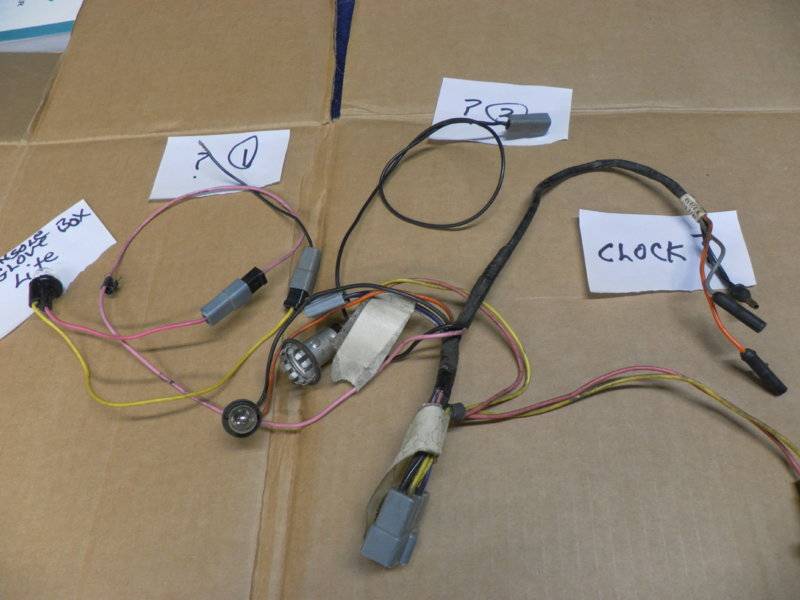

not sure where several of console wires go to. can anyone help? I have marked them 1 and 2 , also I assume the 3 wires that a taped together go to a clock - which I don't have.



[miller]

not sure where several of console wires go to.

Best bet is, look in your service manual. Same issue on my 64. Wiring diagram for that harness was under the transmission/console shifter section.
Wiring ran from the console, under the carpet, to the pass side kick panel.



[charger10]

Best bet is, look in your service manual. Same issue on my 64. Wiring diagram for that harness was under the transmission/console shifter section.
Wiring ran from the console, under the carpet, to the pass side kick panel.

service manual is not clear on diagram to me for those 2 wires. the 1 that is bare at the end , may go to console box lid switch?



[miller]

Feel your pain. Yeah, some of those diagrams are tough to read. Maybe, goes with the main diagram, to find those wires, or where they go, or do. Might find some wiring, that goes off the page, and you might find them.

From the looks of them, pink is usually the power source, for a light. Black that goes with it, could easily be for ground.
