Rebuilding 1968 GTX dashboard. Looking for diagram/template to assemble dashboard. Any help is appreciated
1968 GTX Dashboard Assembly Diagram
- Thread starter Bajaracerx
- Start date
MoparMitch
Well-Known Member
- Local time
- 12:37 PM
- Joined
- Apr 12, 2011
- Messages
- 3,826
- Reaction score
- 2,893
- Location
- Friendship, Maryland

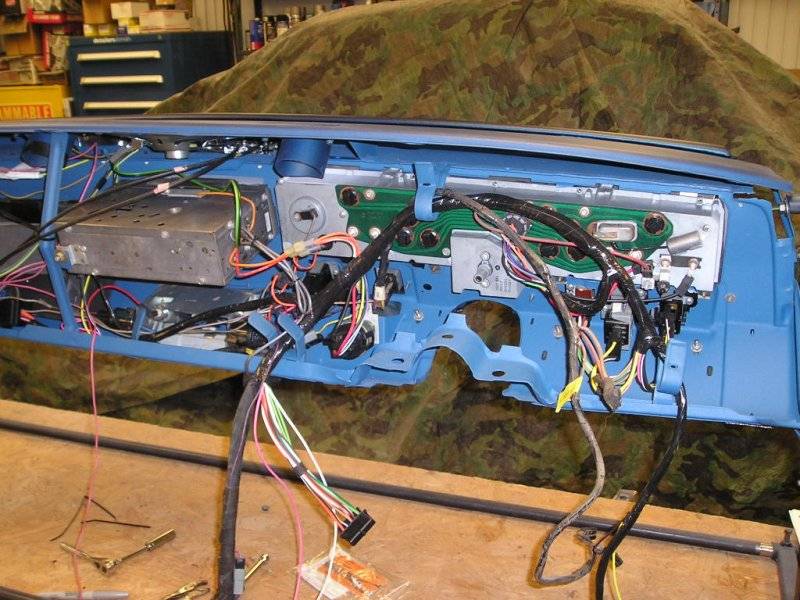

I don't come here much anymore. But go look at my build thread ....Golden Rotisserie Chicken....It should be there....here....The Golden Rotisserie Chicken
- Local time
- 12:37 PM
- Joined
- Aug 23, 2011
- Messages
- 4,304
- Reaction score
- 10,603
- Location
- Eastampton, NJ
Bajaracerx
Member

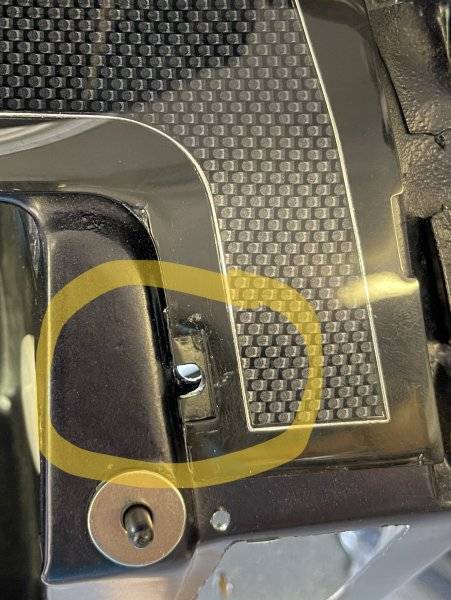

Dashboard assembly in progress. does anyone know what type of mount is needed to mount the basboard bezel highlighted to the dash frame?
There are two small studs required. One in the location you show. And one on the other side of dash. The stud is Black in color and has a rectangular head to match the the rectangle in your pic. The other side takes a sheet metal nut to retain.
- Local time
- 12:37 PM
- Joined
- Jul 17, 2008
- Messages
- 4,824
- Reaction score
- 2,748
- Location
- Southeastern, PA
Kind of a "T" shaped piece
- Local time
- 12:37 PM
- Joined
- Jul 17, 2008
- Messages
- 4,824
- Reaction score
- 2,748
- Location
- Southeastern, PA

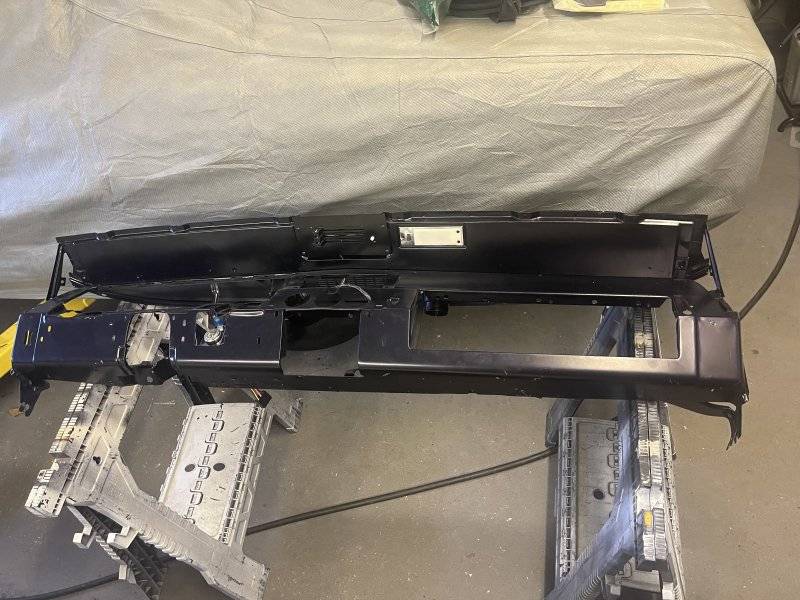

Restored dash
Bajaracerx
Member
Where can I find the T shaped bolt? I need two, one for each side
- Local time
- 12:37 PM
- Joined
- Jul 17, 2008
- Messages
- 4,824
- Reaction score
- 2,748
- Location
- Southeastern, PA
If you can't find them used (which you can't) I'd probably get a file and a few machine screws and get filing.
