1971 speedo cable routing

[rrTor-Red]

Does anyone have pictures of the routing for my RR? I can't seem to find my pictures and I think my clip is missing underneath the car. Where does the cable go through firewall, etc ? Any pictures will be helpful! Thanks



[T2R9]

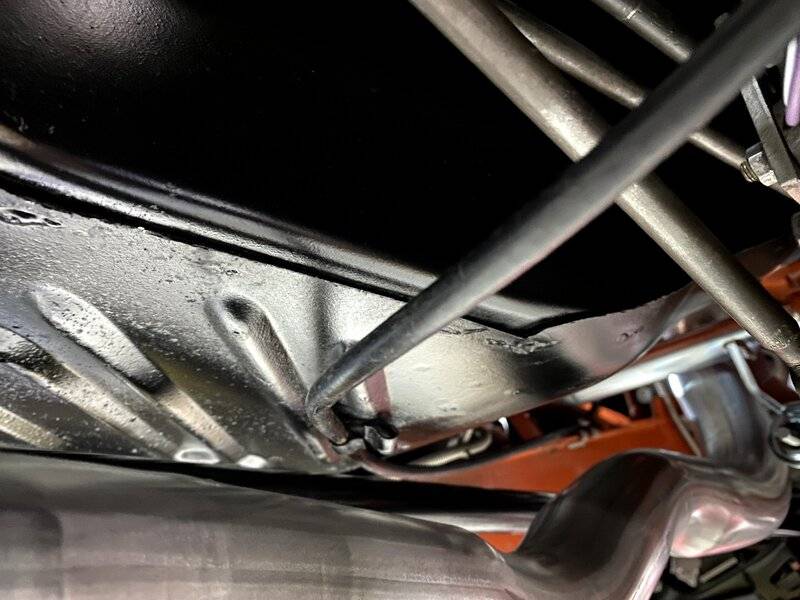

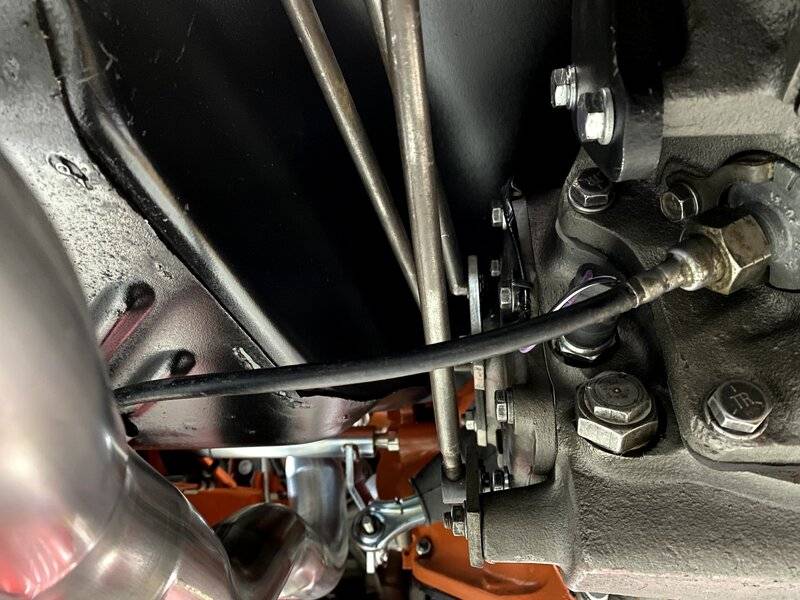

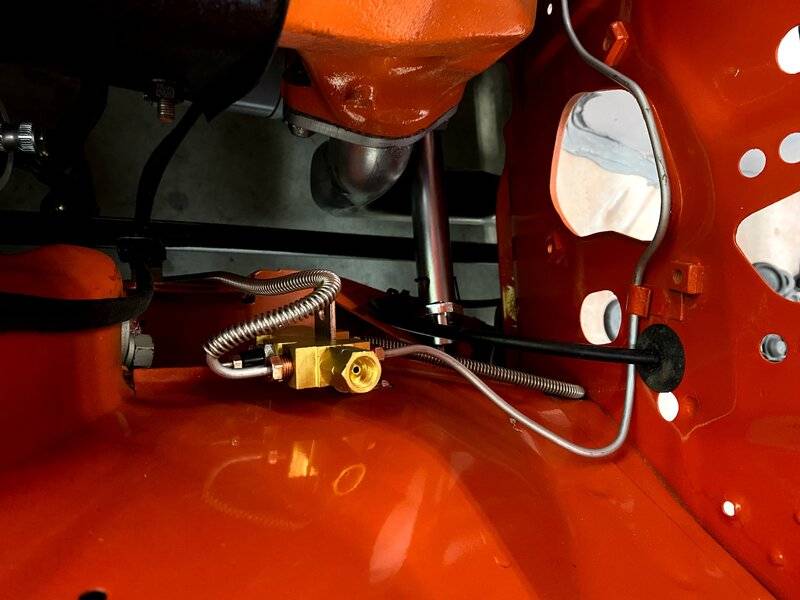

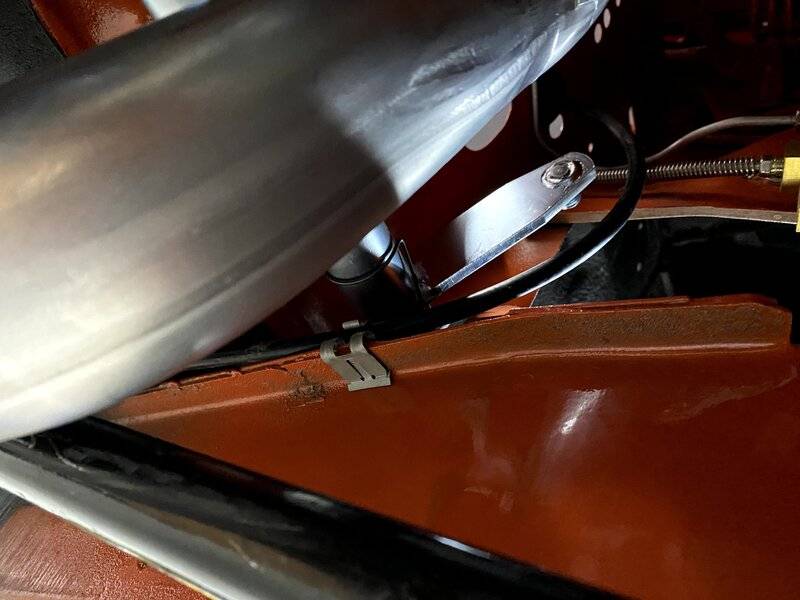

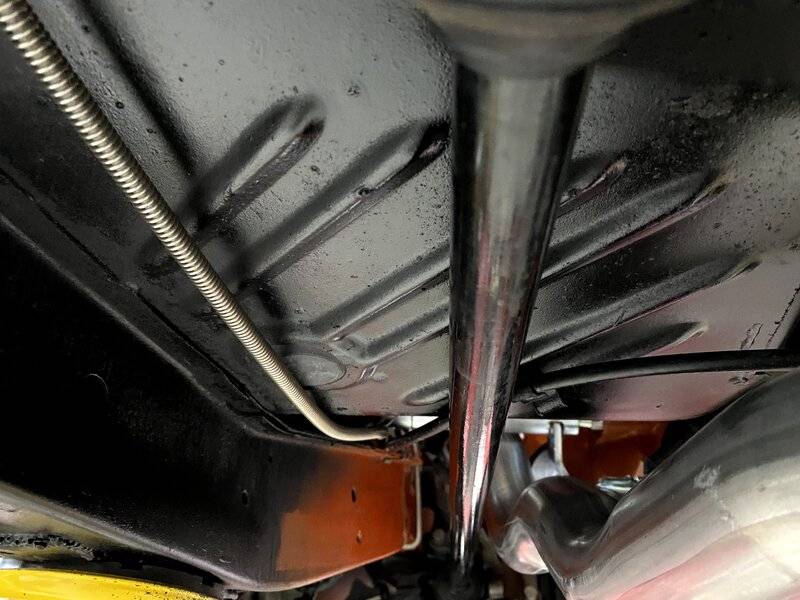

Here you go.



[rrTor-Red]

Thanks!



[tak419]

I've never seen a clip above the torsion bar fastened to the floor board. Obviously Ohio cars all have the floors rotted out in that spot lol. How is that clip held there, is it a screw ? Can you get a better picture of that particular clip and how it's fastened ? Thanks.



[T2R9]

accrued a whole 'nother penny this month!

I've never seen a clip above the torsion bar fastened to the floor board. Obviously Ohio cars all have the floors rotted out in that spot lol. How is that clip held there, is it a screw ? Can you get a better picture of that particular clip and how it's fastened ? Thanks.

Spot welded. I will see if I can round up a closer pic. Car is off the lift right now.

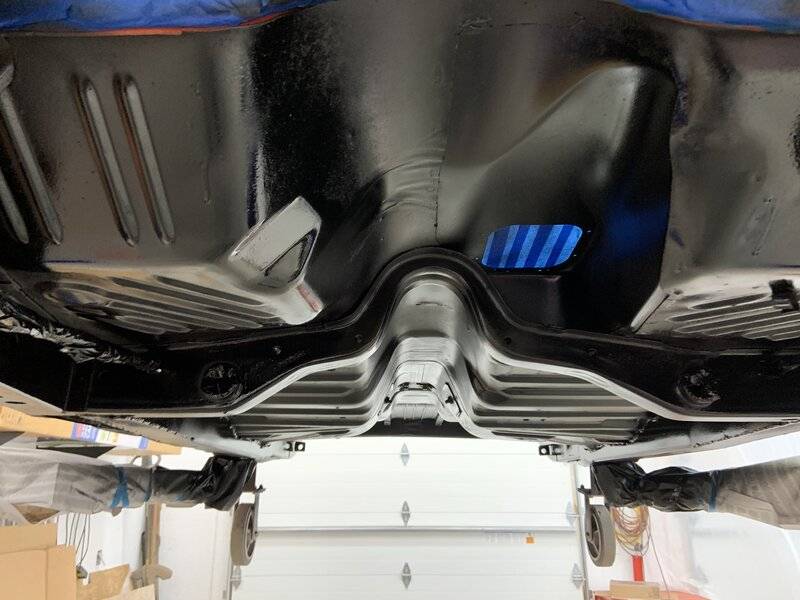

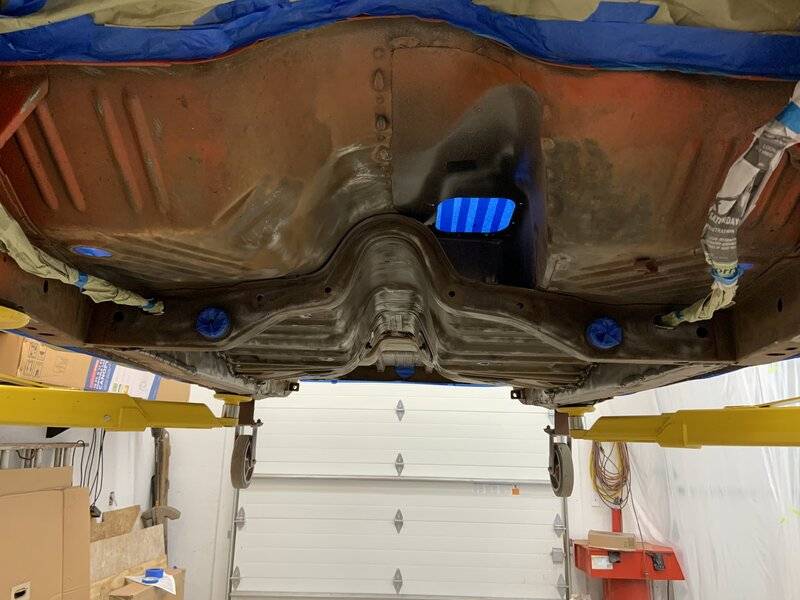

Edit. You can see it on the right in this pic.



[tak419]

Spot welded. I will see if I can round up a closer pic. Car is off the lift right now.

Thanks, that would be great. Spot welded, no wonder I haven't seen one, that's probably the first thing to rust off the Ohio car floors.



[rrTor-Red]

Thanks, that would be great. Spot welded, no wonder I haven't seen one, that's probably the first thing to rust off the Ohio car floors.

They were easy to come off. O found the other one I need, but not the one T2R posted. If ANYONE has an extra one or know where I can get one, it would be greatly appreciated. Mine came off when my car was painted.



[rrTor-Red]

Does anyone have that clip that is spot welded under the floorboard? I found the other one. Been raking my brain wondering how else to secure the cable to the floorboard if I can't find one. Ideas? Thanks!



[Bee1971]

The only rust spot on my floors , trunk floor

Is where that speedometer cable clip was spot welded to the drivers side floor board , go figure

Yes a WI car



[Bee1971]

Tor Red

Maybe call AMD

It’s included with there full floor pan as a separate piece




[Bee1971]

https://www.autometaldirect.com/amd-floor-pan-oe-style-71-74-b-and-e-body-p-817.html
