74ChargerSE440
Well-Known Member
Any additional notes and comments will be appreciated on these 1974 Charger schemes, because sometimes it seems that some wiring refers to 71-73 Chargers.

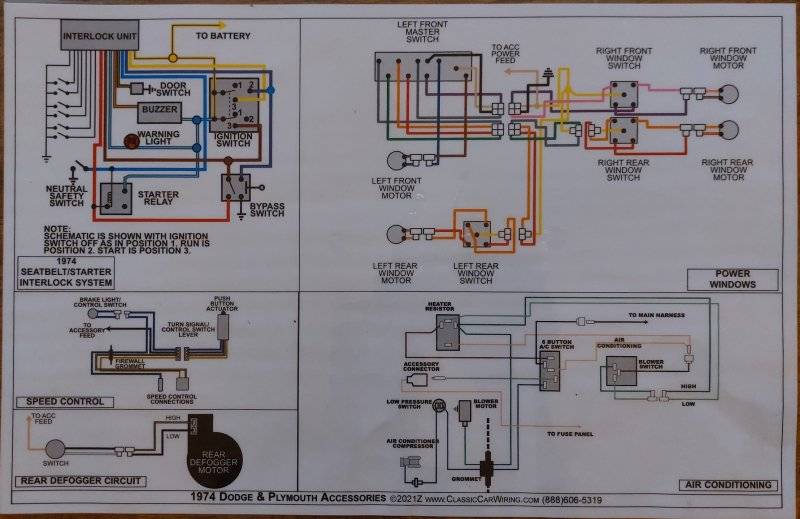

1974 Charger rallye dash wiring diagrams.
- Thread starter 74ChargerSE440
- Start date
- Local time
- 10:33 PM
- Joined
- Oct 8, 2012
- Messages
- 6,330
- Reaction score
- 2,709
- Location
- Valencia, España
Interesting! It does includes the interlock system! Not common To find this.
