318 Poly motor mounts

[11thcommandment]

I have a 64 plymouth fury with a 318 poly motor. I am trying to replace the rubber motor mounts. I took it all apart and put it back togethor. The engine isnt lining up in the center of the vehicle it is sitting off to the passsanger side. Yet it IS sitting pretty flush to the mounts. Does anyone have any photos that they could send me of the mounts? I would love to have shots from the front under the bumper thru the K frame. And one of the oil pan center . So I can see the center line and height of the engine!!
Thanx , You guys always bail me out. I'm counting on you.
AL B



[Big Bad Dad]

They are supposed to set off to the passenger side by design.



[Big Bad Dad]

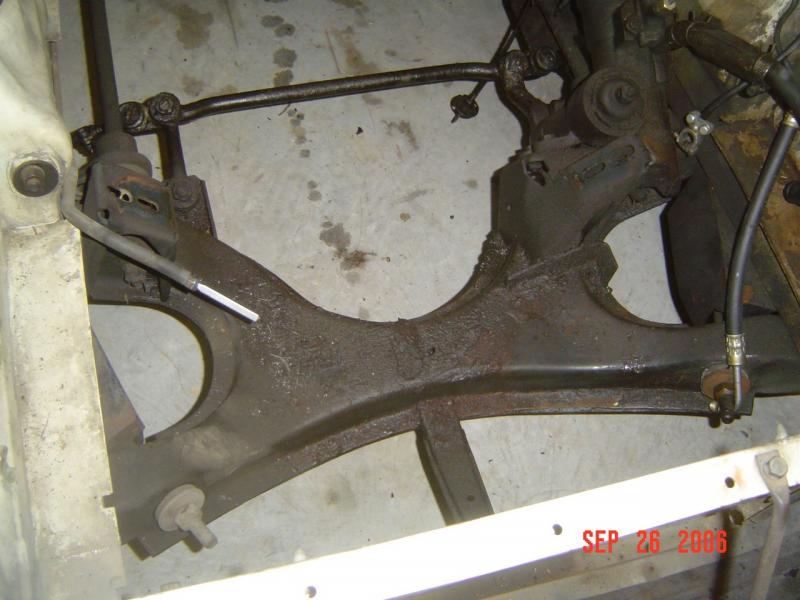

This is the K member in my 64 Plymouth right after i removed the engine. Notice how much closer the passenger side mount is to the fenderwells than the driver side one? (And it is all cleaned up and purty now.)



[11thcommandment]

Thanx Big Bad Dad. Anybody have any photos with and engine installed form the underside?



[Budnicks]

Try Schumacher Creative Services @ www.engine-swaps.com maybe, they also have shims for the mounts to level the engine or gain clearances etc., they have other specialty Mopar engine swap stuff & lots of photos or at least use to anyway....



[Darter6]

11th, Did you find the info you were looking for ? Just this week I installed new poly engine and tranny mounts from Schumacher in my 64 Belvedere with a new set of TTI 318 poly headers. If you want I can take pictures but it will take a few days to get them and have them posted.



[11thcommandment]

Darter 6 ,
I could use those pictures. If its easier take them with ur phone and send it to my phone 732 489 3482. I could use ones from the front thru the K frame. And One of the oil pan center line. I did read from the schumacher site that the brackets are different from LEFT to RIGHT side. Mayb i mixed them up. Im going out in the shop now to pul them off.
AL



[Darter6]

I'll see if I can get it done today, won't be able to get it to you till tonight. I am one of those techno challanged people.No camera phone.I'm lucky I can do this.



[11thcommandment]

LOL!! Ok darter6. I'll be waiting!!!



[Darter6]

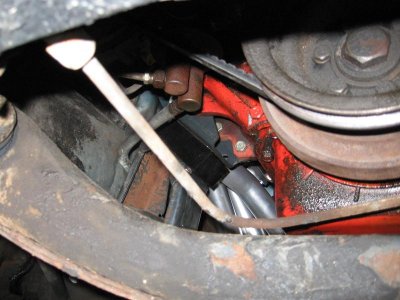

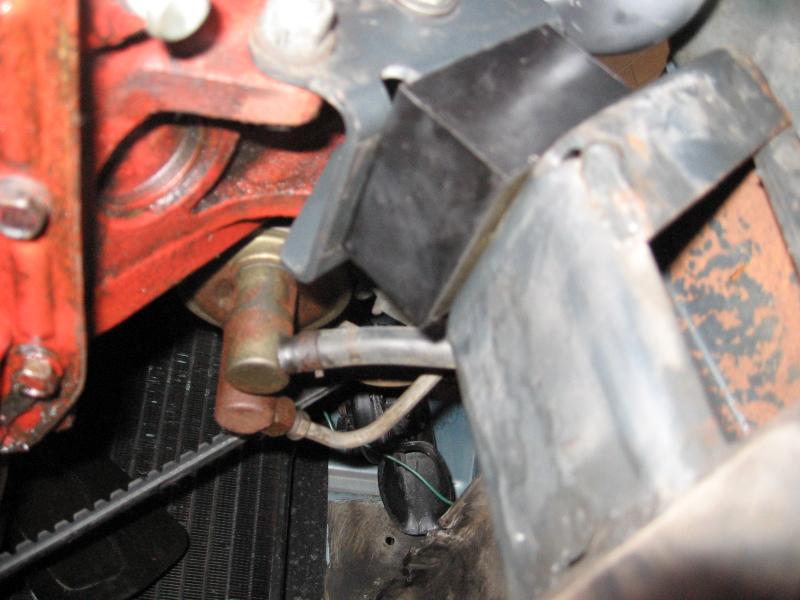

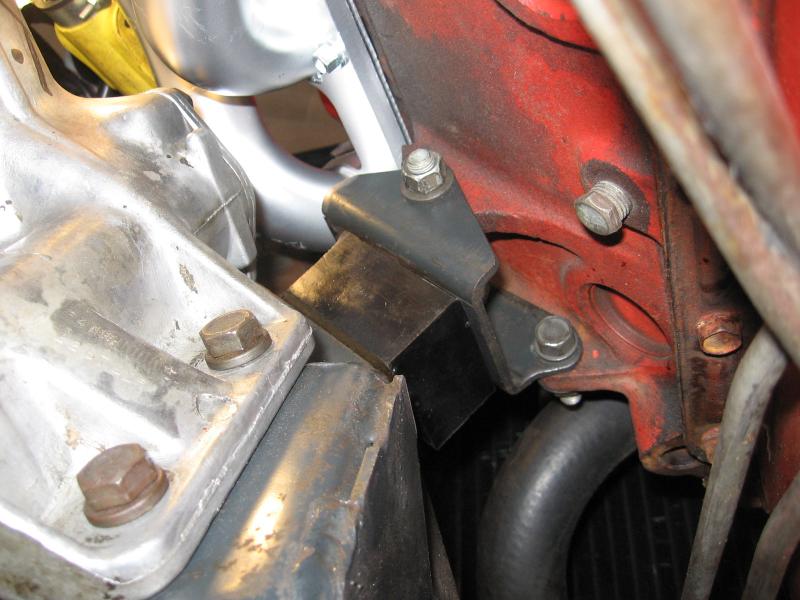

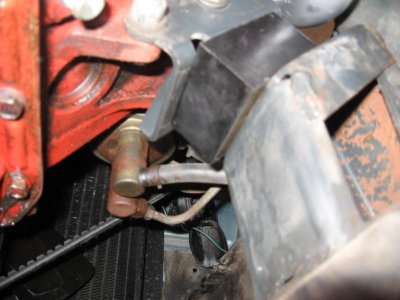

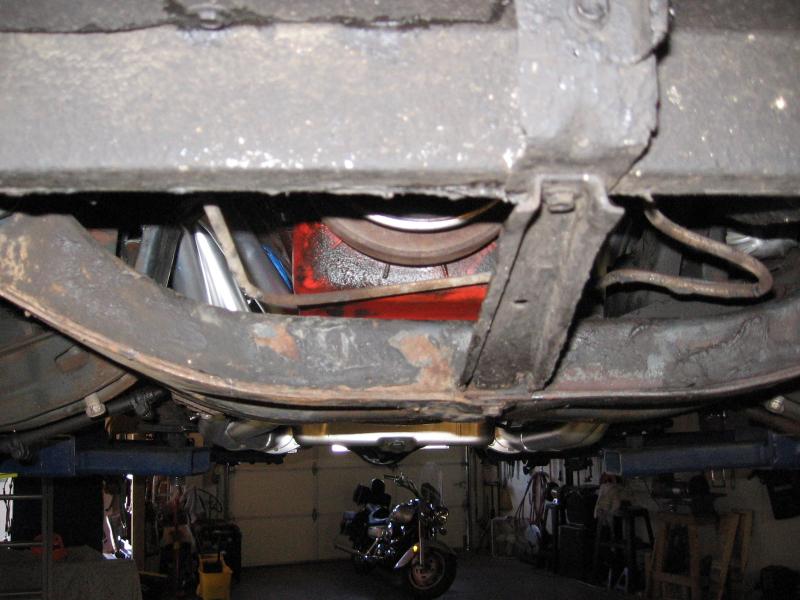

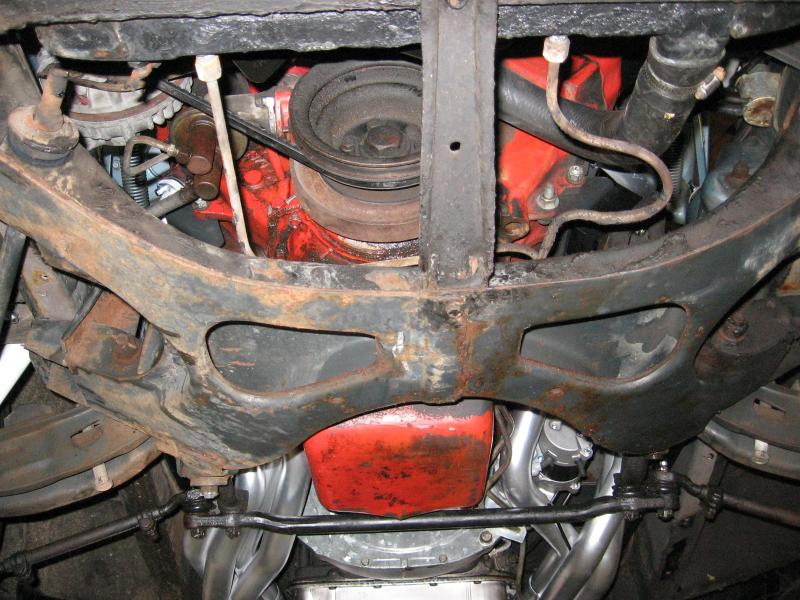

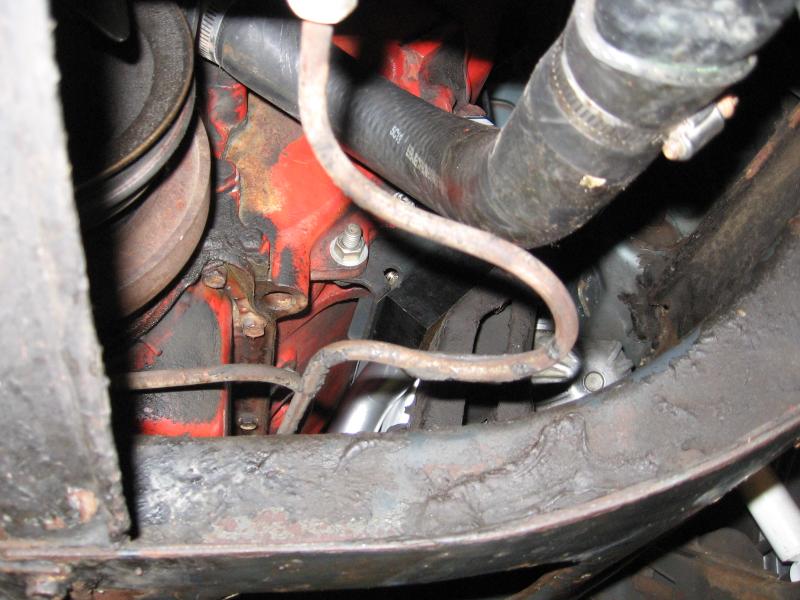

Poly Pictures

Hope this works.



[Darter6]

Not too clean but it is 49 years worth of grime,I'm a little older and just as grimey !!
I was gonna pull the motor but that would get the snowball rollin' and then the 500 inch big block would be takin' it's place. The damn poly teen runs so good I just keep puttin' it off.......



[11thcommandment]

Darter6 you gave me all the info that I need. I was correct the whole time! Damn it! Better safe than sorry. it's all good. I did the exhaust manifolds while waiting for the pictures. I love this Forum and all that's on it. Thanx to all!
