383 wire loom locations

[mightymopar]

Can anybody please post a pix of where the wire looms go on a 68 383? Both sides if possible. My car is not #s but I would like to come as I can on the engine. Thanks, Dave



[major50]

try this web site it has pics

http://www.dodgecharger.com/forum/index.php/topic,38122.0.html



[mightymopar]

try this web site it has pics

http://www.dodgecharger.com/forum/index.php/topic,38122.0.html

Thanks man.



[Kernel Sanders]

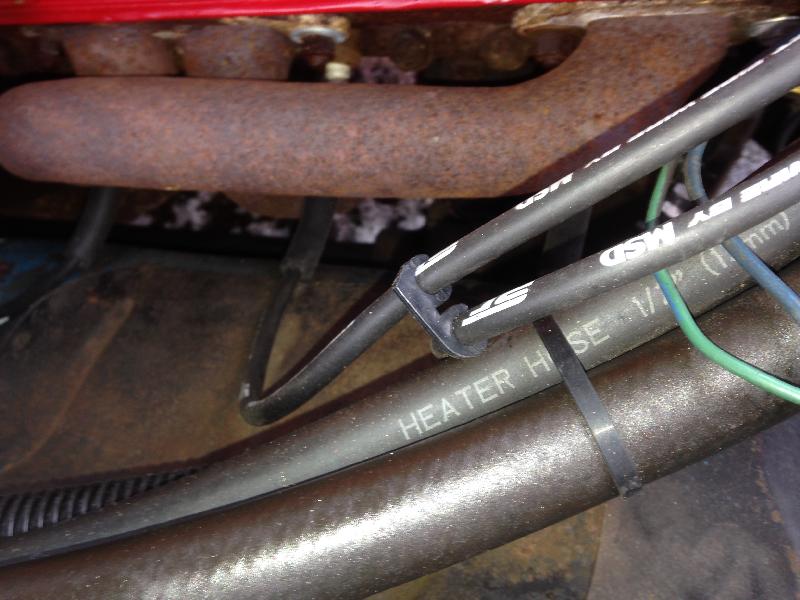

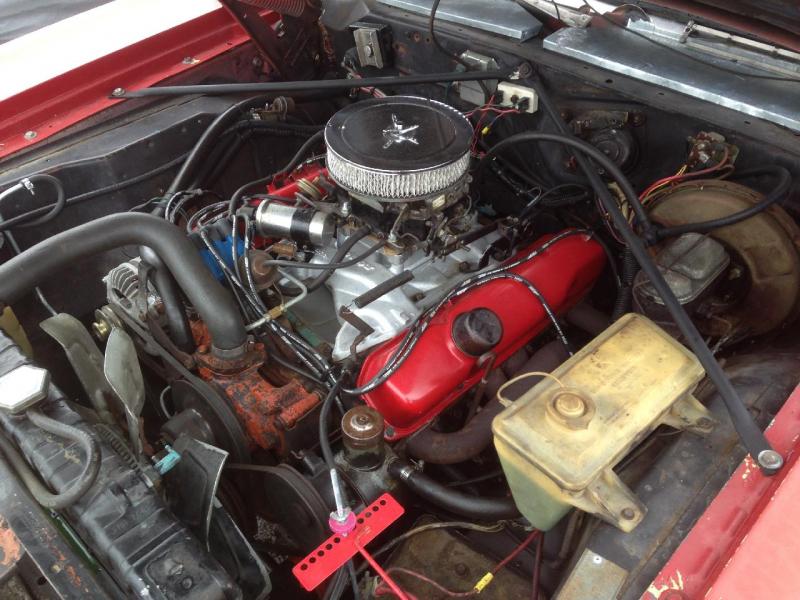

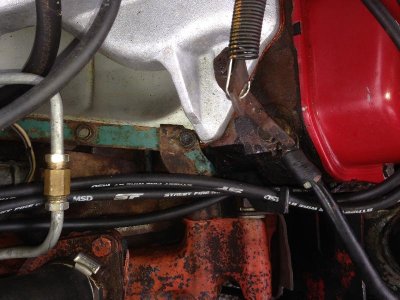

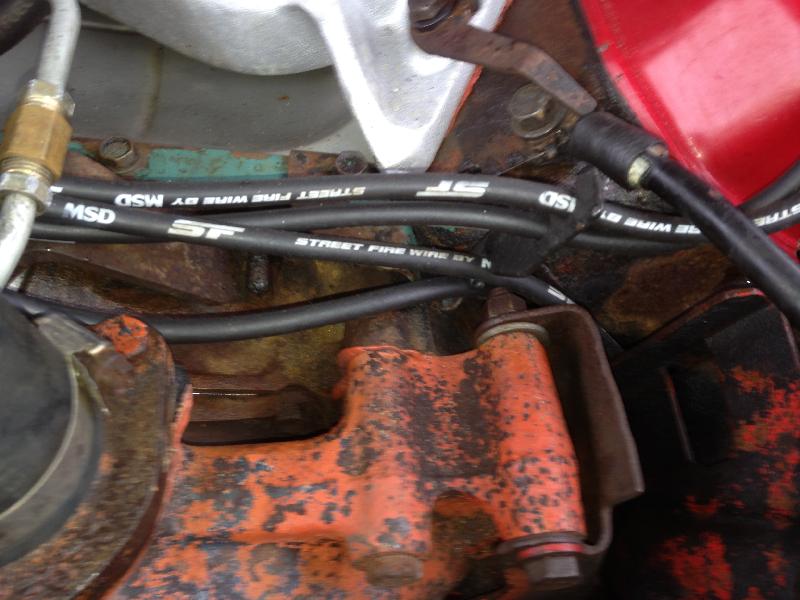

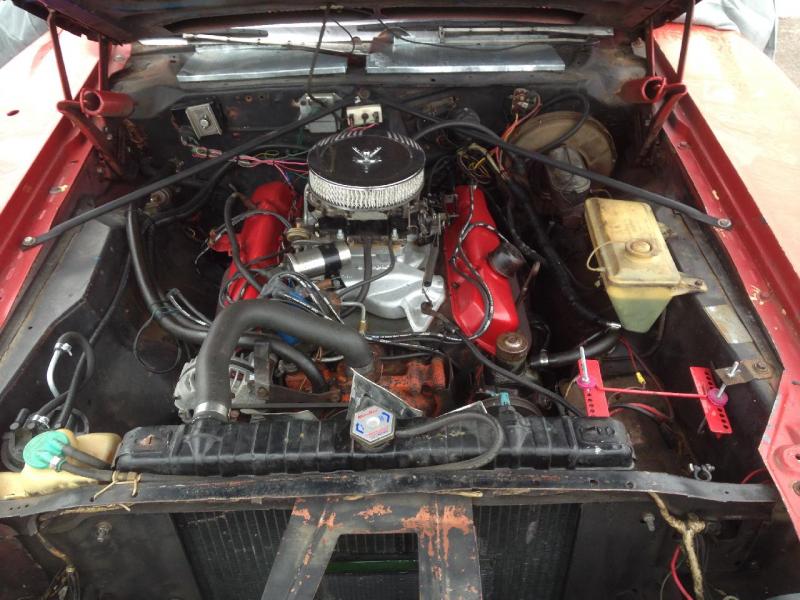

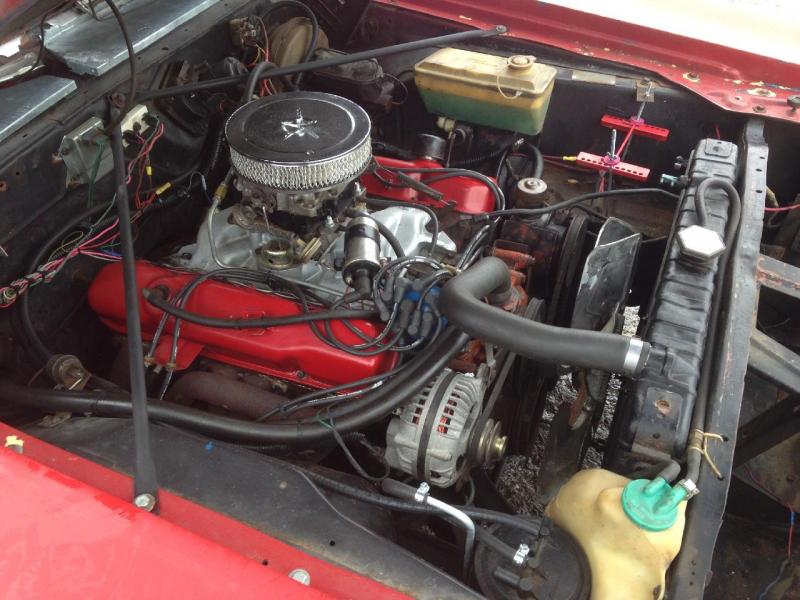

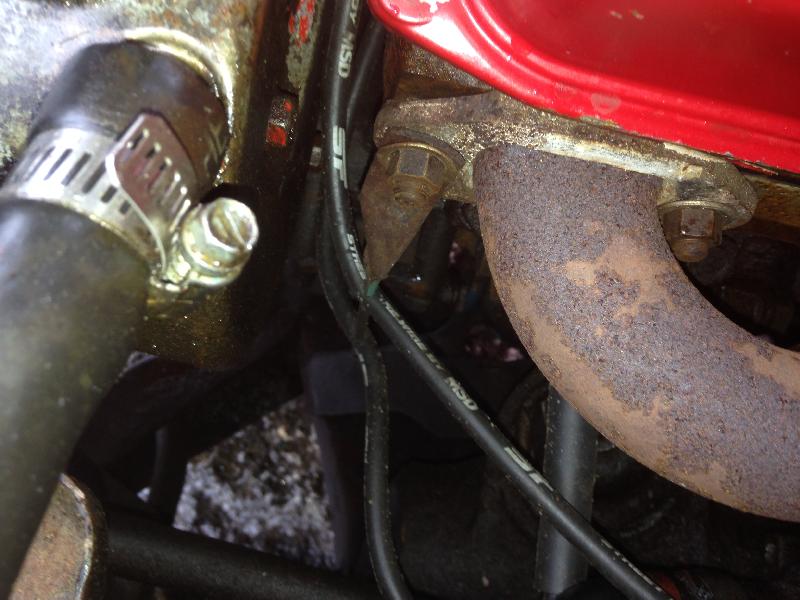

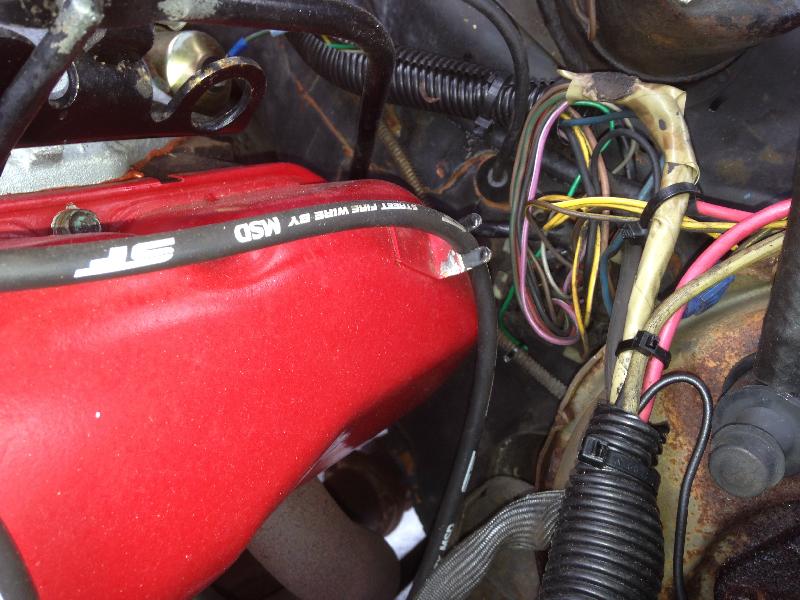

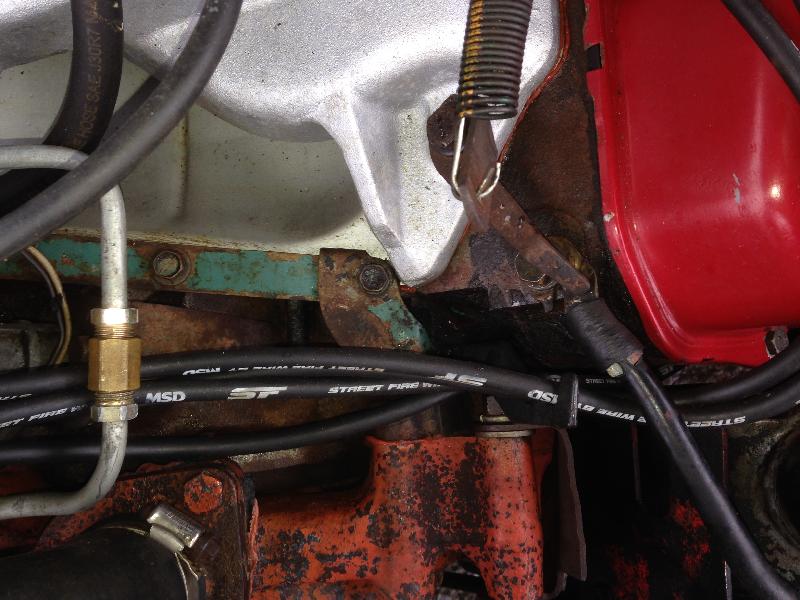

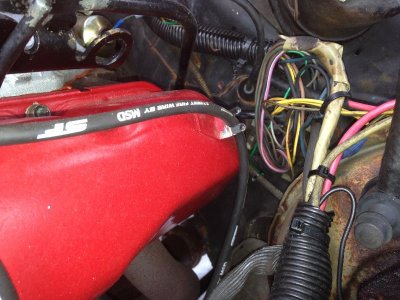

This is the CBody 383 in my 74 Charger... I have headers so I didnt use all the original looms and perhaps not in the proper locations and also used a couple plastic clips to keep the wires in place so not to burn em up on the headers.

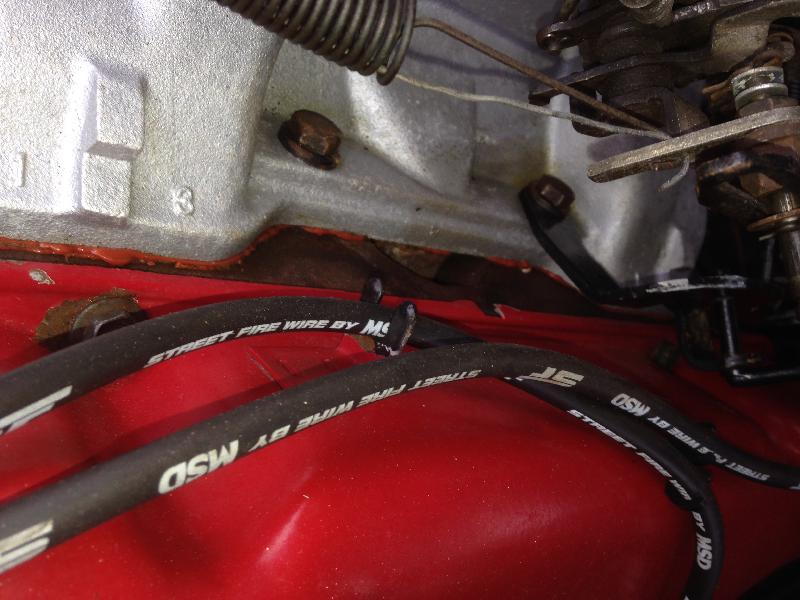

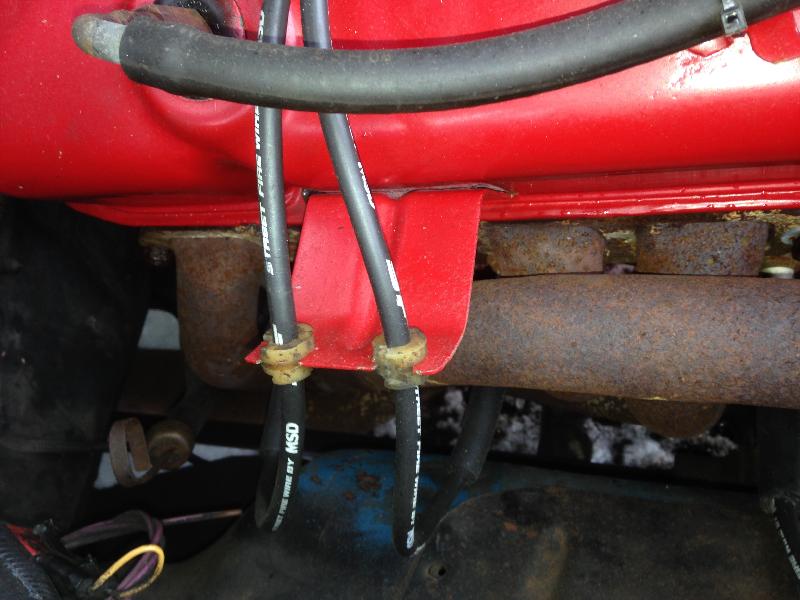

NOTE I used the original 383 CBody valve covers as they have some wire looms built on which helped keep the wires away from the heat as well;
