blown79RR
New Member

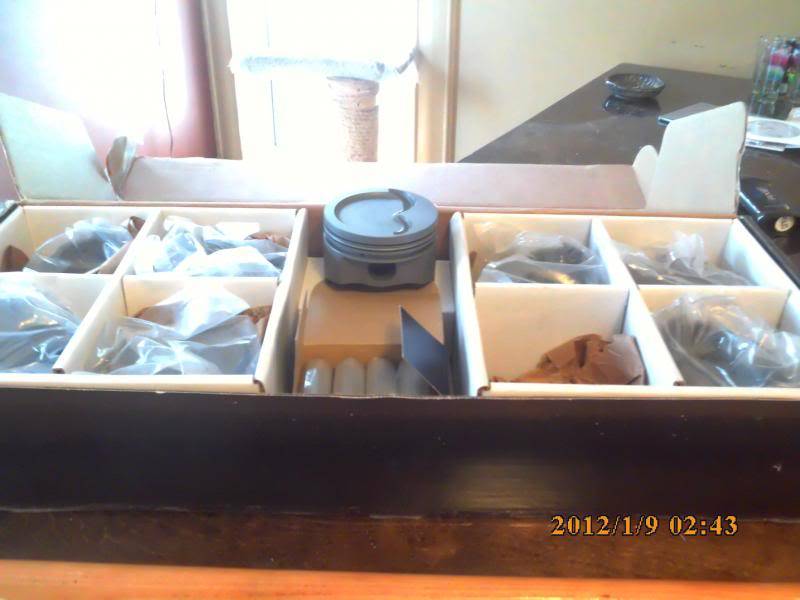

51401 diamond coted pistons $650 shipped to lower 48
FORGED PISTON 4.005" BORE
408 -19CC DISH 9.4:1 WITH 65CC HEADS / DIAMOND FORGED
408 -19cc Dish 9.4:1 With 65cc Heads / Diamond Forged
•Designed to fit most Mopar® O.E.M. open & closed chamber heads
•Will work with aftermarket Edelbrock® & Indy® heads
•Designed for forced induction applications
•Ratios figured for .018" deck @ 9.600"
•Standard 1/16" x 1/16" x 3/16" ring package
•Premium 8620 pins included
•Gasket volume = 8.9cc
•Top ring down = .290"
•Max valve diameter = 2.070" intake & 1.625" exhaust
•Valve relief depth = .292" intake and .224" exhaust
•Made from strong 4032 material
Pin Size CC's Comp 60cc Comp 65cc Comp 70cc Stroke
1.457" 482gr .984" X 2.750" -19.0 9.9 9.4 9.0 4.00"
send privet message on here
FORGED PISTON 4.005" BORE
408 -19CC DISH 9.4:1 WITH 65CC HEADS / DIAMOND FORGED
408 -19cc Dish 9.4:1 With 65cc Heads / Diamond Forged
•Designed to fit most Mopar® O.E.M. open & closed chamber heads
•Will work with aftermarket Edelbrock® & Indy® heads
•Designed for forced induction applications
•Ratios figured for .018" deck @ 9.600"
•Standard 1/16" x 1/16" x 3/16" ring package
•Premium 8620 pins included
•Gasket volume = 8.9cc
•Top ring down = .290"
•Max valve diameter = 2.070" intake & 1.625" exhaust
•Valve relief depth = .292" intake and .224" exhaust
•Made from strong 4032 material
Pin Size CC's Comp 60cc Comp 65cc Comp 70cc Stroke
1.457" 482gr .984" X 2.750" -19.0 9.9 9.4 9.0 4.00"
send privet message on here
