chooch
Well-Known Member

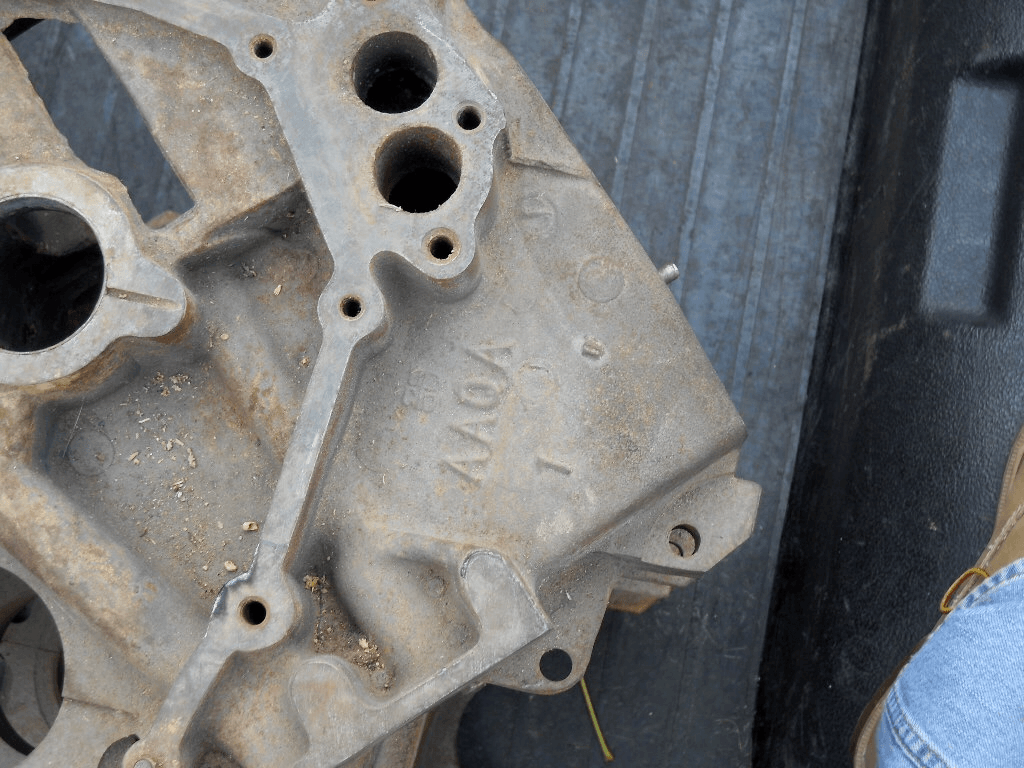

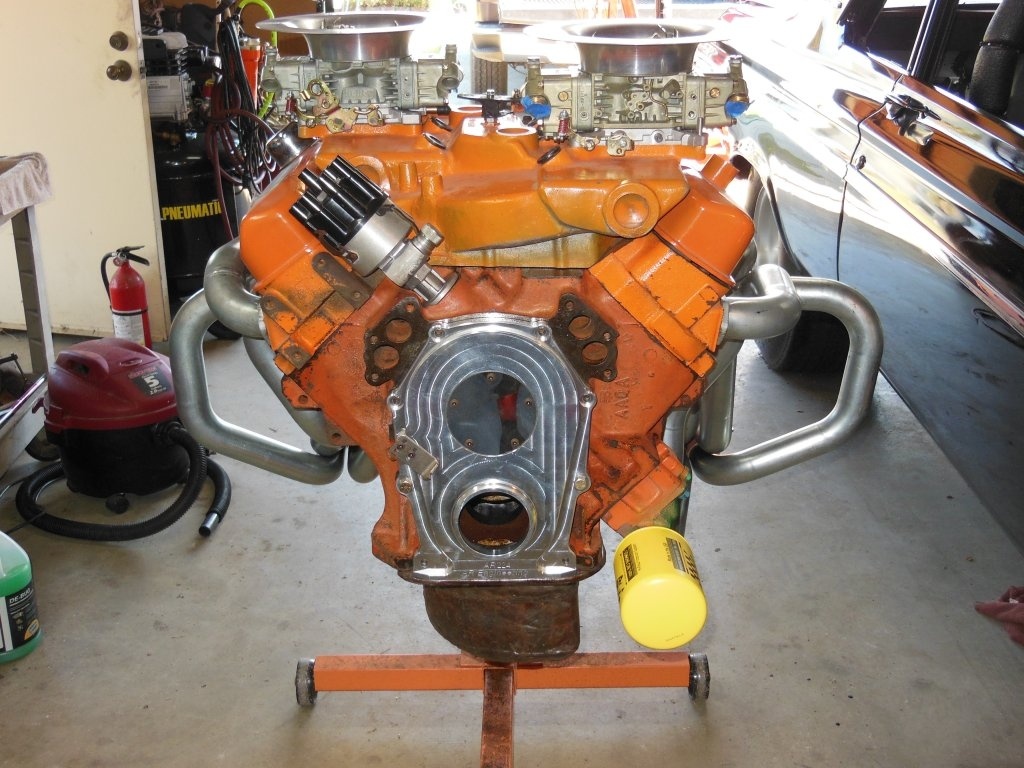

great find especially a early one undamaged & standard bore it looks like the only thing messed with is the intake
426 max wedge i.d.stamp decode
- Thread starter stage3
- Start date
1962polara
Well-Known Member
I have to agree with chooch that is a rare beast ....finding a std bore is like winning lotto.
By the way here is another high comp Max wedge that also didn't have the 2R and is exactly like yours ,so more confirmation for you
By the way here is another high comp Max wedge that also didn't have the 2R and is exactly like yours ,so more confirmation for you
Last edited:
chooch
Well-Known Member
hey those are mine & my footI have to agree with chooch that is a rare beast ....finding a std bore is like winning lotto.
By the way here is another high comp Max wedge that also didn't have the 2R and is exactly like yours ,so more confirmation for you

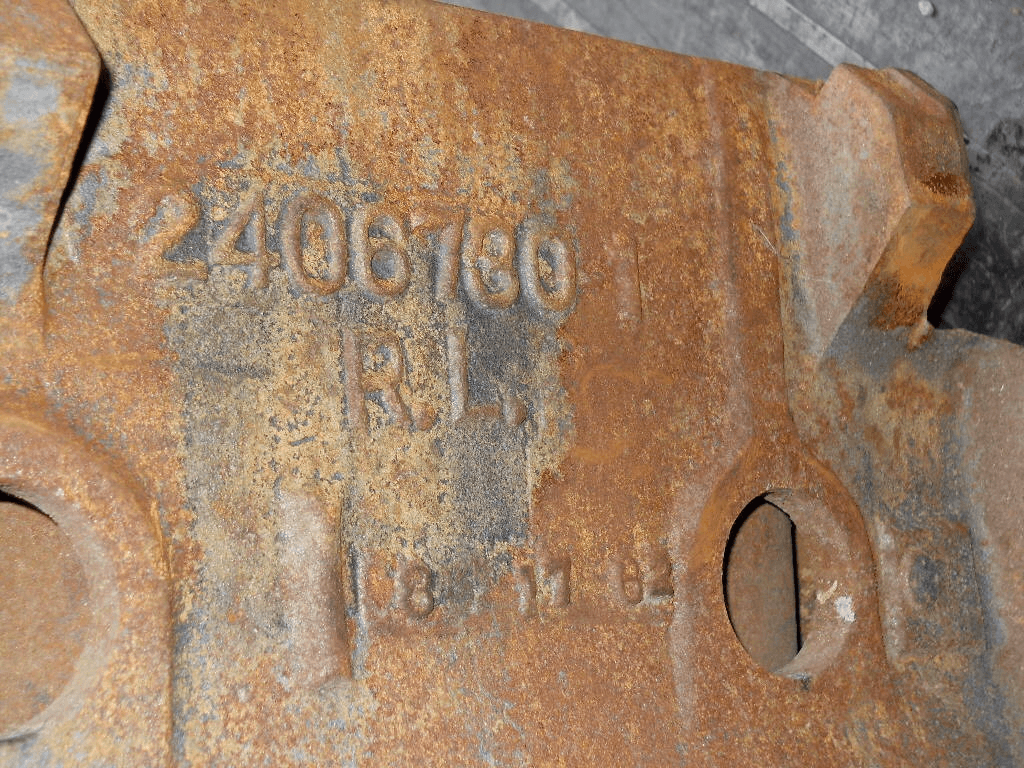

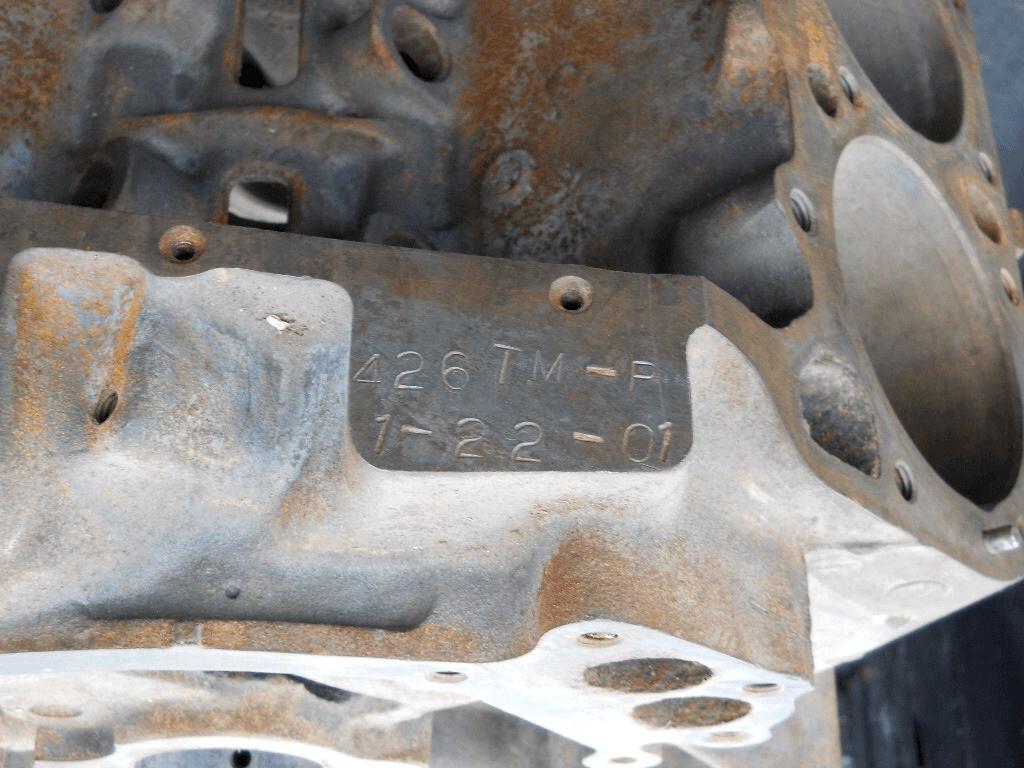

View attachment 399528 View attachment 399529 View attachment 399530

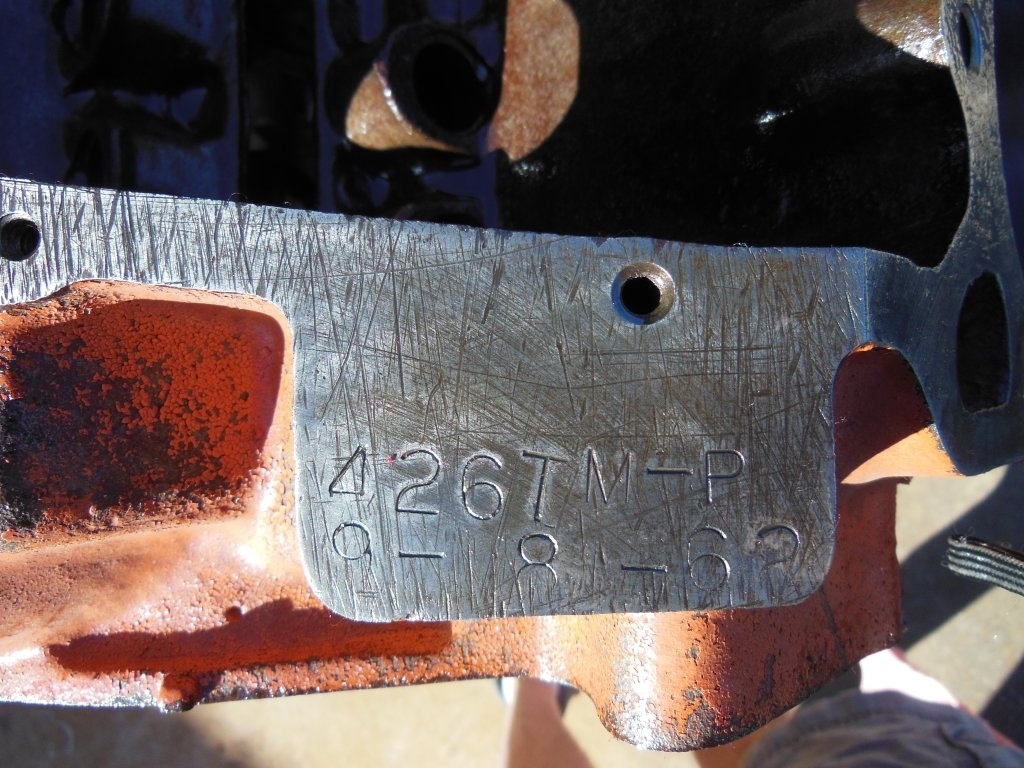

nice parts,,,but when u say HC..Don't u mean 12.5-1?or 13.5-1 as far as the 63's go.your i.d. pad is for a low comp 11-1 motor.i could be wrong but if it were 13.5 it would say HC...don't go telling greg lane all this..he would have to rewrite his website..I have to agree with chooch that is a rare beast ....finding a std bore is like winning lotto.
By the way here is another high comp Max wedge that also didn't have the 2R and is exactly like yours ,so more confirmation for you
View attachment 399528 View attachment 399529 View attachment 399530
our casting dates r 3 days apart...but your guy stamped better and clearer than mine.lol.I have to agree with chooch that is a rare beast ....finding a std bore is like winning lotto.
By the way here is another high comp Max wedge that also didn't have the 2R and is exactly like yours ,so more confirmation for you
View attachment 399528 View attachment 399529 View attachment 399530
chooch
Well-Known Member

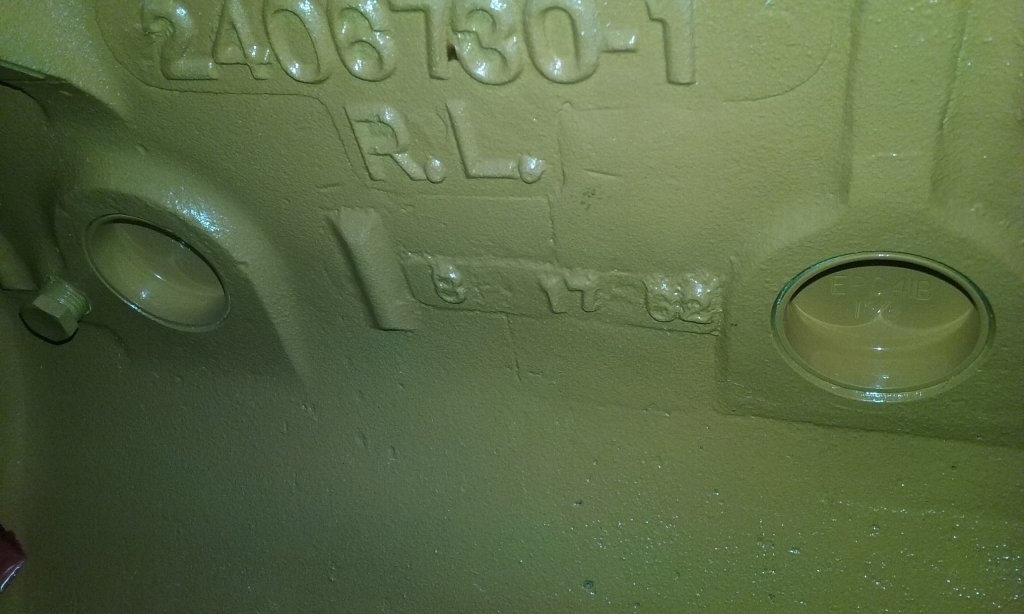

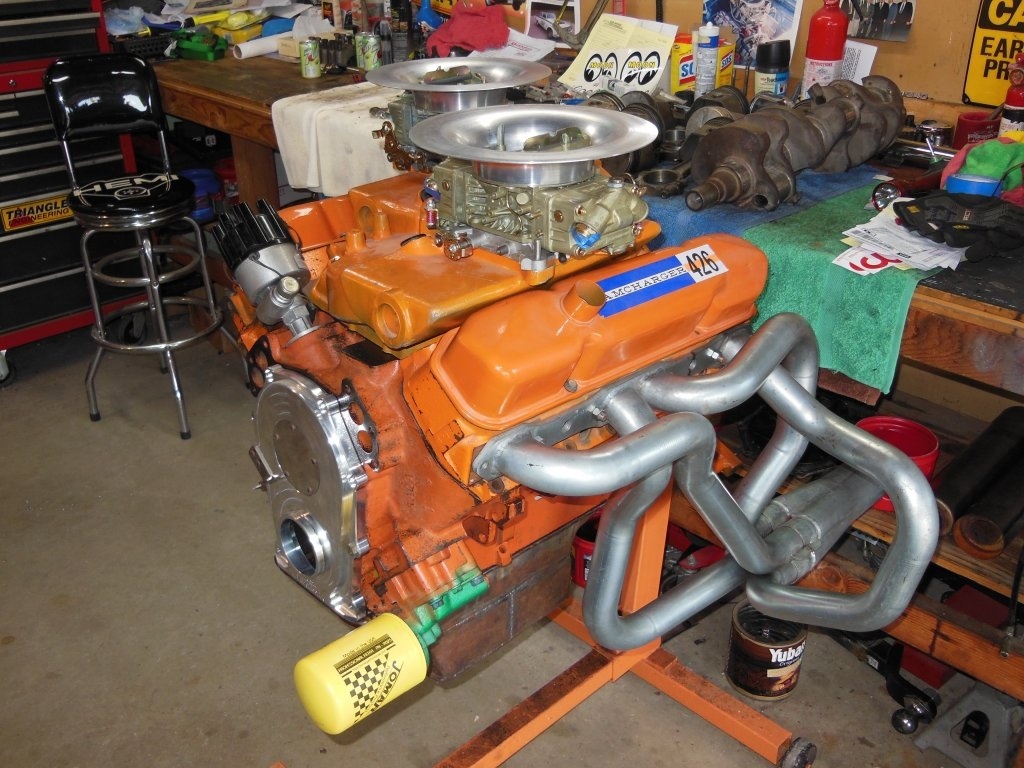

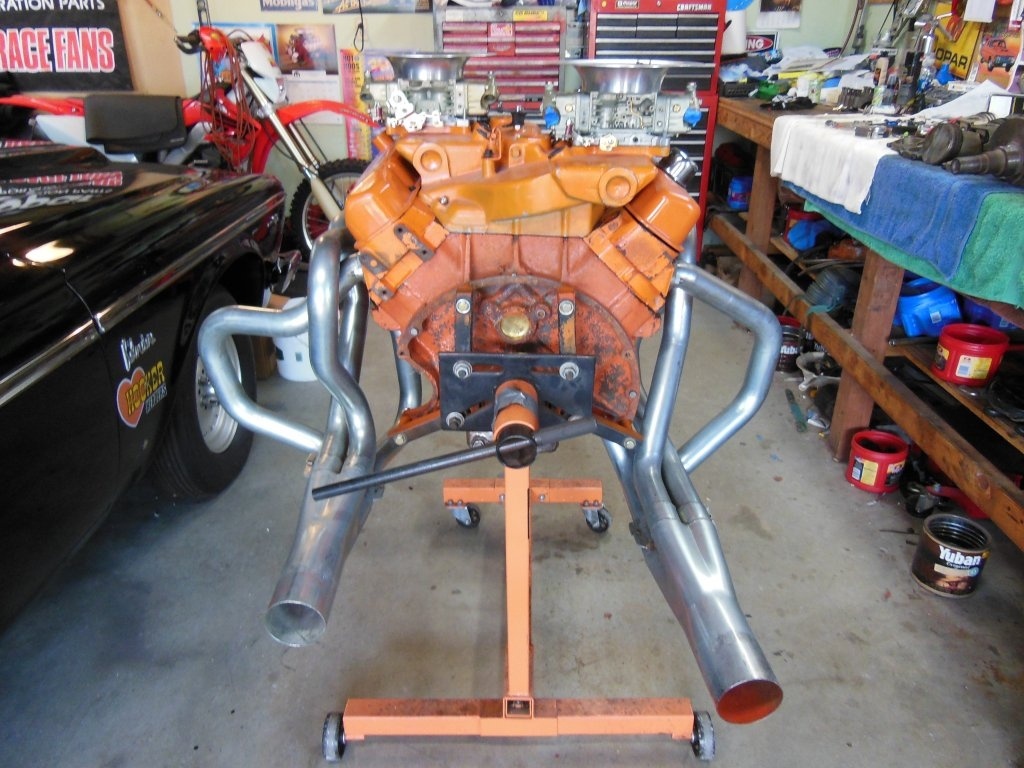

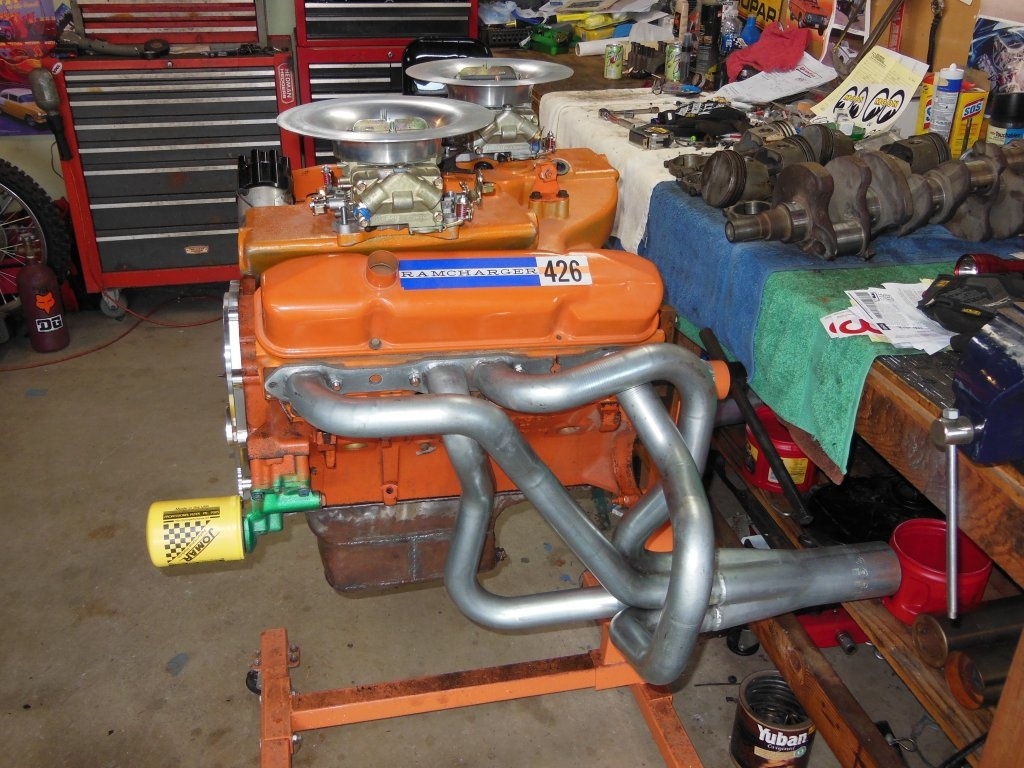

here's some others I have for you to compare with.

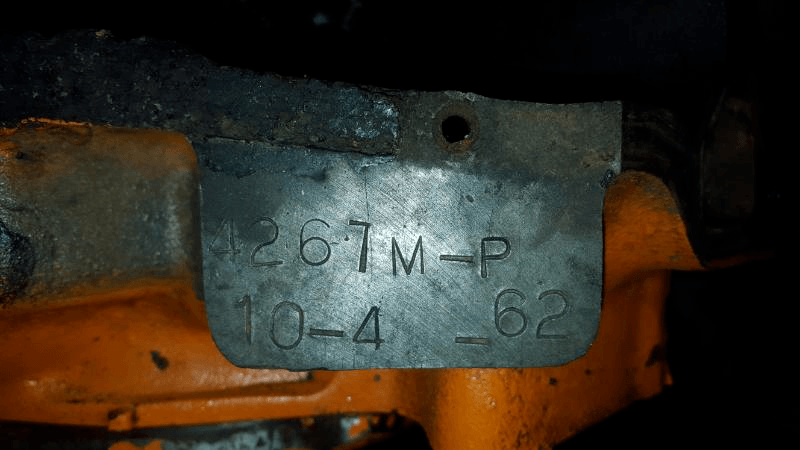

these is a very early block with a 697 cast & stamped 426 it was never apart with original head gaskets all factory original yes its another weird factory build, no 2R
Before anybody asks NO There not for sale
View attachment 399537
these is a very early block with a 697 cast & stamped 426 it was never apart with original head gaskets all factory original yes its another weird factory build, no 2R
Before anybody asks NO There not for sale
View attachment 399537
Last edited:
chooch
Well-Known Member

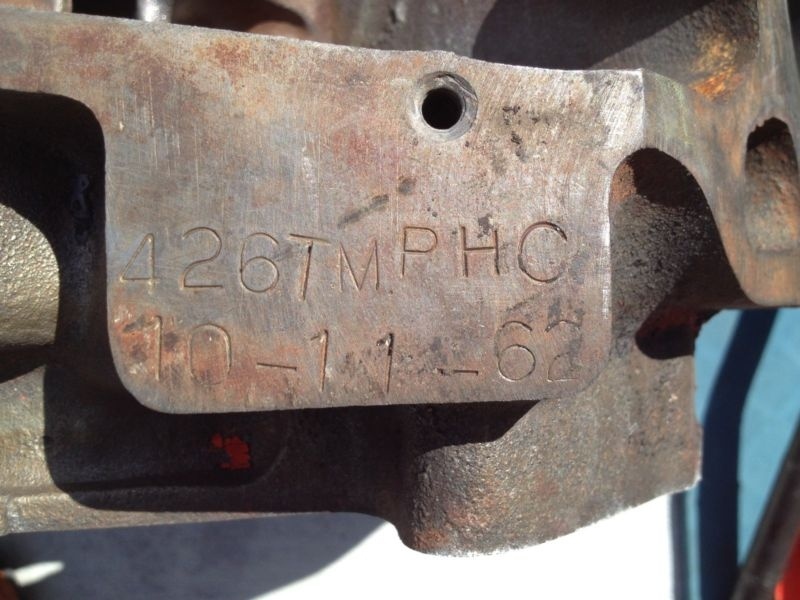

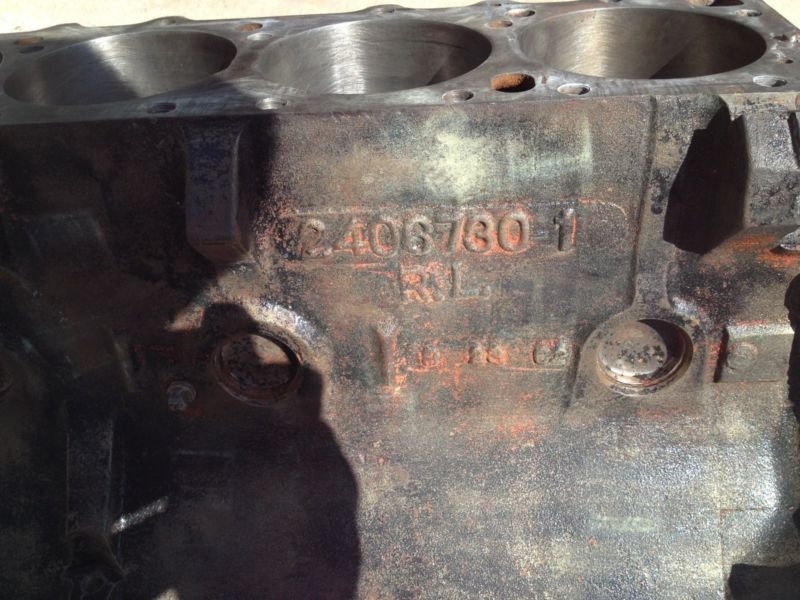

here's some of my early hc block it doesn't have the 2R either
chooch
Well-Known Member

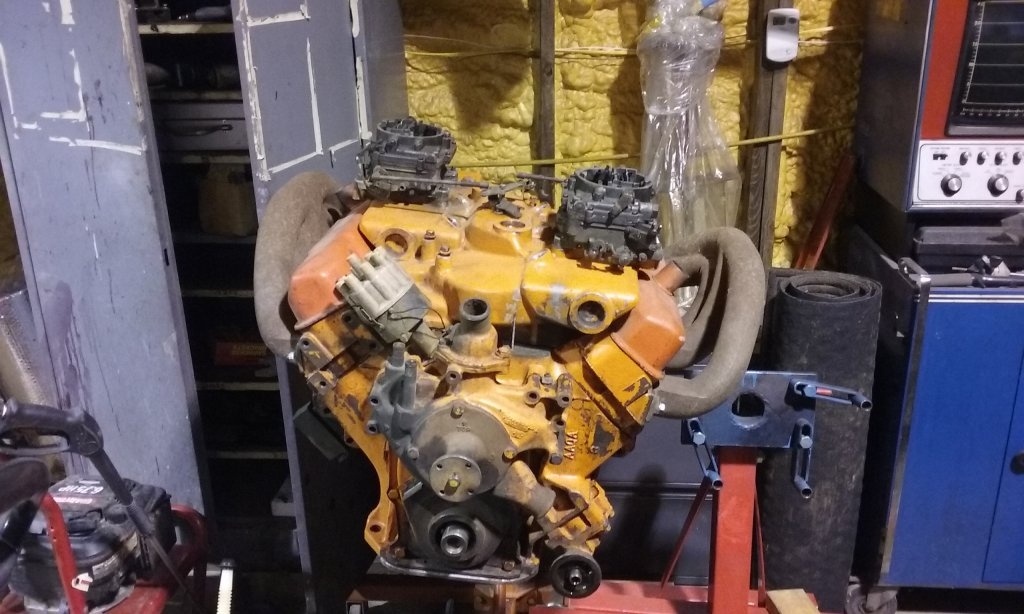

here's another one hopefully to soon be mine & no 2R on the front.

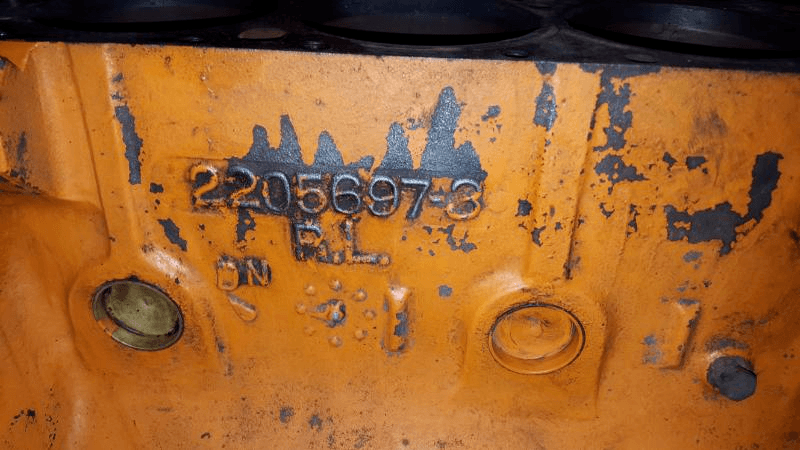

wow,,nice collection...funny thing about Chrysler was that they have the same casting numbers for both the 413 and 426 motors...2205697..I have the same block that was factory shipped as a 413.that I just had bored to stock 426 bore and assembled with fresh R&R #395 max rods and 11-1 max pistons that I will be listing for sale next week.its a V code stamping..1964..AAQA block as well.will probably put it on ebay to reach a large buying group.$$$
Last edited:
that casting date is also 3 days apart from mine as well...
chooch
Well-Known Member

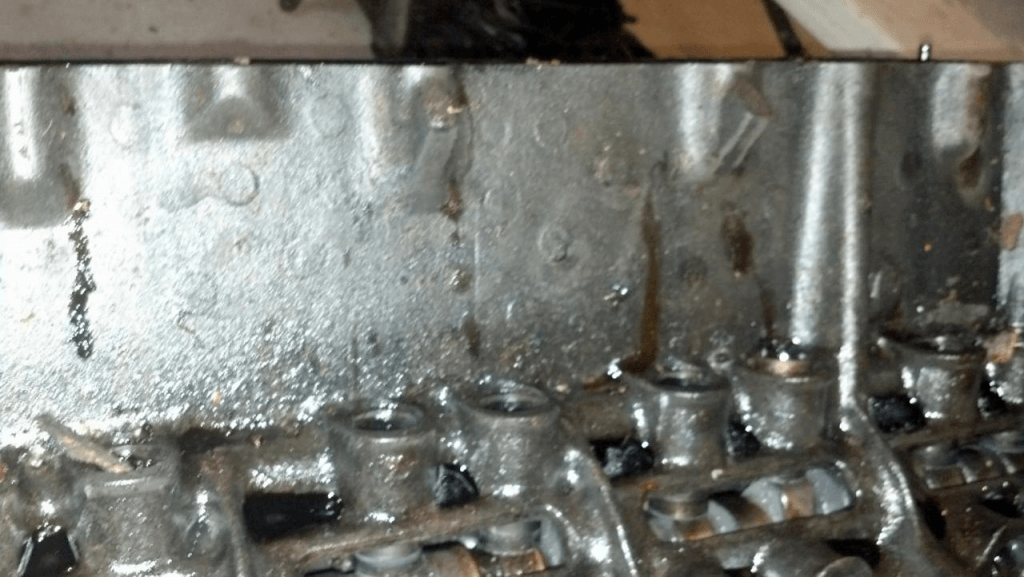

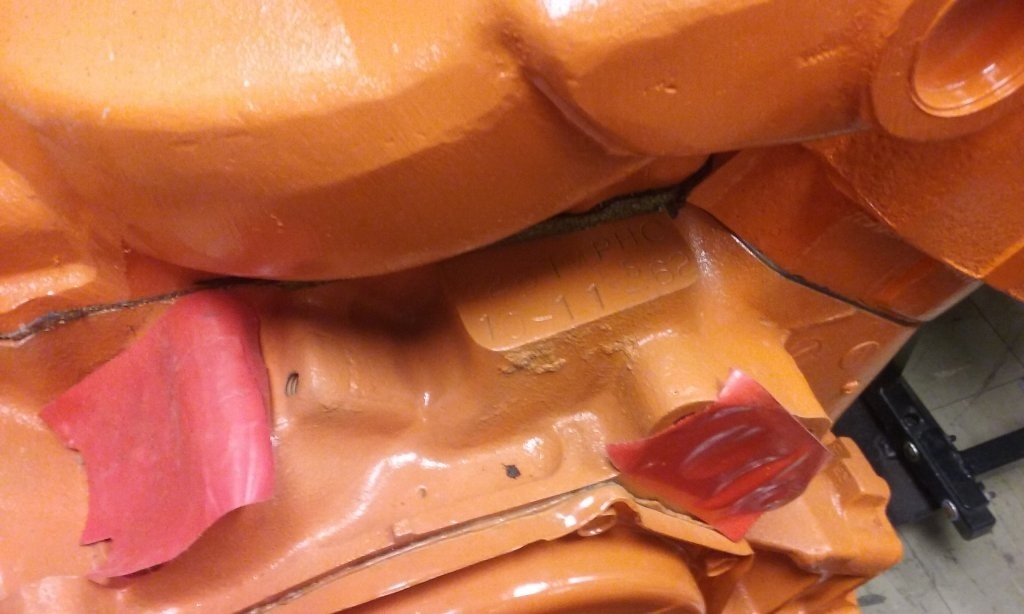

post some pics of it I've only heard of three blocks like mine, here's where the factory painted the new part number in the lifter valley.
btw I don't worry about telling Greg about it since he's the one that got it for me

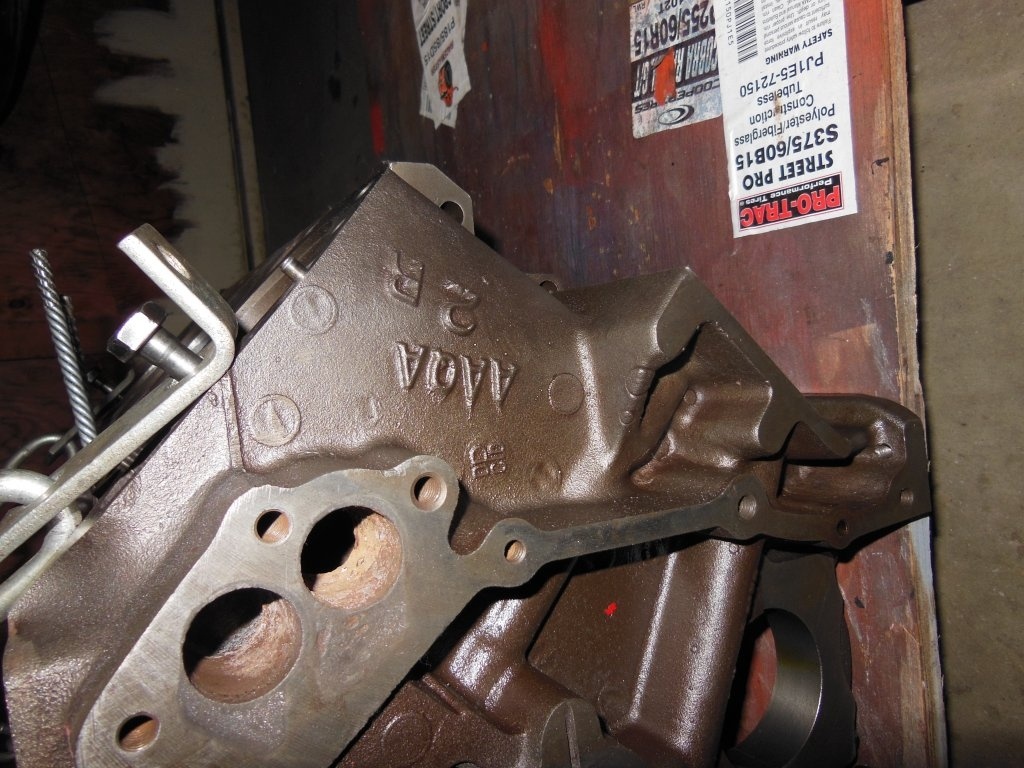

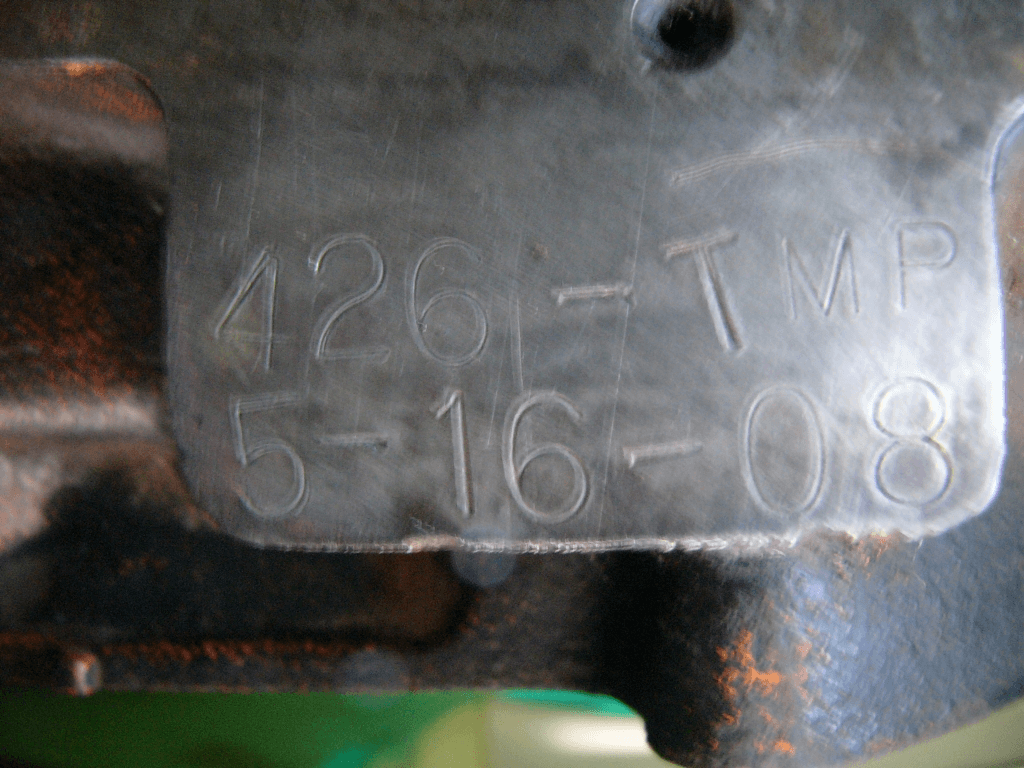

check it out...they probably had rows of them and the hand truck guy just took them as he see's fit..based upon final assemble I.D. stamp codes..the marine blocks also used similar i.d. stamps like the max's.see pic.also with the 730 AAQA 2R blocks..which is the 1 im currently setting up for my car...it measured at 4.265 .330 thick cylinders...this would have been a perfect race block...those boat guys didn't know what they had.. waiting for the diamond custom pistons.
I want to thank u for this pic and info on this assembly...I have the same shortblock with that casting number for sale next week with std bore 11-1 max pistons and rods....was a 413 factory block fresh bored to each 11-1 piston...I had no idea that this block was used in the max applications...I think it just increased in value...good ole Chrysler...go figure..
1962polara
Well-Known Member
Yeah sorry didn't mean to say High comp (embarrassed)
chooch
Well-Known Member

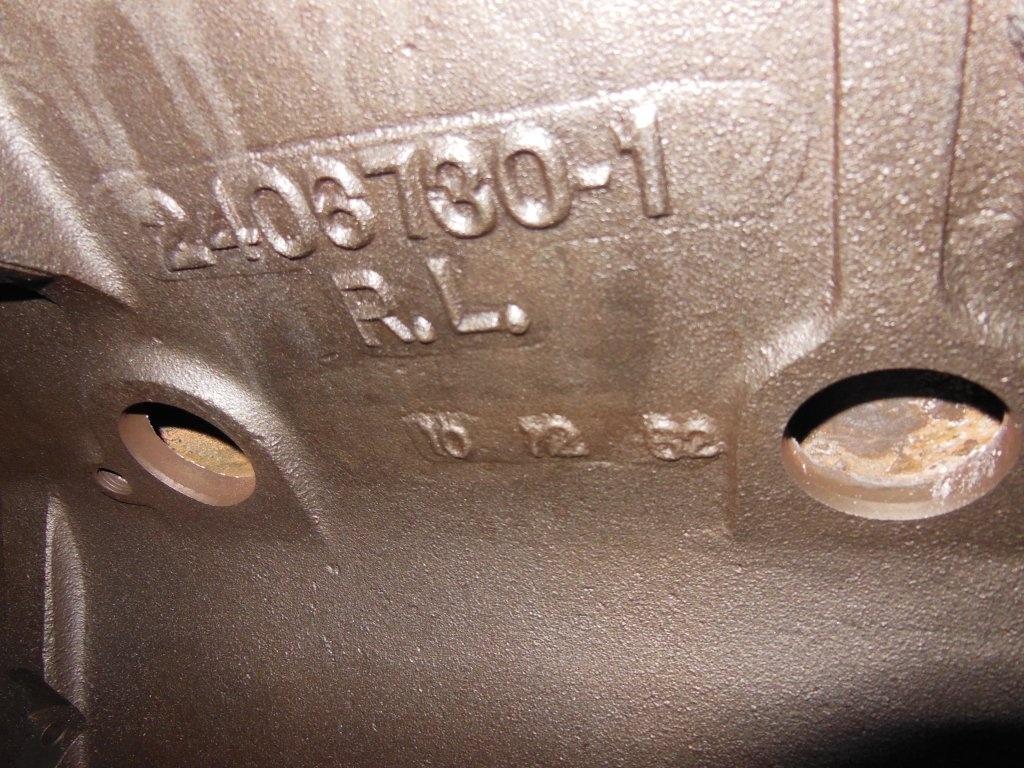

your first the first two pics are a correct 730 cast 426mw
can you post a pic of the casting number & the block side that belongs the third photo
can you post a pic of the casting number & the block side that belongs the third photo
1962polara
Well-Known Member
It is a late 426 ,just prior to the stage II .
Brought this from Clayton Wright (you know him chooch ?) ,I know it's genuine but still peculiar .
Last edited:

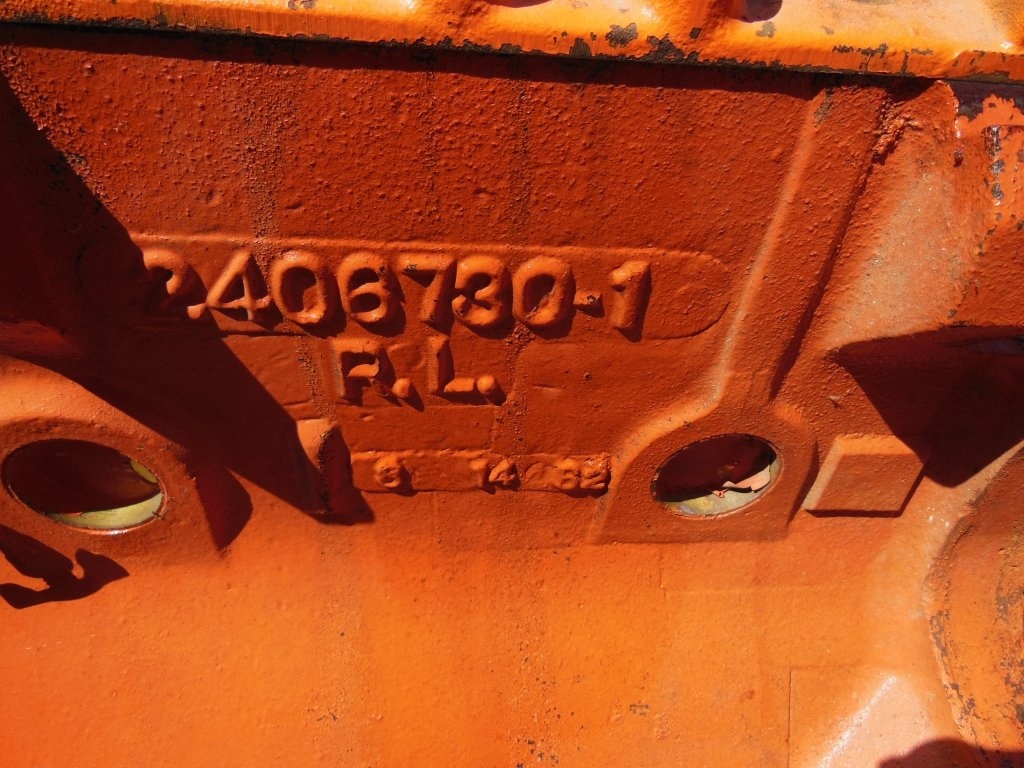

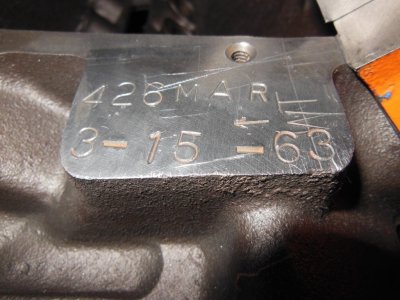

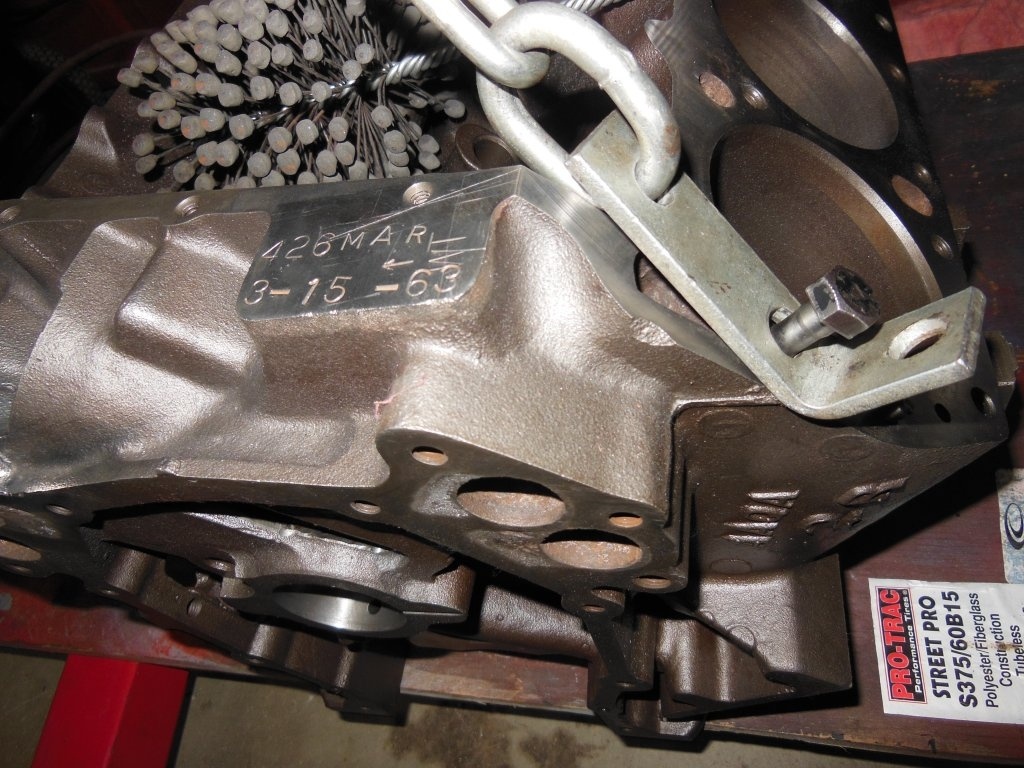

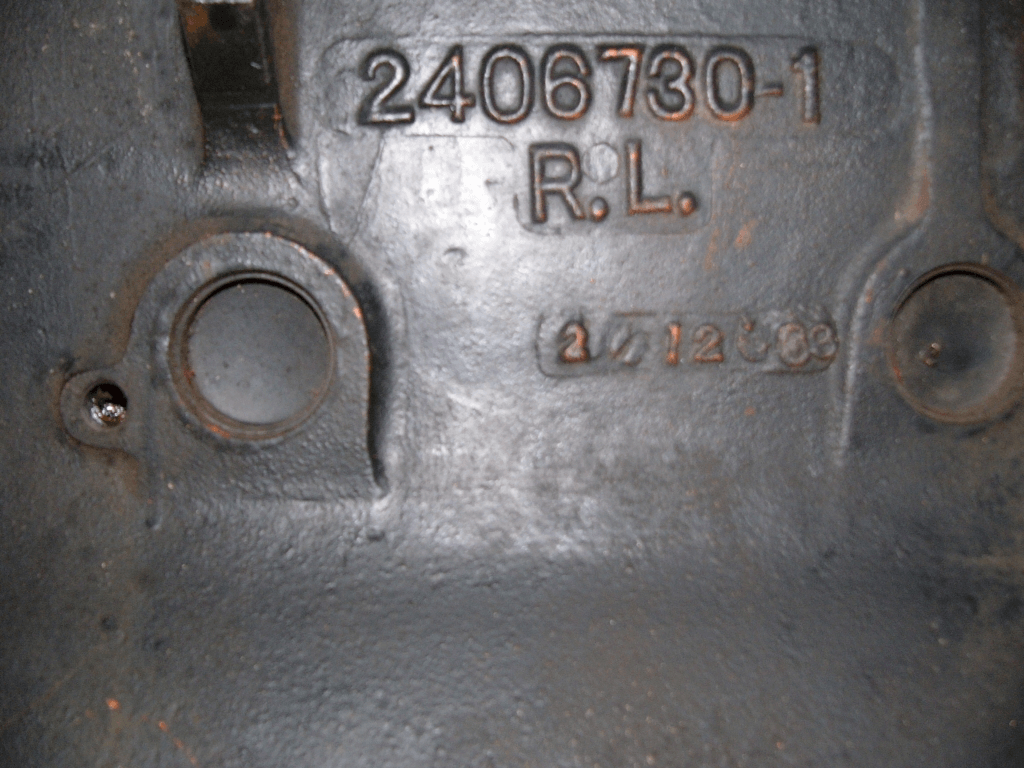

check it out...426 marine block..2406730-1 AAQA 2R 3-15-63 assembly date..10-12-62 casting date..xtra heavy duty.came out of a twin engine boat..its going back to the machine shop Monday awaiting pistons for assembly..and Im picking up my 2205697 shortblock to list for sale..what do u think about the marine block...bores r still std..rust looking..will be bored .015 over with 10.7-1 pistons with stage 3 beautiful heads..
Last edited:
I thought they all r stamped strangly!that stamp is everything.mine u can hardly read!..it means huge dollars in value between it and the same casting street wedge blocks..i have never seen the stage 2 heads ....casting 2463209...not even a picture.....do they exist?
- Local time
- 11:57 PM
- Joined
- Jan 16, 2011
- Messages
- 74,392
- Reaction score
- 114,515
- Location
- NorCal Sierras
Here a good source
http://racehemi.maxwedge.com/topics/heads.php
most info seems like it's pretty good/accurate
carry on just figured I add that link
http://racehemi.maxwedge.com/topics/heads.php
most info seems like it's pretty good/accurate
carry on just figured I add that link
Goldencommando
Well-Known Member
I'm looking for a TMPHC block. Needing December 62 or January 63 to make my car correct, I have a low comp. block for trade if that would make a deal. Here's the pad on the low comp block.
