440 question

[Gregorypa]

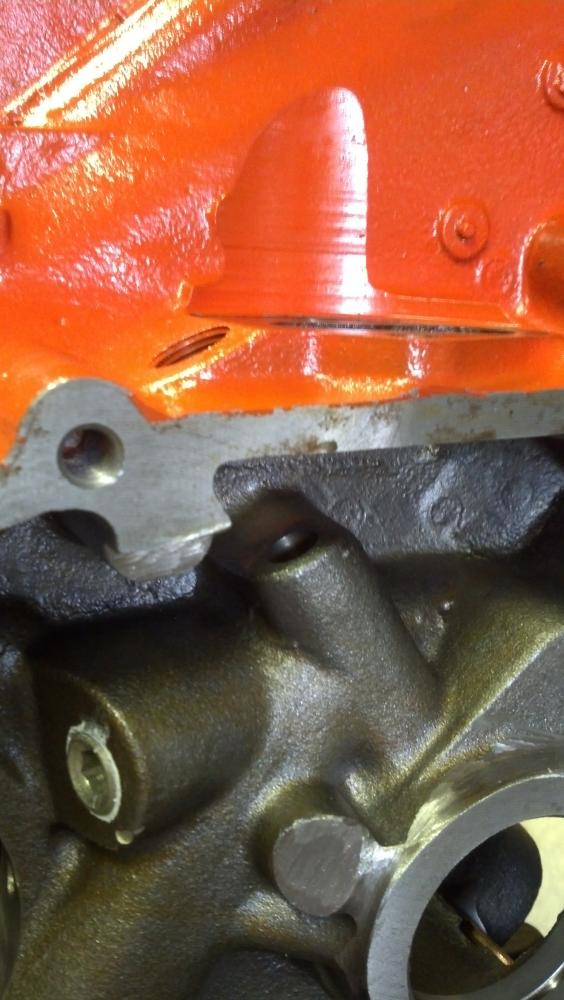

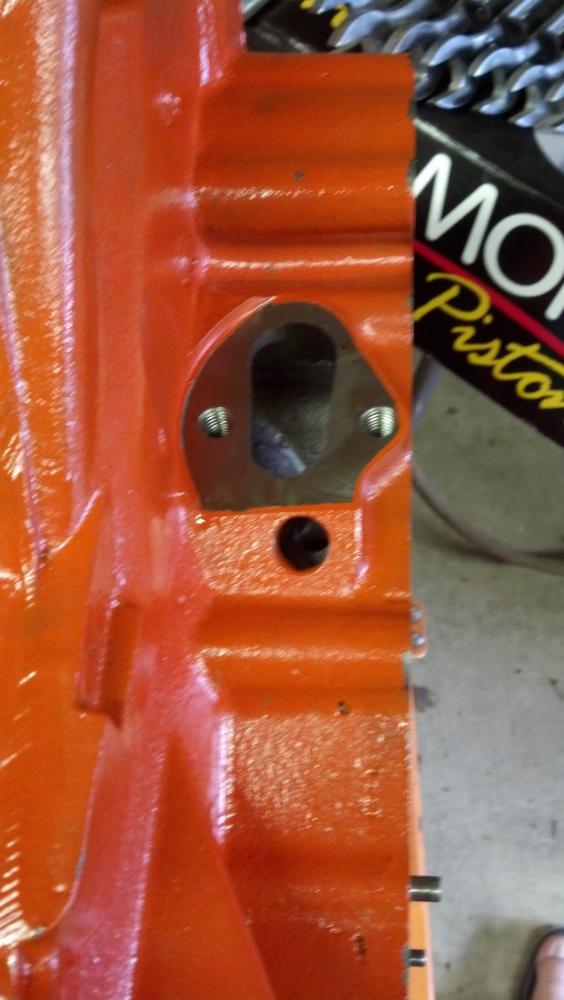

I am putting together a mopar performance 440. I am putting the plugs in the oil galleys and had a question. Do you know what the whole below the fuel pump is for? Also does the whole inside of it get plugged. I have attached a picture. Thanks for the help.



[Mogre]

I believe it is to gain access to the fuel pump actuating rod that rides on the camshaft.



[747mopar]

Yep, that's how you get the fuel pump rod in and out. You just plug it off once your rod is in.



[Seax440Dodge]

yep, exactly what they said, access to the fuel rod, pipe plug it off



[Gregorypa]

Oh okay. If I am using an external fuel pump should I plug off where the rod sits internally as well?



[Moparmatt72]

Nope just use a block off plate and block the lower hole.



[Gregorypa]

Thanks for all the help guys. This is my first 440. 500 cubes, Indy sr heads, mopar performance single plane, 640 lift cam, jesel belt drive and a race demon 1050cfm. Any hp guesses?



[Moparmatt72]

Wow nice set up. Heads ported? What's the compression? I'd guess around 650+hp base off the info maybe 600+ if heads are un touched.



[Gregorypa]

The compression should be about 11.5:1. Heads are not ported. I am thinking about sending them out to have them done. Not sure if I should send them back to indy or just have them locally done.



[Moparmatt72]

Would be a good idea always good to let these motors breath more. Jim aka IQ52 does porting he's a member on here. Indy will cnc port them or even cncport.com can do them. Cncport did a set of my mw victors for me, awesome work, but have also hread great things about Jim on here on his work.
