489 Differnetial Rebuild

[datblackchallenger]

First differential rebuild. Someone put a non Sure grip unit in.

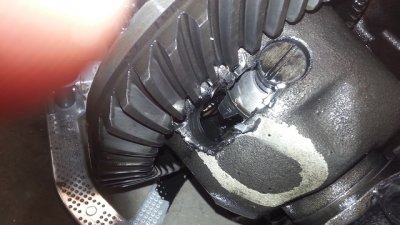

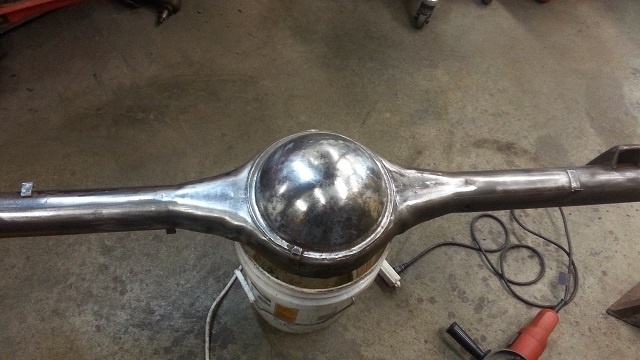

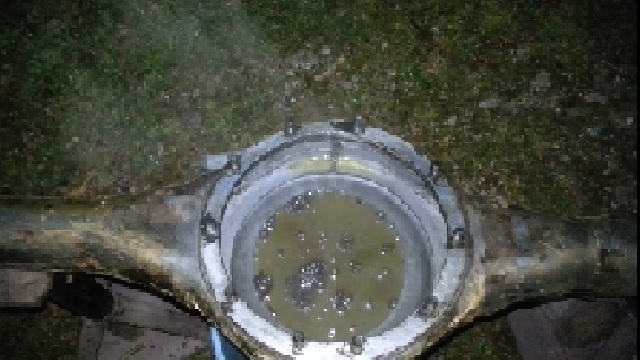

Cleaned with wire brush and grinder Welds were terrible. Cleaned inside the case with muriatic acid. Be very care with the acid. Paint is Ace Hardware rattle can black and clear.

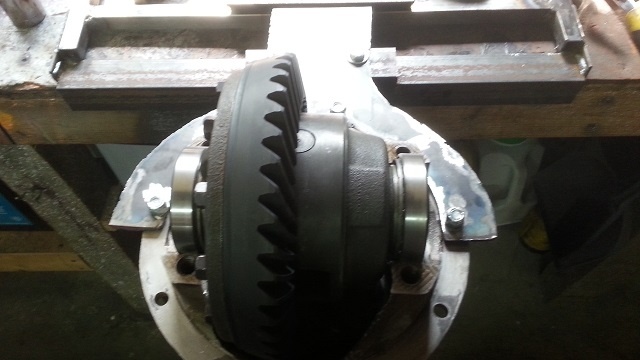

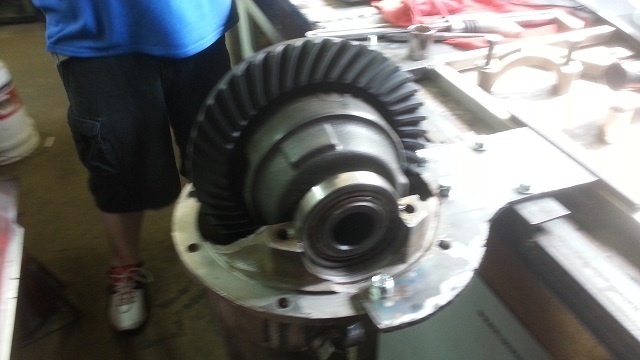

Differential rebuild tool is T&D Machine Pinion Depth Tool like -2 or something. Couldn't find two tubes to fit each other to build a rotating stand so I used 1/4 plate and 3/4 square stock to hold it to the bench. Fingering out the shims wasn't easy but we got it. Started with a .010 shim we pressed on the pinion gear then used the diff. tool to figure out what other shims we needed. Adjustment was side to side was easy.



[datblackchallenger]

First differential rebuild. Someone put a non Sure grip unit in.
Cleaned with wire brush and grinder Welds were terrible. Cleaned inside the case with muriatic acid. Be very care with the acid. Paint is Ace Hardware rattle can black and clear.
Differential rebuild tool is T&D Machine Pinion Depth Tool like -2 or something. Couldn't find two tubes to fit each other to build a rotating stand so I used 1/4 plate and 3/4 square stock to hold it to the bench. Fingering out the shims wasn't easy but we got it. Started with a .010 shim we pressed on the pinion gear then used the diff. tool to figure out what other shims we needed. Adjustment was side to side was easy.

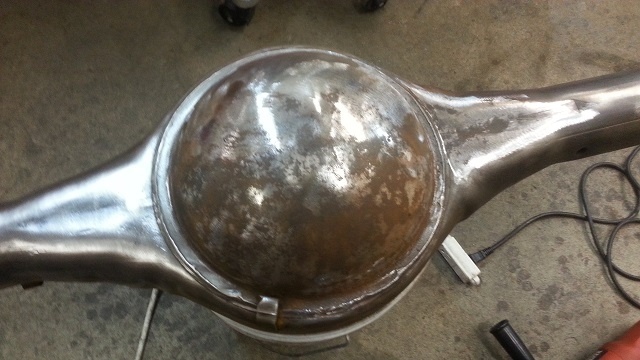

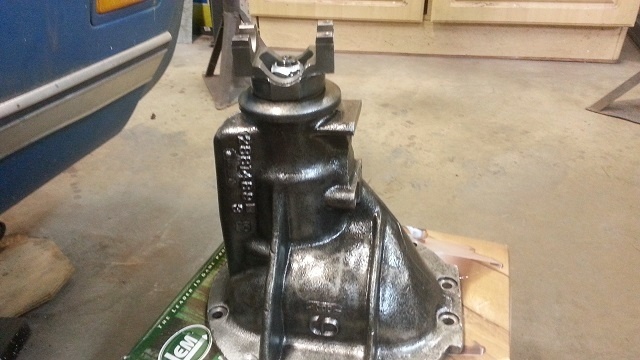

View attachment 350072 View attachment 350073 View attachment 350074 View attachment 350075

Continued



[datblackchallenger]

Continued

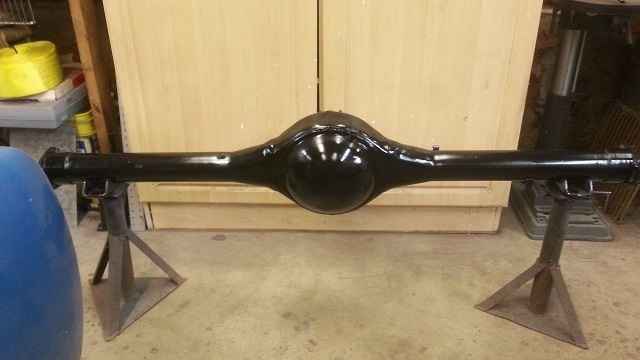

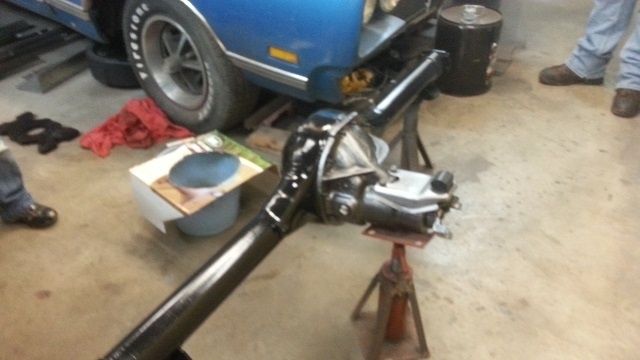

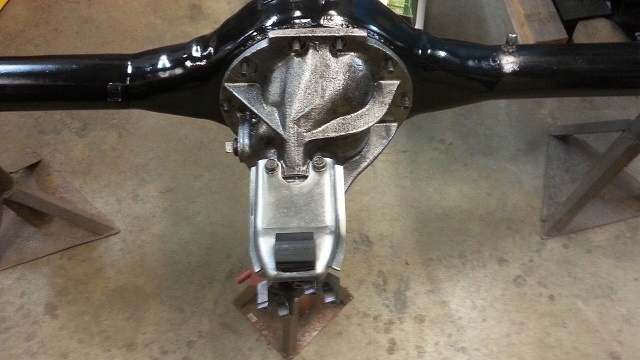

View attachment 350076 View attachment 350077 View attachment 350078 View attachment 350079 View attachment 350080

Continued
Bought a DVD a Differential Rebuilding. Not the best but helped.



[datblackchallenger]

Continued
Bought a DVD a Differential Rebuilding. Not the best but helped.

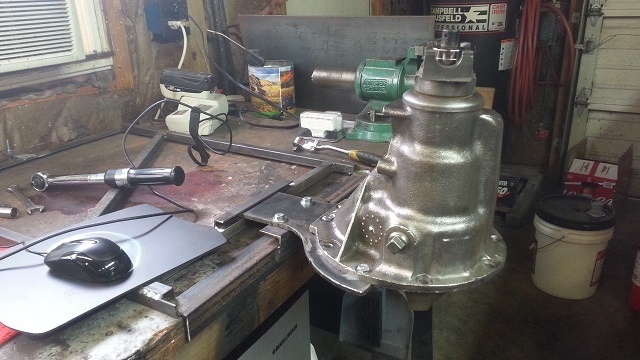

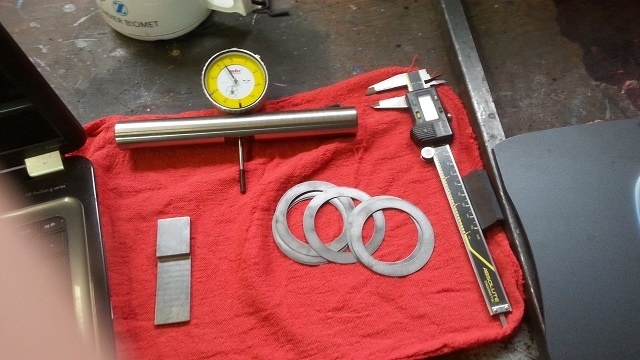

View attachment 350081 View attachment 350082 View attachment 350083 View attachment 350084

I forgot the to say the gears are Richmond 3:91's. Installation kit was Doctor Diff's.
And ring to pinion bolts are right hand thread.



[datblackchallenger]

I forgot the to say the gears are Richmond 3:91's. Installation kit was Doctor Diff's.
And ring to pinion bolts are left hand thread.
