505" in the car (pictures)

[Mike Gaines]

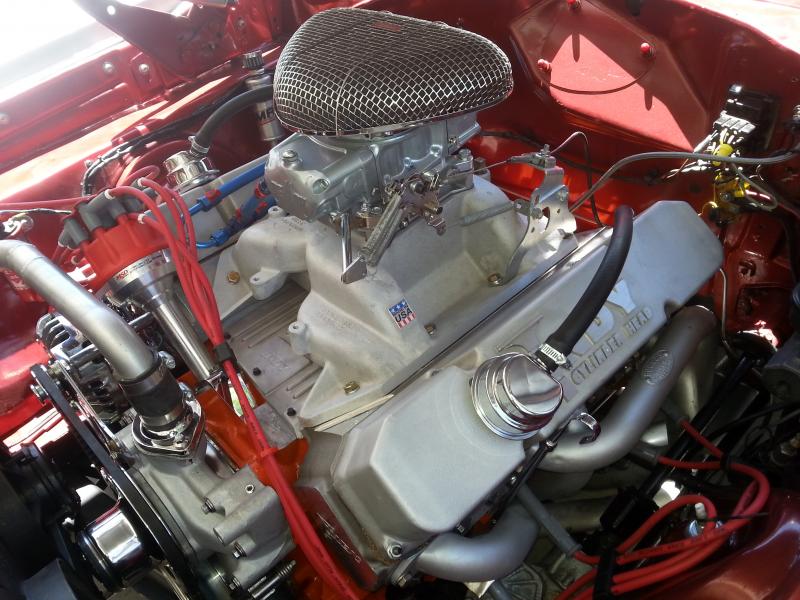

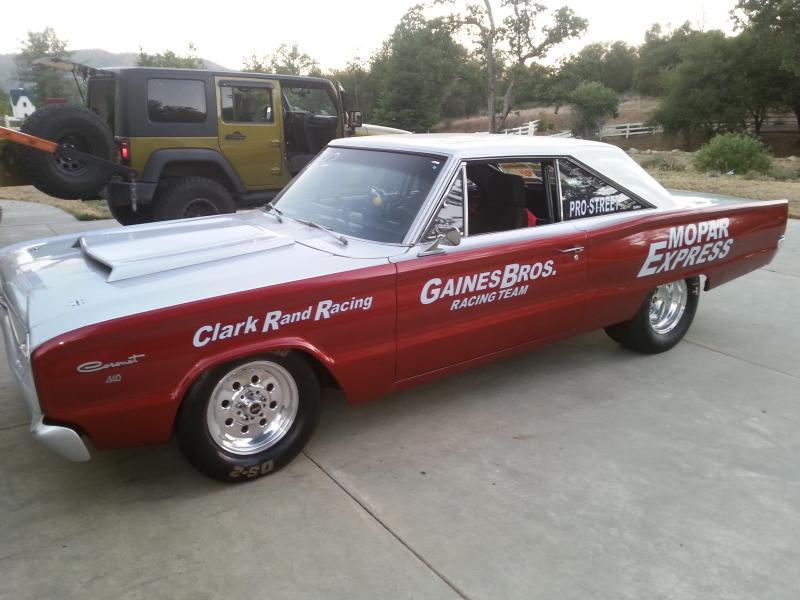

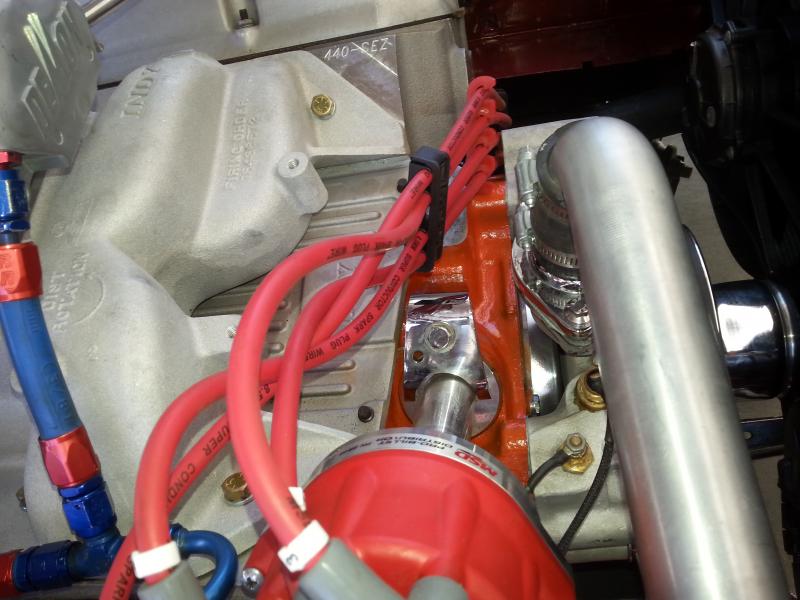

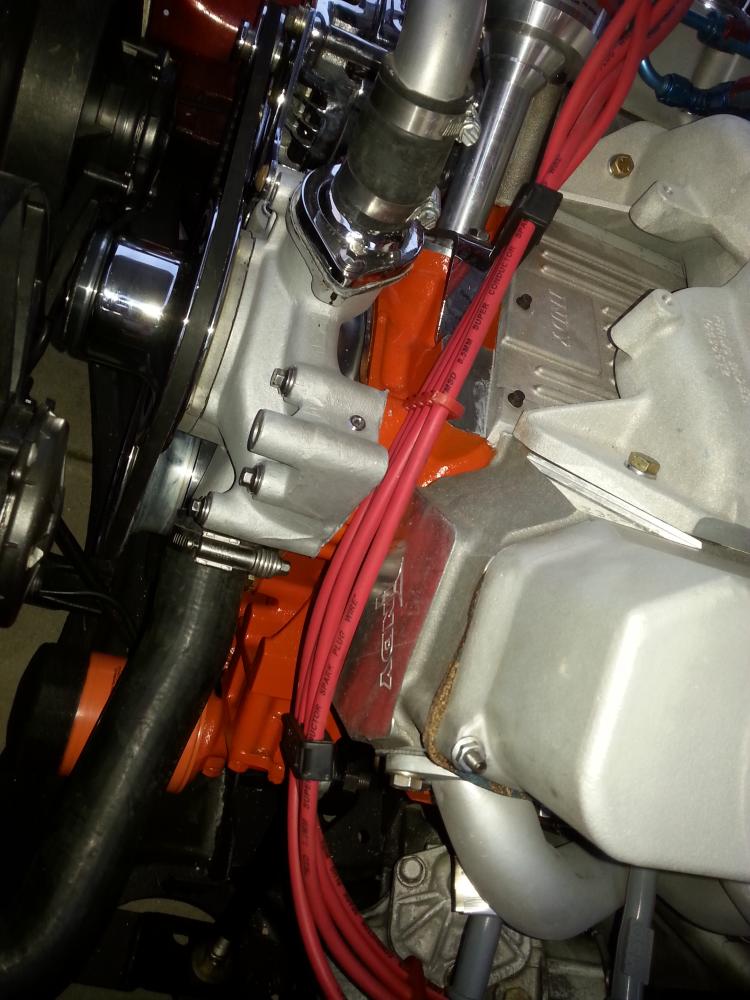

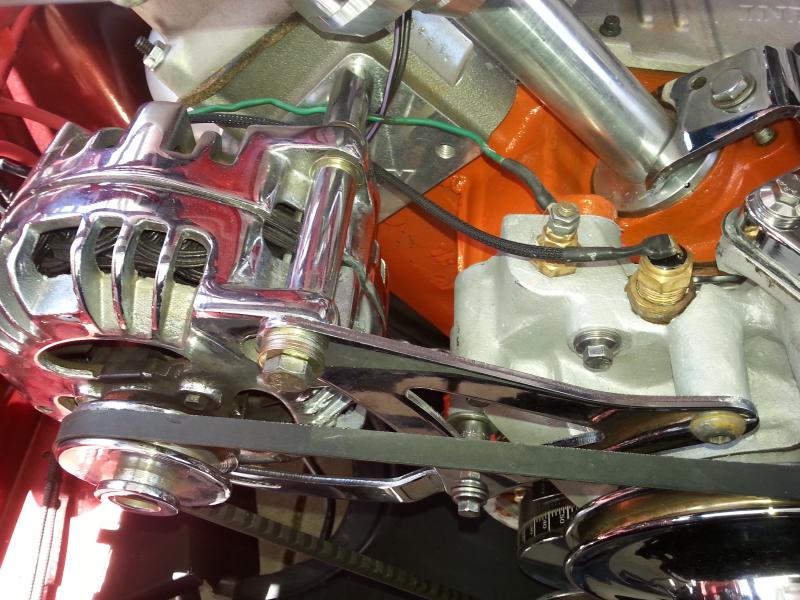

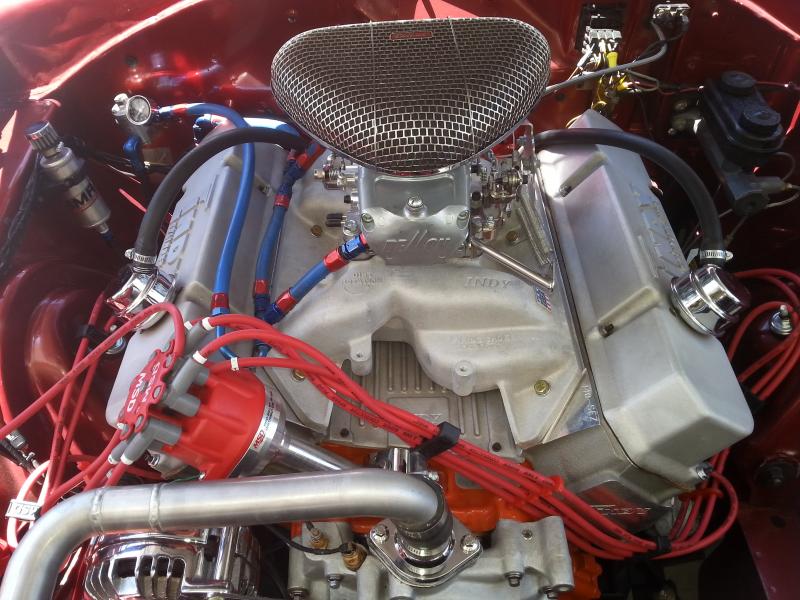

Got the new 505" into the car a couple days ago. Wanted to share some pictures.

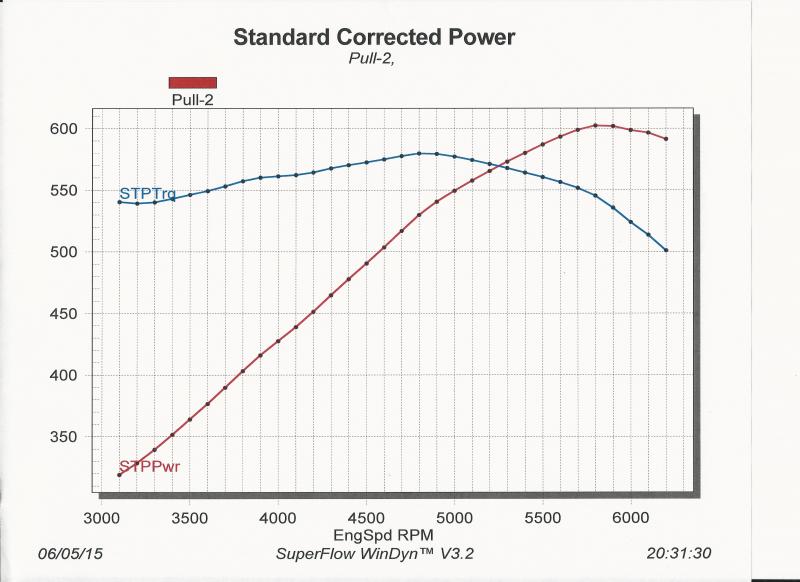

Also attached is the Dyno Sheet Print Out.
540LBS of Torque @ 3100RPM and 602HP @ 5800RPM.
Hoping for 10.50 to 10.80's @ 123 to 128....I have no idea what it will do but I can't do anything else to the car to make it perform any better and still keep in 100% street legal and street driveable.
Every thing is brand new....505"/Comp Solid Lifter Cam (and complete Comp Valve Train)/440 Source Roller Rockers/INDY Dual Plane Intake (Non-Max Wedge Ports)/ INDY SEZ Heads (Non-Max Wedge Ports)/850 Mighty Demon Carb/MSD Pro-Billet Dist and 8.5 MSD Wires/Ohio Crankshaft Stroker Crank/Ohio Crankshaft H Beam Forged Rods/SPE 12.1 CR Forged Pistons/Hooker Super Competition Headers/B&M 8 Bolt Hemi Pattern Flex Plate w/1/2 Bolts/Moroso 7 Quart Pan/Mildon PickUp/Aluminum Housing Water Pump/5200 Flash Converter (by Lenny @ Ultimate Converter in North Carolina)/ Torqueflite with all the heavy duty Sprags, etc/4.10 Detroit Locker/Moser Axles/28x13.50x15 MT ET DOT slicks/Moroso DS2 front tires) Weld 15x10's and 15x4's/ Disc Fronts/Drum Rears/Cal Trac Bars and MonoLeaf Rear Springs with Cal Trac 9 way Adj RR Shocks and Cal Trac 90/10 Frt Shocks/Fiberglass Hood,Front Fenders and Frt/RR Fiberglass Bumpers/ 10 Gallon Fuel Cell with 140 GPM Mallory Pump....etc, etc.



[5.7 hemi]

So how did it go at the drags?



[Car Nut]

Beautiful!



[OldFolksMopar]

That's a beaut!!



[MoparThunder]

That's awesome! Looks great!



[mmissile]

Nice.



[eric383]

Sweet!



[383man]

That looks great ! You did a great job putting the eng in it. You know you may go faster then you think. I have run 10.70's and your build is stronger then mine and I run a full exh system on the car when I race and I only have 10.6 comp. So if its a race only car you will run open headers and you do have 12.1 comp also. You could be pushing the bottom half of the 10's if all goes well. I cant wait to hear how she runs for you. I wish you "Good Luck" on its first outing as we all know the little quirks that like to pop up on us. Ron



[cdr]

waiting with GREAT ANTICIPATION



[Budnicks]

IIRC his 1st outing is this week end 6/20 & 6/21 NDRA {or some nostalgia org.} at Bakersfield/Fomoso

cool photos Mike, Good luck



[Mike Gaines]

IIRC his 1st outing is this week end 6/20 & 6/21 NDRA {or some nostalgia org.} at Bakersfield/Fomoso

cool photos Mike, Good luck

Can't make the race this weekend. I had rebuilt the entire front end, new ball joints, new A-Arms, etc, etc, and took it to the Alignment shop today and they couldn't fit their Alignment Equipment on the front wheels because my Moroso DS-2 Front Tires were too "fat" / "buldge" and their equipment didnt have long enuf arms to attach to the lips of the wheels.
What a bummer...
I sold my old much smaller tires that they equipment would work on but I dont have them anymore. My son-in-law is getting me a pair of tires to "borrow" and to mount up on my wheels to the alignment but all this just happened this afternoon and not enuf time to get it all done today and leave for the drags this evening..



[Budnicks]

That's too bad I was kind of jonesing/anticipating to hear & see what she ran too

there's always the next race or next day

good luck either way



[68 HEMI GTS]

That's too bad I was kind of jonesing/anticipating to hear & see what she ran too

there's always the next race or next day

good luck either way

me too!



[69 GTX]

Me 3



[actionange1]

Looks great a nice clean installation.
One thing I noticed is the fuel regulator on the firewall?
That needs to be mounted at least 6 inches forward of the firewall/bellhousing area as per the NHRA rulebook.



[MOPOWER871]

Sweet Mike, good luck



[Mike Gaines]

Looks great a nice clean installation.
One thing I noticed is the fuel regulator on the firewall?
That needs to be mounted at least 6 inches forward of the firewall/bellhousing area as per the NHRA rulebook.

Thanks for the info....before I run my next NHRA race event I will relocate it.
