69 Charger Accessory Wiring Diagram Needed

[pnora]

Two for sure on the right.



[bowtiedoc]

I assume I should have 2 on each side. The wire I am holding must go to the right then?



[pnora]

I assume I should have 2 on each side. The wire I am holding must go to the right then?

Thats what I told you a while back. 3 yellows go to the right but only 2 spades. The one goes in in the barrel style jumper



[bowtiedoc]

ok, I think I'm getting close.

Female spades 1 and 2 go to the right side, 3 & 4 to the left. I have female spade 1 attached to the split for the console wiring. The male butt should go to female butt 2 and the wire from the main harness goes to female butt 1. Is that correct?



[pnora]

ok, I think I'm getting close.

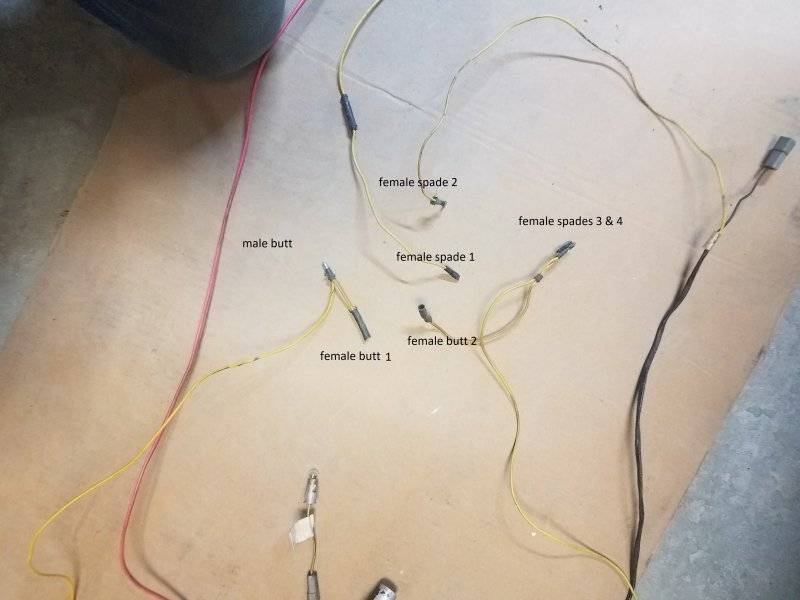

View attachment 1465641
Female spades 1 and 2 go to the right side, 3 & 4 to the left. I have female spade 1 attached to the split for the console wiring. The male butt should go to female butt 2 and the wire from the main harness goes to female butt 1. Is that correct?

It kind of only works one way. So if it all lays out with the right connectors you should be ok.



[bowtiedoc]

Thanks, I just have to figure out how to get spade 2 to the right side now.
