70 roadrunner air grabber switch

[68 440+6 R/T]

On a 70 roadrunner how was the air grabber switch mounted to the dash? I know that in 1970 on rallye dash's there was an oval stamped into the dash for the revers warning light on 4 speed cars. Did they use the same hole for the air grabber switch or did they stamp another hole in the dash just for air grabber cars?



[QuickBpBp]

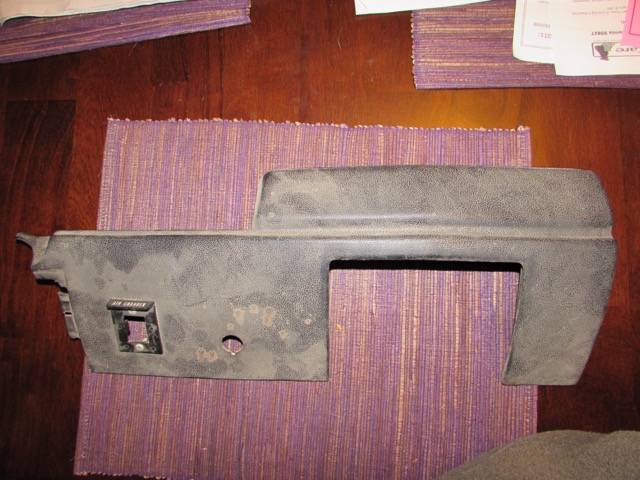

This should help. Not the same hole. Here is a Factory 4 speed Air grabber panel..
70 Roadrunner/GTX Dash Lower Trim Panel For Air Grabber Car - Moparts Forums



[68 440+6 R/T]

This should help. Not the same hole. Here is a Factory 4 speed Air grabber panel..
70 Roadrunner/GTX Dash Lower Trim Panel For Air Grabber Car - Moparts Forums
View attachment 1129140

does the air grabber switch screw into to screws holding the bezel on? Or is it screwed in separately



[QuickBpBp]

does the air grabber switch screw into to screws holding the bezel on? Or is it screwed in separately

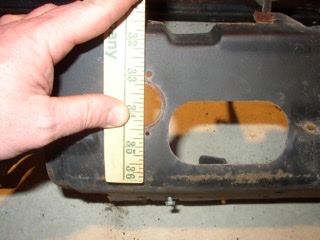

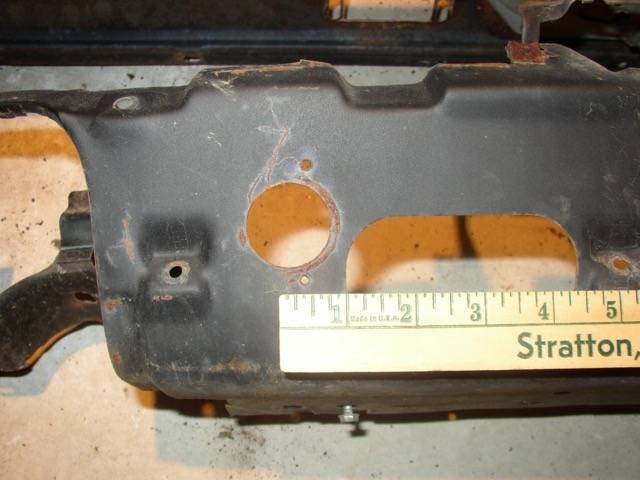

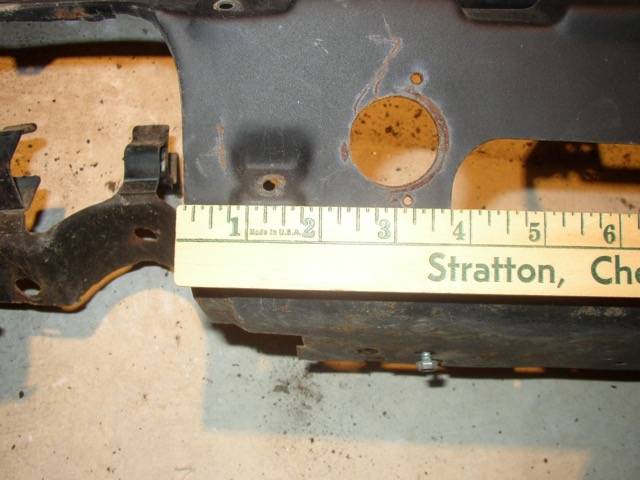

Don't know exactly but I think you cut a hole in the steel frame and the switch screws to that then the bezel goes over that.. The switch needs to be installed the right way I think "up" is open.. I know The 4 speed light just gets a nut on the backside (no screws) and the 4 speed light has a special wire harness with a ground wire on it since the panel is plastic...



[493 70 Runner]

If need more information.
