74 charger inside dash images needed

Hijinx

Well-Known Member
Local time
3:16 AM
Joined
Mar 5, 2018
Messages
222
Reaction score
76
Location
New Jersey
Hope you all had a great thanksgiving... I lost the images i took of my dash... wondering if anyone has a few pics they can share of the bracket locations, ash-tray, glove box areas.. anything would be great... want to make sure i put it back as close to what it was as possible.

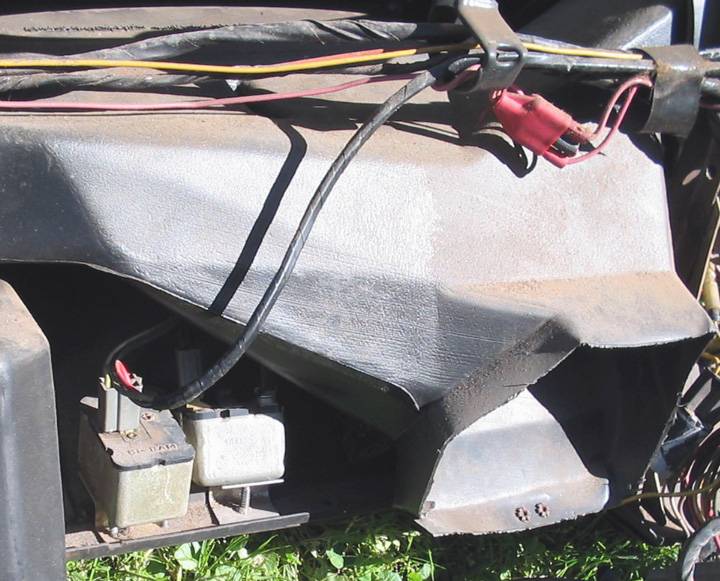

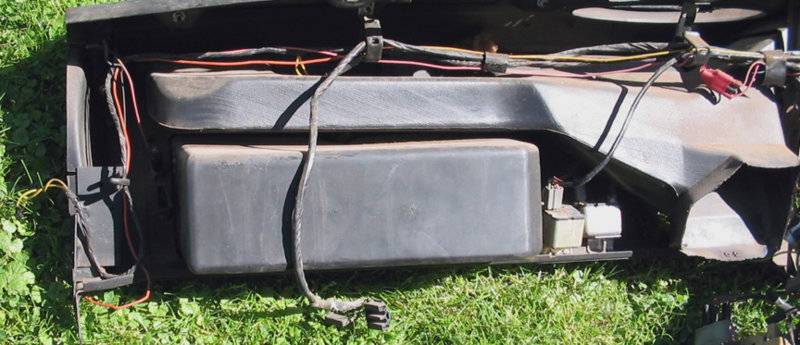

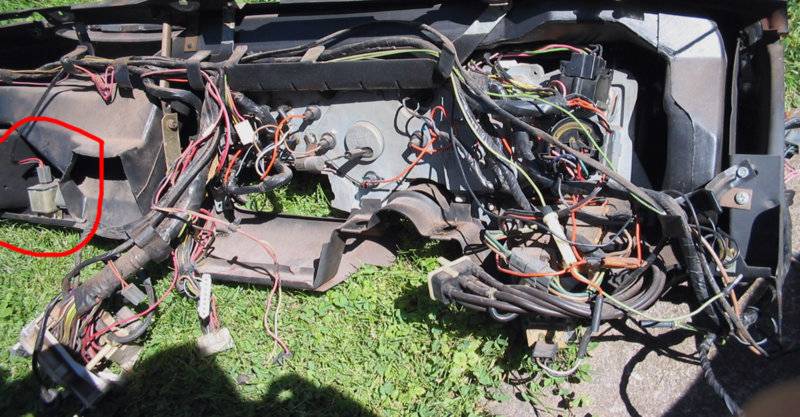

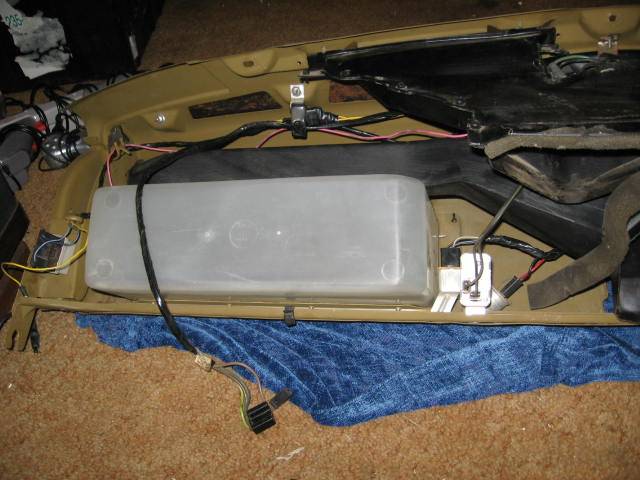

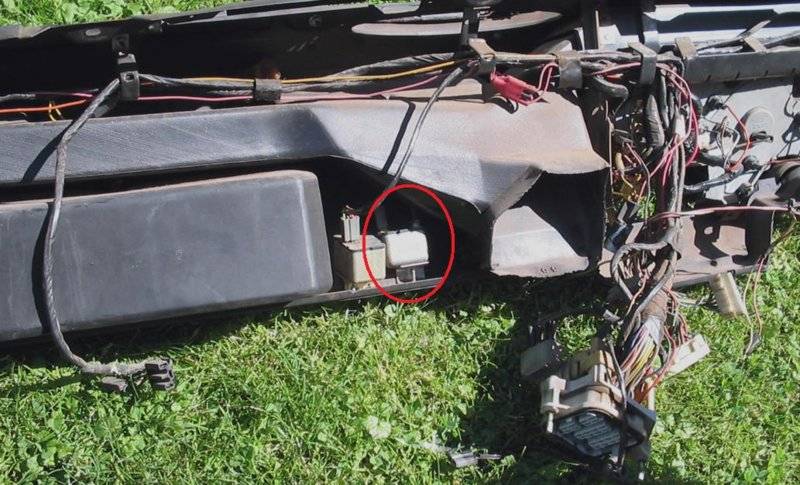

Despite all marks, boxes, etc... I have used these pics to label several stuff on several years to help on several boards. All 71/74 dashes are practically the same on brackets setup. If I find more, will post

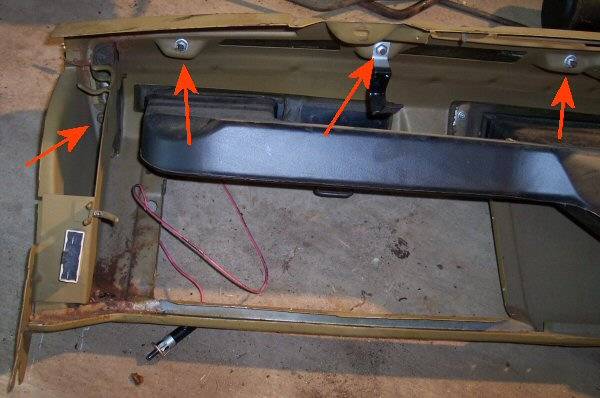

back dash frame.jpg

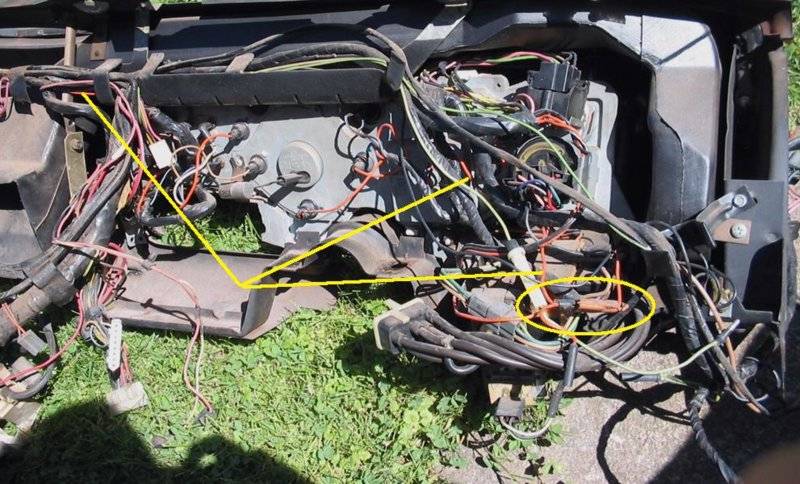

dimmer source and wire running.jpg

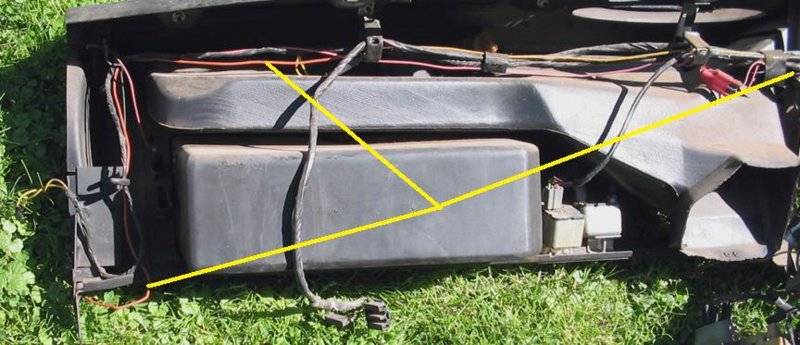

dimmer source and wire running1.jpg

thanks everyone, got enough to work it out... great help!
