8 3/4 axle chart - the good one Sticky please?

[khryslerkid]

What is a sticky??? like a wedgy but harder to reach?

I have heard the term before...

A "Sticky" is a thread worthy of posting to the top of all threads related to the particular forum. A thread with valuable information on the subject.

For example, open this forum and notice the stickys at the top.
https://www.forbbodiesonly.com/moparforum/forums/engine-trans-driveline.20/



[Bold & Old]

A "Sticky" is a thread worthy of posting to the top of all threads related to the particular forum. A thread with valuable information on the subject.

For example, open this forum and notice the stickys at the top.
https://www.forbbodiesonly.com/moparforum/forums/engine-trans-driveline.20/

cool.... thanks for the definition update.



[khryslerkid]

May I add this link. More info on the 8 3/4

http://www.bigblockdart.com/techpages/875axle.shtml

Since the above link doesn't exist anymore...
http://www.moparts.org/Tech/Archive/axle/16.html
Same as MoparMarks posted in post #2



[Cranky]

And it should be kept in mind that these charts should be used as a guide and are not gospel. The measurement tolerance is 1/4" and sometimes more. I've found several over the years that were within 1/2" in the length.....but the spring pads are usually much better.



[Dipstick]

1/4" or 1/2" tolerance? Sorry, I gotta call BS on that. If an axle was that far off, it wouldn't fit in the housing and if the housing was that far off the axle wouldn't fit.

If your measurement is that far off, you're misidentifying the part.



[rrTor-Red]

I think this is the correct one. If posted before, sorry



[khryslerkid]

I think this is the correct one. If posted before, sorry

View attachment 1087340

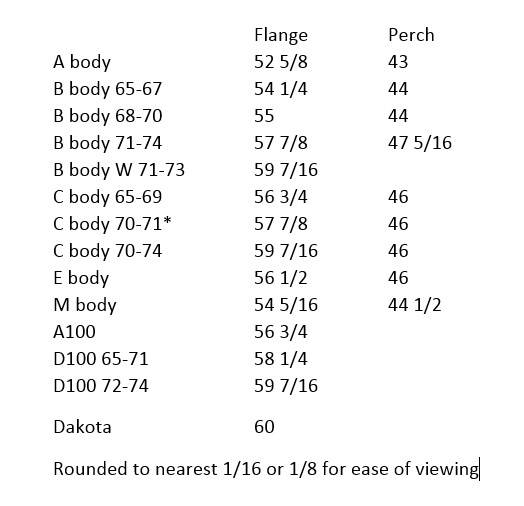

This chart doesn't show 1962 to 1967 that there is three different widths. Too many incomplete or wrong info charts out there. That's why I posted the correct one as posted earlier in post #2.



[Dipstick]

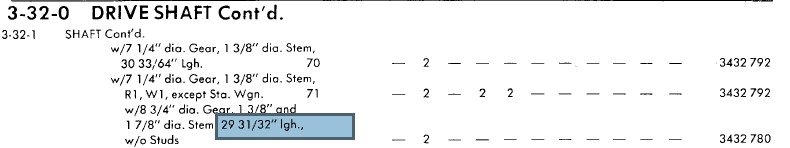

The list in post #2 is close to dead on, the only discrepancy that I've found is the 30" axle shaft. It lists a 30" axle and a 29 31/32" axle but there is only the 29 31/32" axle used on the C & E-body and truck. All even have the same part number. The error comes about because of the method of measuring.



[wagonman]

As a Side note , the a-body 8 3/4 was a direct bolt in for the 66-67 Chevy Nova and wagon. Better than the 10 bolt and hence their attrition. Start looking under old Novas Ya.



[Wyatt]

Thank you, 'moparmarks'!

So, per moparmarks, here's what I'm looking at:

Rear end widths, drum-to-drum: '64 = 60 7/8" (Exc.Max Wedge)
Housing widths, flange to flange: '64 = 55 5/8" (Exc. Max Wedge)
