megaivtes
Well-Known Member
been awhile since pulling a trans.
have driver side long tube header loose, starter removed, driveshaft removed.

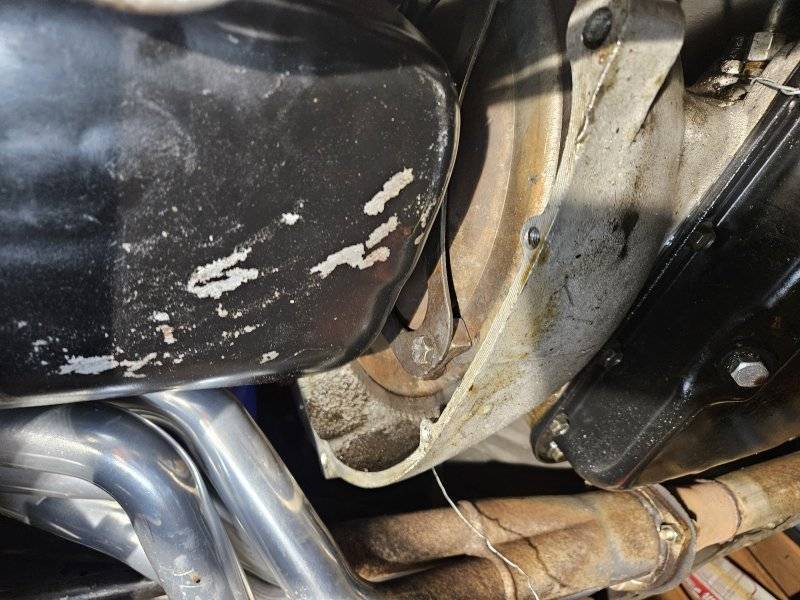

Check me on next steps, rotate engine to get converter drain to 6 O'clock, drain. Paint one of the bolts to allow future assembly. Rotate engine and remove converter bolts.

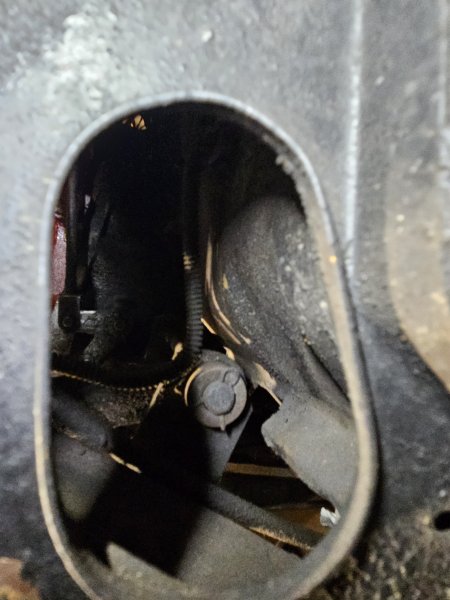

disconnect clips and pull shaft thru access hole in frame

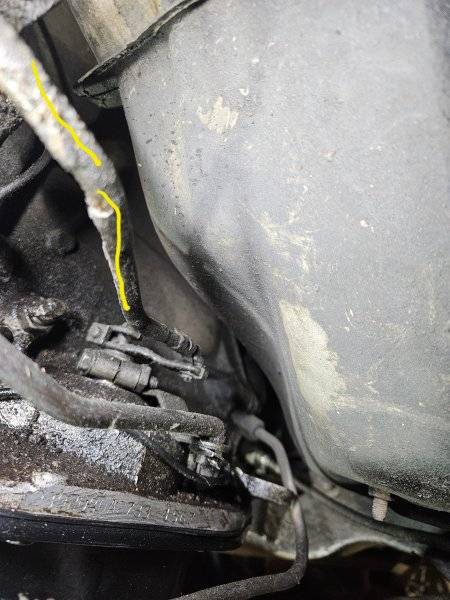

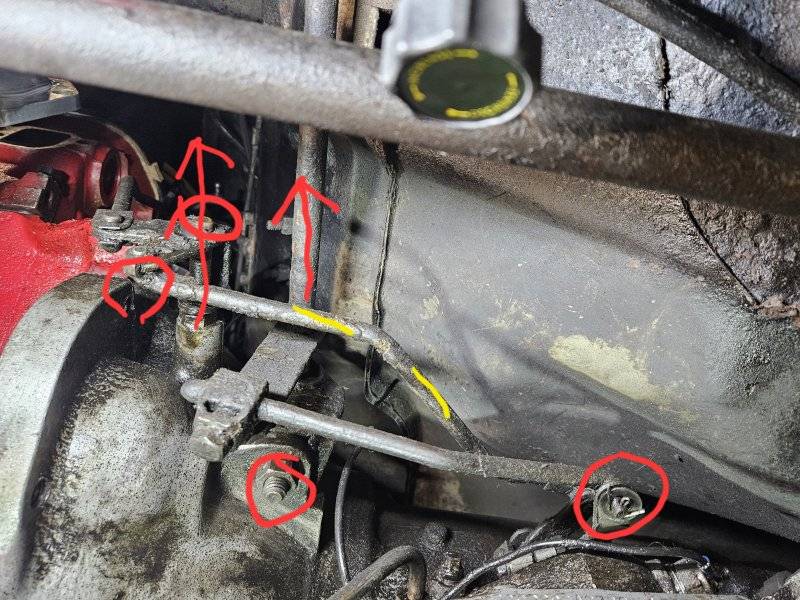

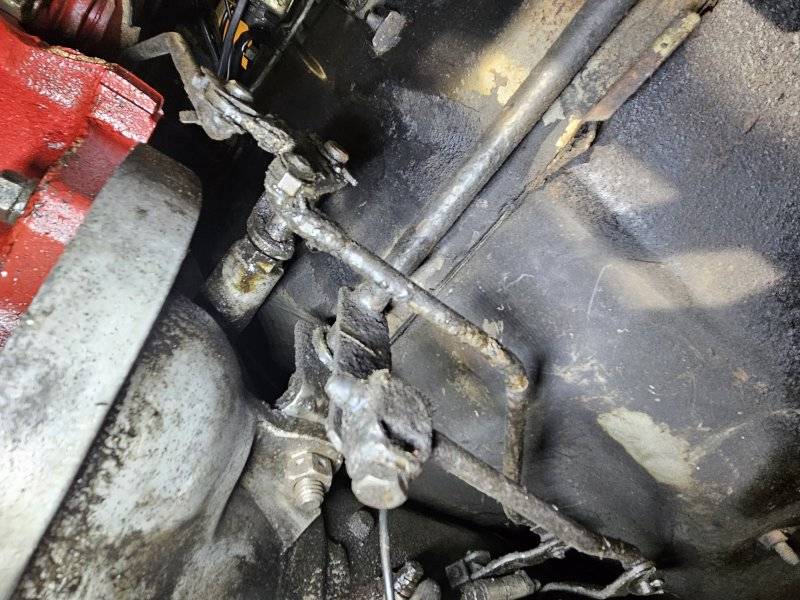

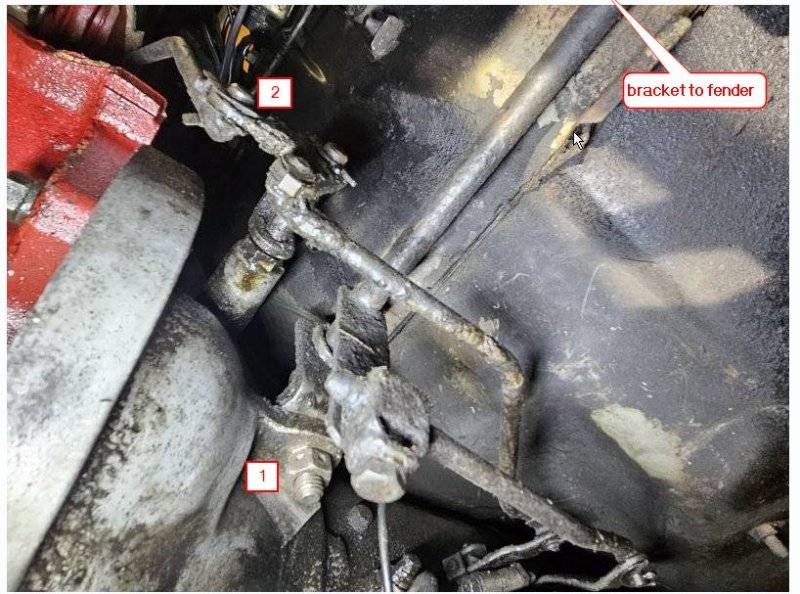

disconnect trans lines, speedo, etc
Support engine.
remove trans mount while supporting trans
remove final bellhousing bolts
pull trans back, secure converter, lower trans.
have driver side long tube header loose, starter removed, driveshaft removed.
Check me on next steps, rotate engine to get converter drain to 6 O'clock, drain. Paint one of the bolts to allow future assembly. Rotate engine and remove converter bolts.
disconnect clips and pull shaft thru access hole in frame
disconnect trans lines, speedo, etc
Support engine.
remove trans mount while supporting trans
remove final bellhousing bolts
pull trans back, secure converter, lower trans.
