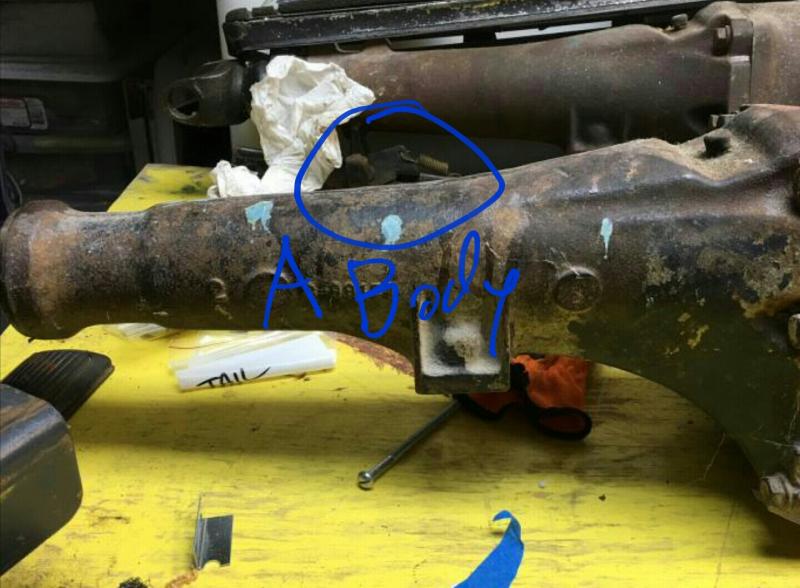

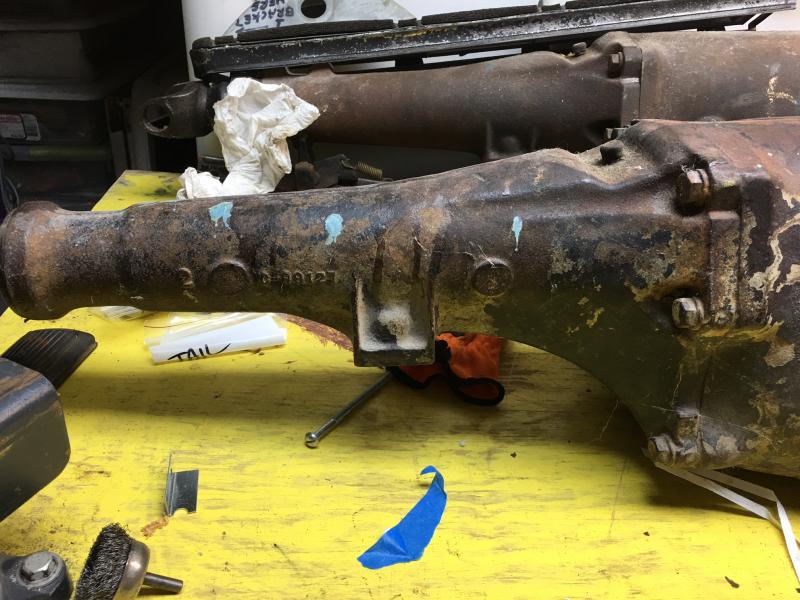

Hi. I've had this tranny for 30 years. Think it's for a B-Body. Casting date on tail housing is March 1968. Can someone please tell me vehicle type this goes in based on the picture, especially the crossmember location. Know it's not an E-Body.

Thanks.



[69Bee]

Looks like an A-body short tailshaft. A close-up of the vin pad will tell what it came out of.



[moparsteve636]

It's a 68 or later gearbox pad on the side should have a serial number to show what it was in originally!



[Shorthorse]

http://www.brewersperformance.com/



[the mississippi madman]



[doubleyellow]

Thanks, but it is the same overall length as an e-body, and what I read it says B-Body was same length in the 68/69 years. I am adding the numbers from the trans to hopefully finalize if A or B body:
3/23/68 cast date
VIN 9A300190 (maybe the A is a clue?)(or is the A showing Lynch Road assembly?)
pp833 2382 0266

Thanks



[69Coronetrt]

....
VIN 9A300190 (maybe the A is a clue?)(or is the A showing Lynch Road assembly?)
pp833 2382 0266

Thanks

I track 69 Lynch Road built cars. I have a list that shows it's out of RM23H9A300190. My reference is incomplete but the car may still exist.

2382 = Sunday, Feb 4, 1968 in 10,000 day calendar.

The SPD on 300190 would be about mid June of 1969 making a 10,000 calendar date of 2882 (Wednesday, June 18, 1969) more plausible. Are you sure the second digit is a 3 and not an 8?



[doubleyellow]

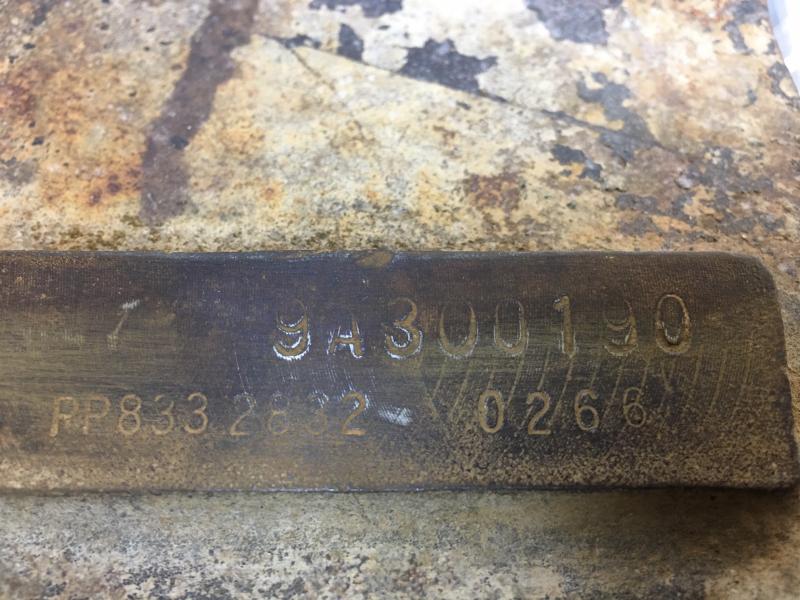

Here is pic of pad. Definitely 2832. Is this from an A or B Body?

I would love to get this back to the original owner......bought it in 1990 at Mopar Nationals. What forum to use to find the owner of the car?



[69Coronetrt]

The VIN appears to be from a Road Runner built ~6/18/1969.

2832 = Tuesday, April 29, 1969 which would work well with a mid June build.



[Shorthorse]

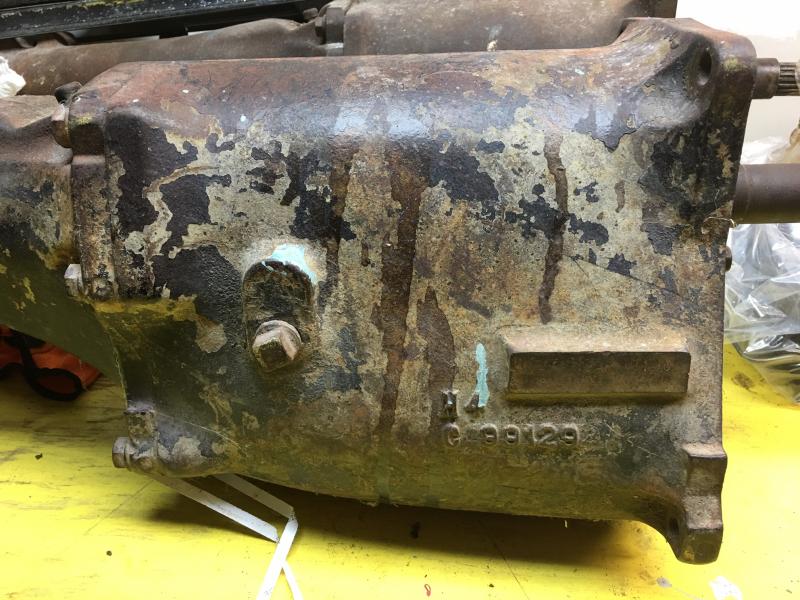

If I read the tailshaft number right it's C99127.

Brewer's - "Extension housing casting number C-99127 for 1969 B-body transmissions with 30 spline output/307 bearing."
