Air Grabber Actuator Spring

[nakabrd]

Does anyone have a picture of where the assist spring for the actuator attaches on a '71 Road Runner air grabber. Thanks



[RJS]

View attachment 117467Yep



[nakabrd]

Thanks RJS. I've seen this diagram before but can't see exactly where the spring attaches. I was hoping for a picture that shows a close up of the attach points.



[RJS]

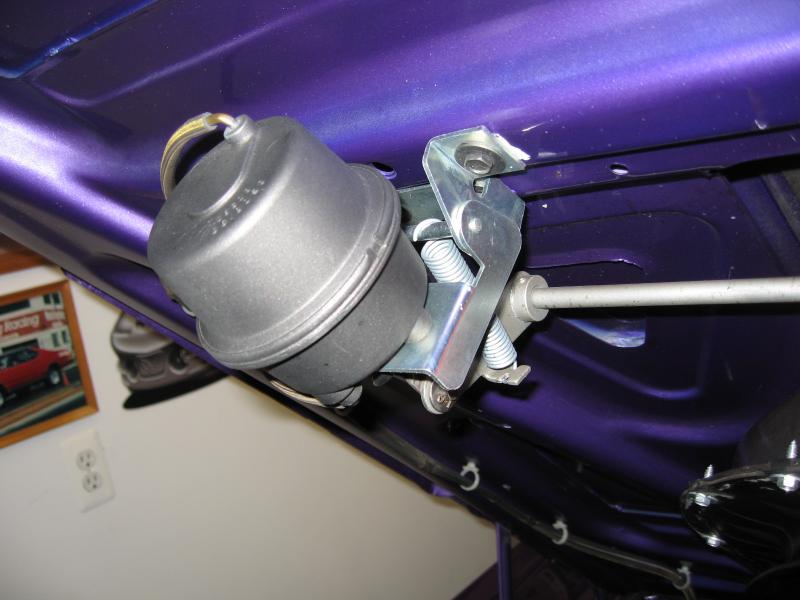

I took a picture for you...



[nakabrd]

Perfect. Thanks RJS.



[Photon440]

Thanks RJS. I've been looking for a diagram like that. (Thanks nakabrd for the original question

The 1970 shop manual incorrectly shows a 1969 air grabber system, this is as close as I've seen so far.
