alternator mounting

[Mike Szadaj]

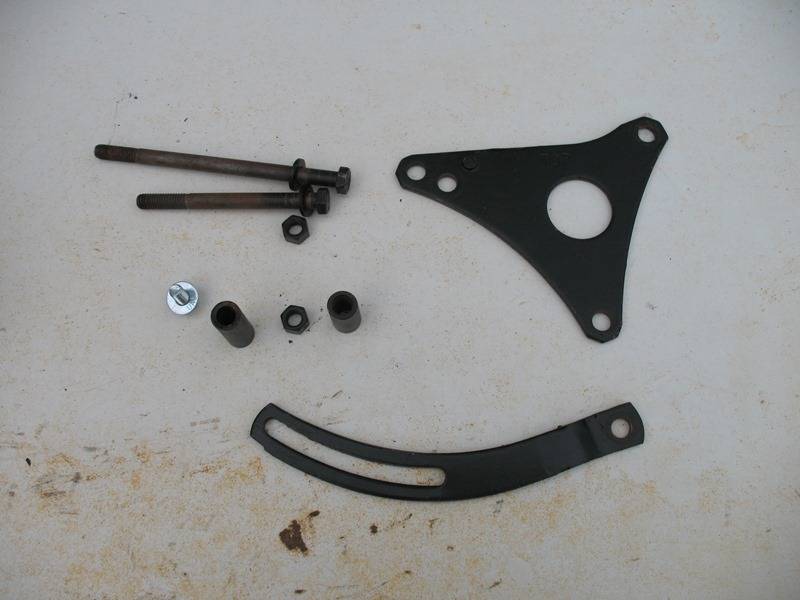

Can someone enlighten me by schematic or pictures or ESP how these brackets go together to mount the alternator on a 440? They came off the engine I am putting back together.



[JimCoronette]



[dadsbee]

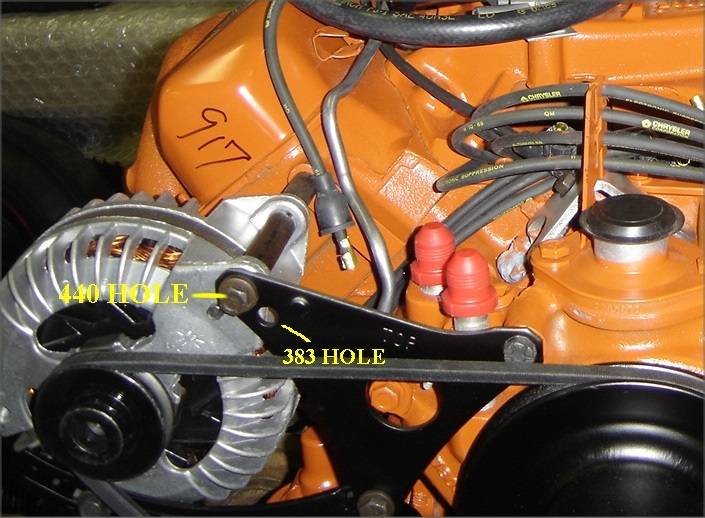

Only difference.. you use the upper hole as Jim showed.



[Mike Szadaj]

Thanks a lot. One more question. Is there a spacer that goes on the bolt you have marked "440 HOLE" and fits between the ears on the alternator?
Thanks again.
Mike



[Mike Szadaj]

OK I lied. Another one. Does the long piece with the adjustment slot go in front or behind the triangular shaped bracket?



[TN Mopar]

there are 3 spacers used
The one between the ears of the alternator
One behind the alternator
and one behind the adjustment bracket at the water pump

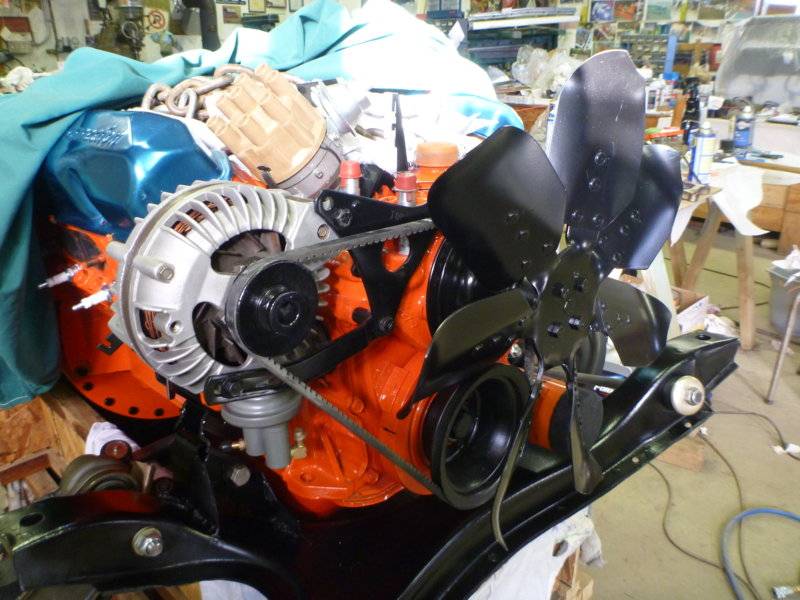

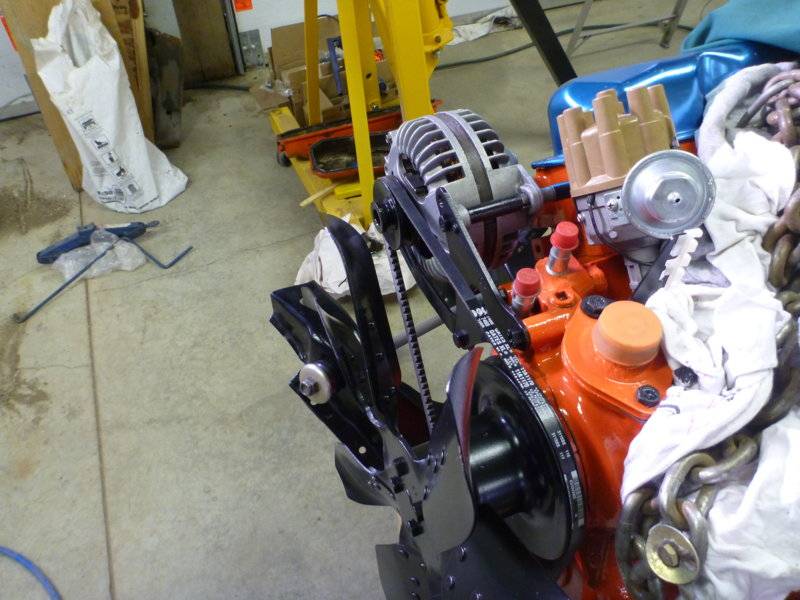

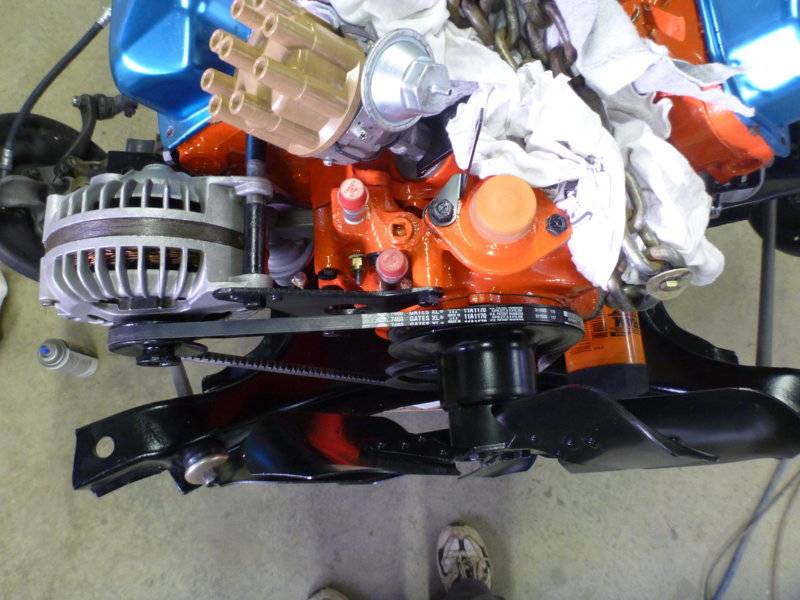

They are all visible in dadsbee's photos



[TN Mopar]

OK I lied. Another one. Does the long piece with the adjustment slot go in front or behind the triangular shaped bracket?

Behind with a spacer behind it



[Mike Szadaj]

Thanks to all. Got it on, but that spacer in between the ears is currently lost in the Black Hole.
