Body panel location exploded view(s)

[Dragonlines]

Anyone know where you can get an exploded view of the B body parts, 68 Charger specifically. AMD used to have it on their site but can't find it now. It helps to make sure I'm not missing something.



[BeepBeepRR]

I assume you do not have the shop manual. So here is a link to the 69 Charger they didn't have one for the 68. In the PDF you should find exploded views of specific areas of the body and parts.

https://www.mymopar.com/downloads/servicemanuals/1969_Charger_Coronet_Dart_Service_Manual.zip

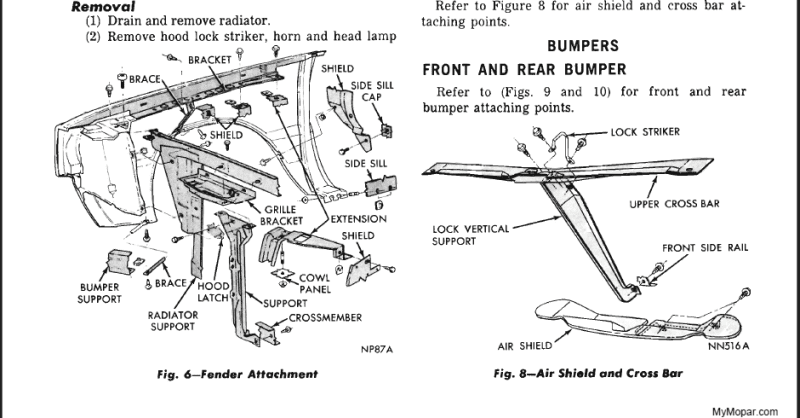

In the pages they have drawings that look like this.



[Dragonlines]

I assume you do not have the shop manual. So here is a link to the 69 Charger they didn't have one for the 68. In the PDF you should find exploded views of specific areas of the body and parts.

http://[URL]https://www.mymopar.com.../1969_Charger_Coronet_Dart_Service_Manual.zip

[/URL]

In the pages they have drawings that look like this.
View attachment 1726607

Thank you. I do have the manual but it doesn't have these views.



[BeepBeepRR]

Starts in section 23 in the manual.
