yes i need a photo or diagram on converting my 1965 belve over from points electronic bought a complete new dist set up but no instruction
it is a mopar converstion
thanks
mccauley117@msn.com

the only issue i can think of is a 12 volt source for the blue wire. i tapped into the 12v side of the ballast resistor. the rest is simple. the black wire goes to the negative side of the coil and the plug in to the distributor. i also run a ground wire off the control box to the engine. the box won't work if not prop[erly grounded.


Attachments

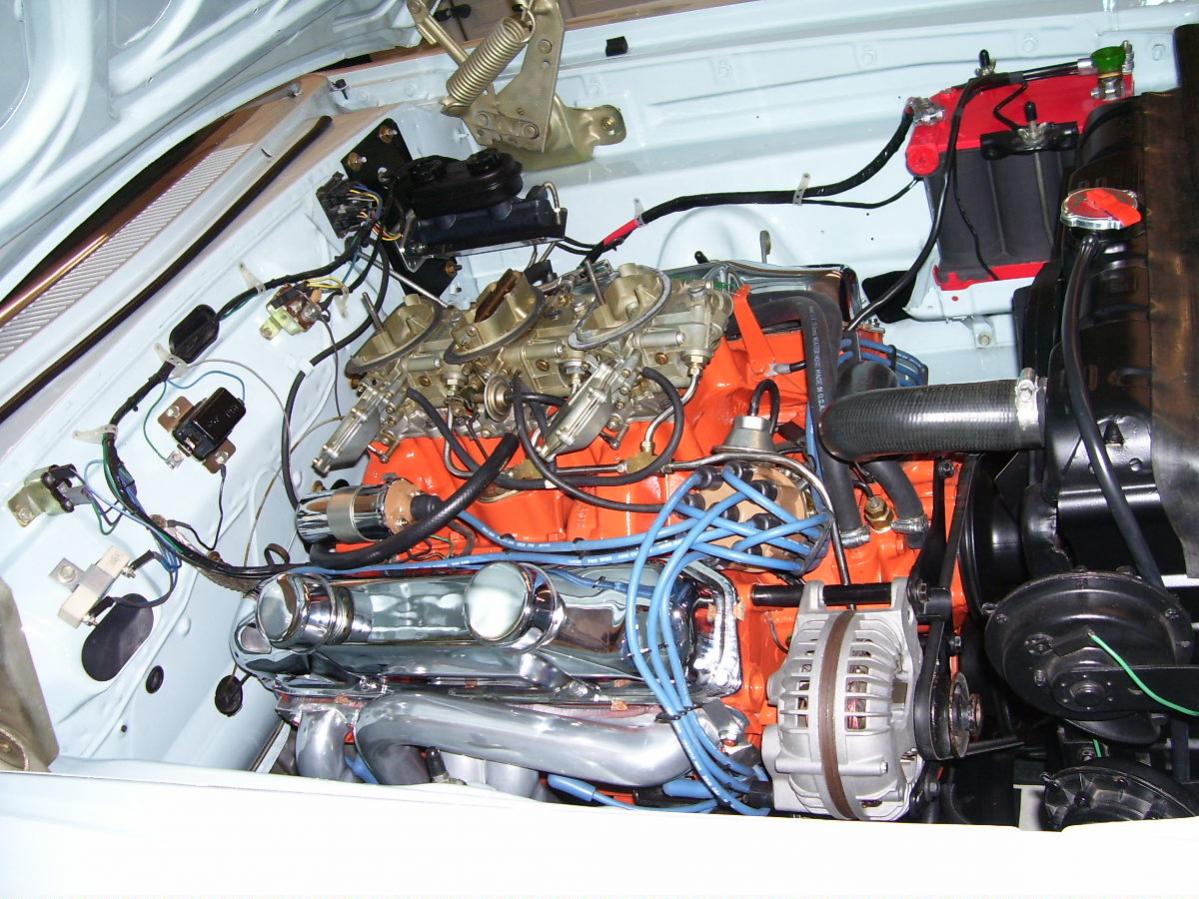

  • 100_0128.jpg
    181.5 KB · Views: 201
something i left out. there is a greenish wire with a red tracer. snip it off and discard.

I would like to emphasize the need to ground the box or it will not run...........
